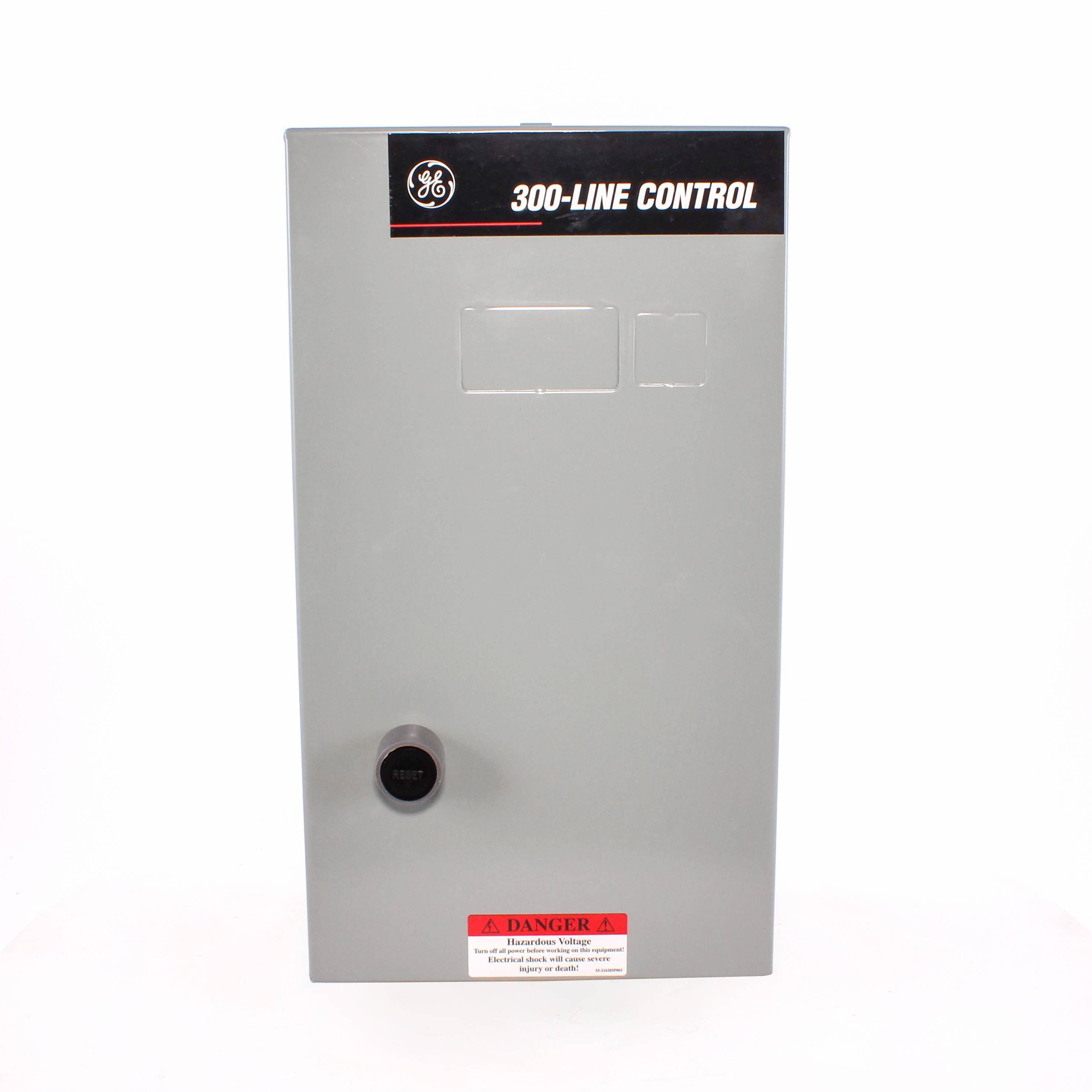

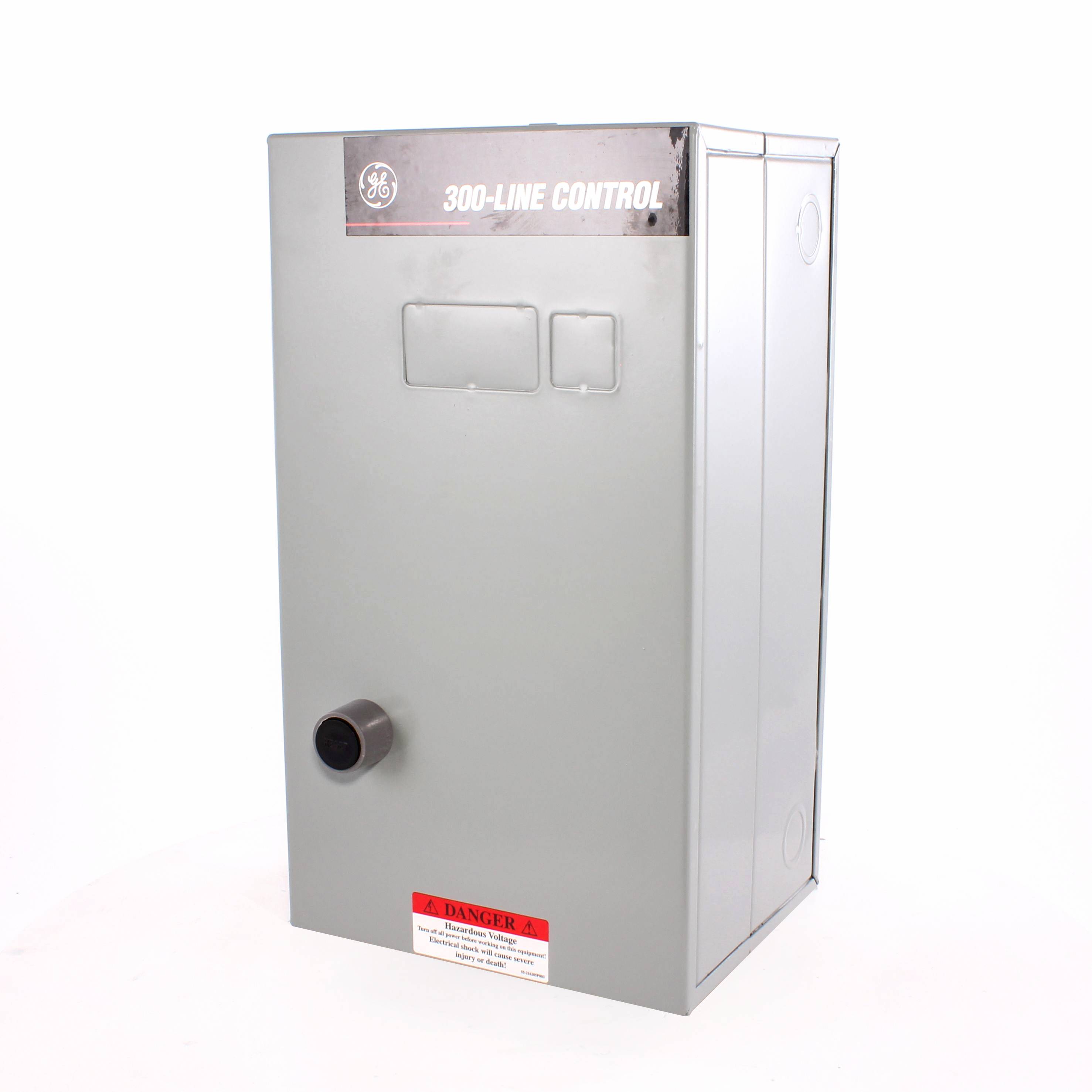

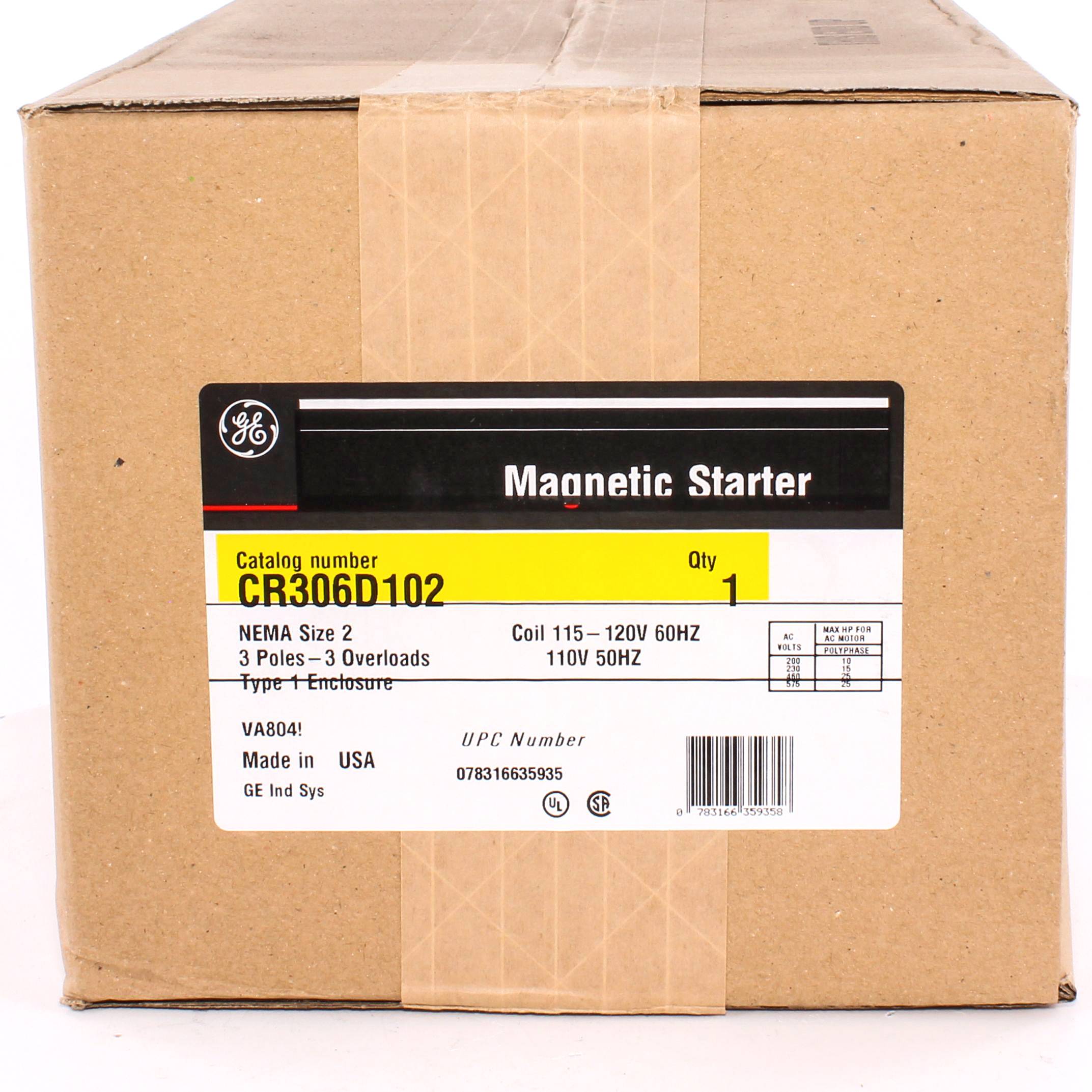

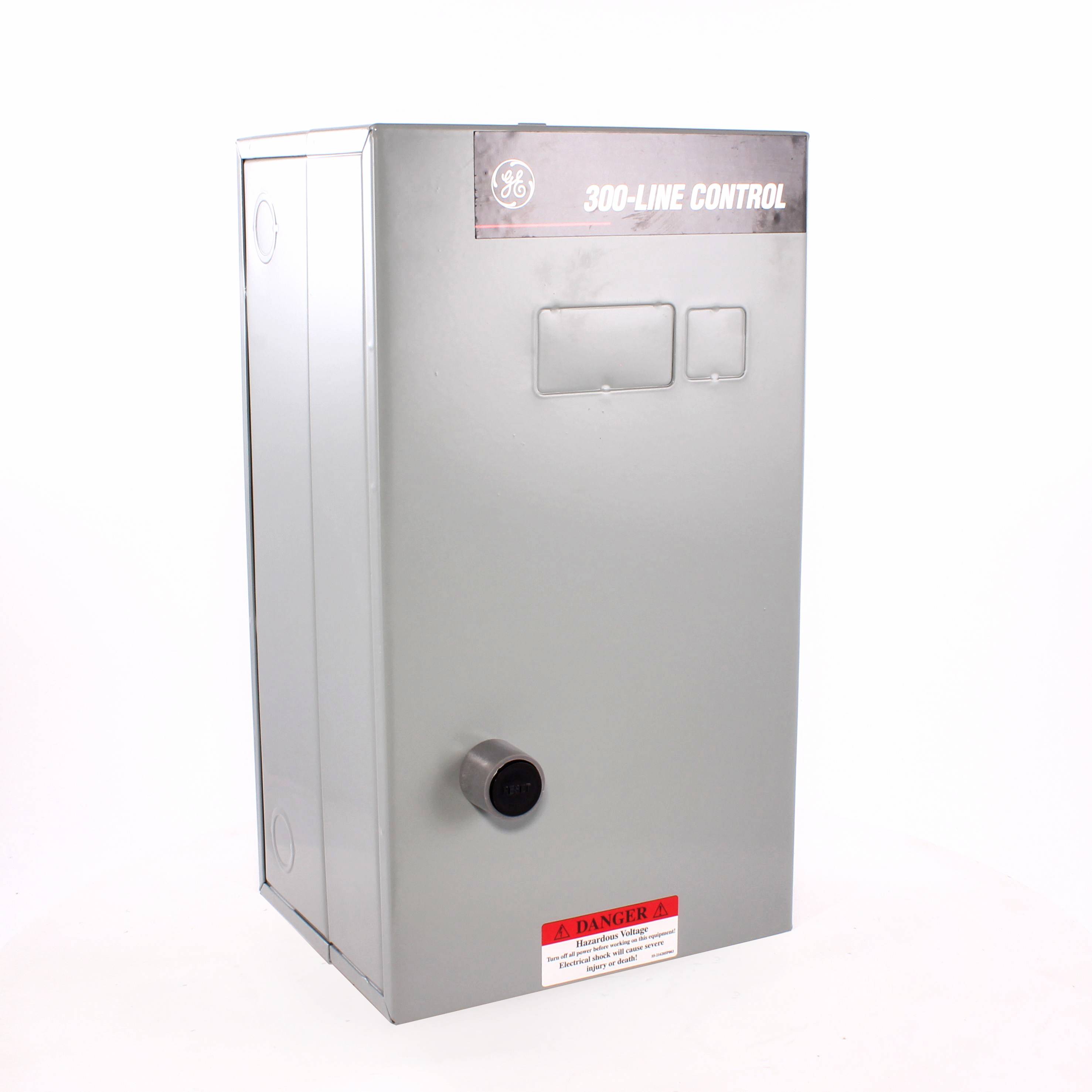

GE CR306D102 300 Line Full Voltage Non-Combination Non-Reversing NEMA Magnetic Starter, 115 to 120 VAC V Coil, 3 Poles, NEMA 1 Enclosure

Short Description

Experience reliable performance with the GE CR306D102 Magnetic Starter, designed for 115 to 120 VAC applications. Its robust NEMA 1 enclosure and manual reset feature ensure safety and efficiency in any setting.

GE NEMA Magnetic Starter, Full Voltage Non-Combination Non-Reversing, Series: 300 Line, 600 VAC, 45 A, 50/60 Hz Frequency, 115 to 120 VAC Coil, 3 Pole, Manual Reset, 3 ph, Saddle Clamp Connection, 3-Leg Block/Thermal Overload Relay, NEMA 1 Enclosure, -20 to 70 deg C Operating, 16 in L x 8-1/4 in W x 8-1/4 in H Dimensions

MFG #: CR306D102

EECO #: GECR306D102

Brand: GE
UPC #: 783166359358
Attributes
Features
Documents
Product Information
Attributes
Phase
3
UNSPSC
39121521
Reset Type
Manual
Application
Motor Control Centers, Custom Type Control Panels and Switchgear Equipment Applications
Coil Voltage
115 to 120
Enclosure Type
NEMA 1
Overload Relay
3-Leg Block/Thermal
Voltage Rating
600
Connection Type
Saddle Clamp
Frequency Rating
50/60
Operating Temperature
-20 to 70
Type
Full Voltage Non-Combination Non-Reversing
Series
300 Line
Includes
Holding Interlock and Pressure Terminals and 3-Leg Block Type Overload Relay
Dimensions
16 in L x 8-1/4 in W x 8-1/4 in H
Amperage Rating
45
Features
  • Has an encapsulated coil and a 3 leg overload relay to protect against overloads in all phases
  • Tool less contactor disassembly allows quick access for inspection and maintenance
  • Current carrying contact tips are weld resistant silver cadmium oxide
  • Visual trip indicator with manual reset - to avoid surprise restarts
  • Manual weld check provides a convenient test against welding of overload relay contacts
  • 2:1 adjustable full-load amps with tactile feedback dial
  • Built-in thermal memory to prevent hot motor restarts
  • Protection against complete phase current loss
  • +/- 2% accuracy, +/- 2% repeatability, self powered at 50% of minimum current range
  • Saddle clamp terminal accommodate ring, spade and stripped wire leads and carry permanent stamped in identification
