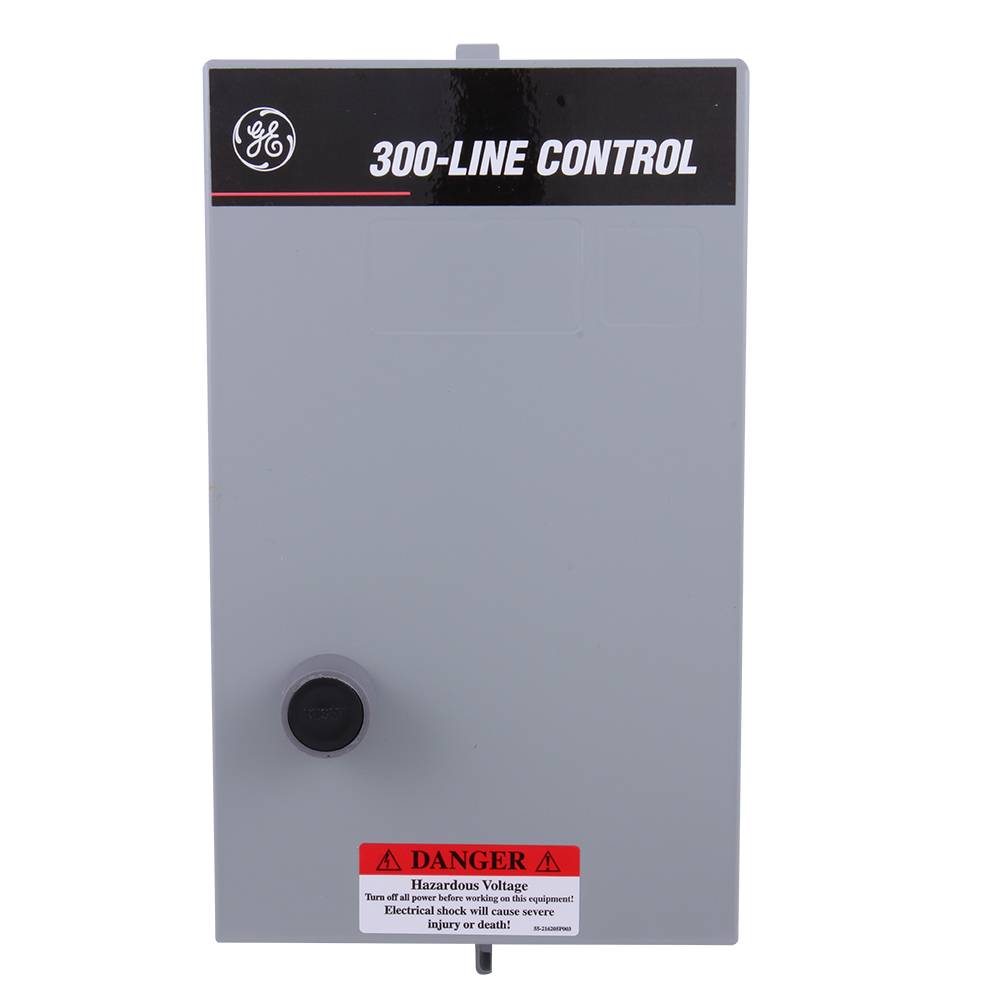

GE CR306C104 300 Line Full Voltage Non-Combination Non-Reversing NEMA Magnetic Starter, 460 to 480 VAC V Coil, 3 Poles, NEMA 1 Enclosure

Short Description

Enhance your motor control with the GE CR306C104 Magnetic Starter, designed for reliable performance in demanding environments. This robust NEMA starter features a 460 to 480 VAC coil and is perfect for managing 10 hp motors with ease.

GE NEMA Magnetic Starter, Full Voltage Non-Combination Non-Reversing, Series: 300 Line, 600 VAC, 27 A, 50/60 Hz Frequency, 10 hp Motor, 460 to 480 VAC Coil, 3 Pole, Manual Reset, Saddle Clamp Connection, 3-Leg Block/Thermal Overload Relay, NEMA 1 Enclosure, -20 to 70 deg C Operating, 12.88 in L x 6.5 in W x 6.5 in H Dimensions

MFG #: CR306C104

EECO #: GECR306C104

Brand: GE
UPC #: 783166357187
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121521
Reset Type
Manual
Application
Motor Control Centers, Electrical Distribution and Control Applications
Coil Voltage
460 to 480
Enclosure Type
NEMA 1
Overload Relay
3-Leg Block/Thermal
Voltage Rating
600
Connection Type
Saddle Clamp
Frequency Rating
50/60
Operating Temperature
-20 to 70
Type
Full Voltage Non-Combination Non-Reversing
Series
300 Line
Includes
Holding Interlock, Pressure Terminals and Overload Relay
Dimensions
12.88 in L x 6.5 in W x 6.5 in H
Motor Power
10
Amperage Rating
27
Features
  • Has an encapsulated coil and a 3 leg overload relay to protect against overloads in all phases
  • Toolless contactor disassembly allows quick access for inspection and maintenance
  • Current carrying contact tips are weld resistant silver cadmium oxide
  • Visual trip indicator with manual reset to avoid surprise restarts
  • Manual weld check provides a convenient test against welding of overload relay contacts
  • 2:1 adjustable full load amps with tactile feedback dial
  • Built-in thermal memory to prevent hot motor restarts
  • Protection against complete phase current loss
  • +/- 2% accuracy, +/- 2% repeatability, Self-powered at 50% of minimum current range
  • Saddle clamp terminal accommodate ring, spade and stripped wire leads and carry permanent stamped in identification
  • Fast track now starters
  • Enclosure starters
