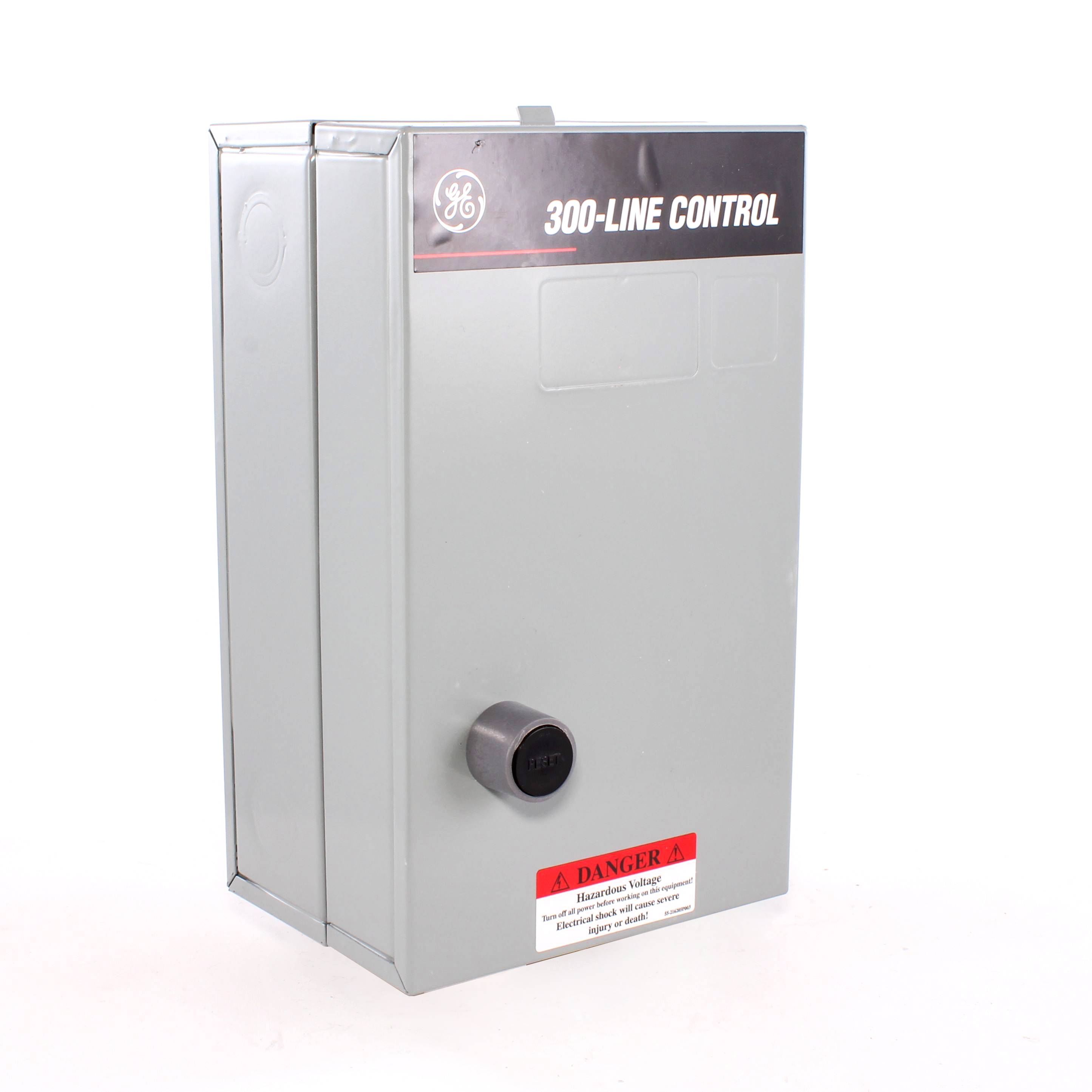

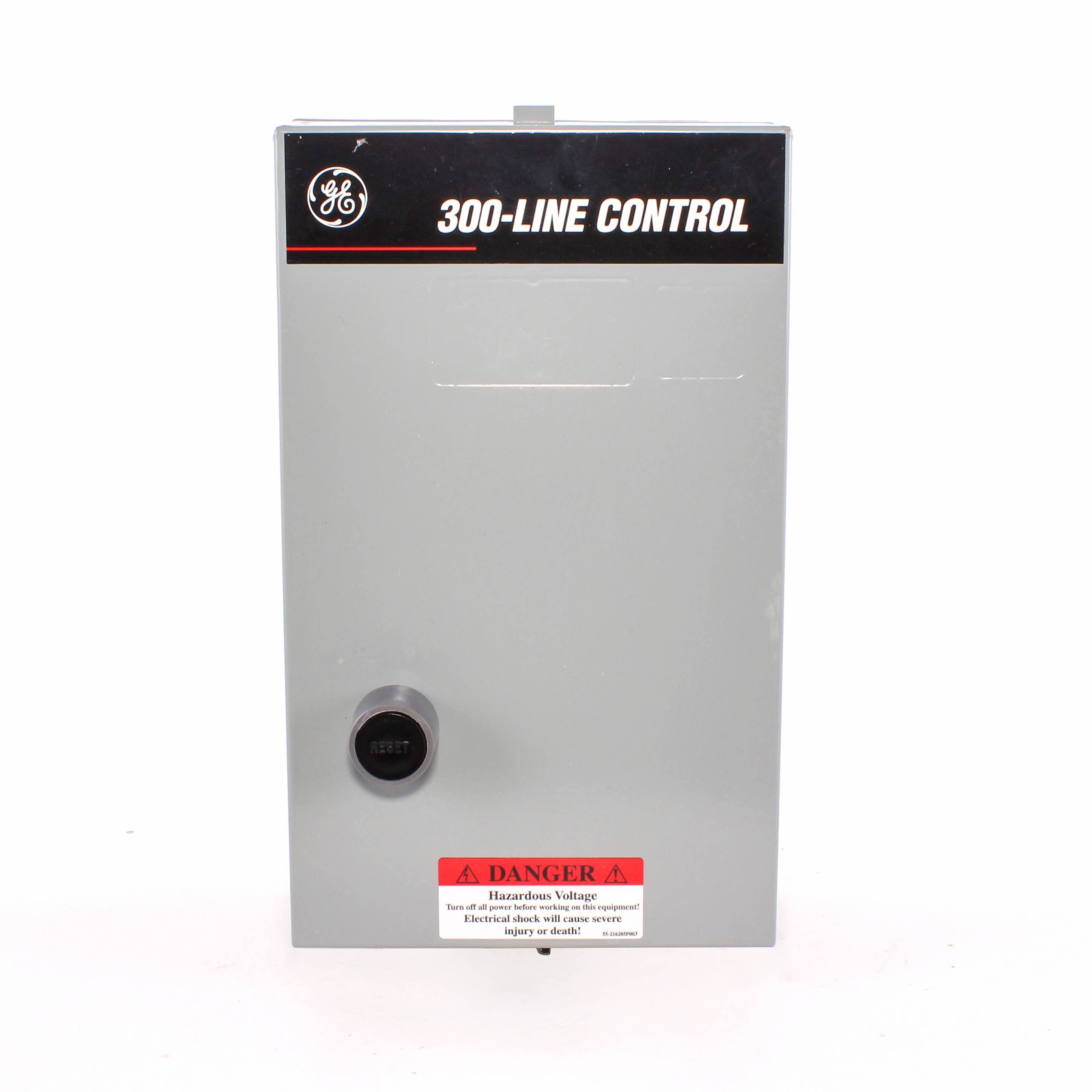

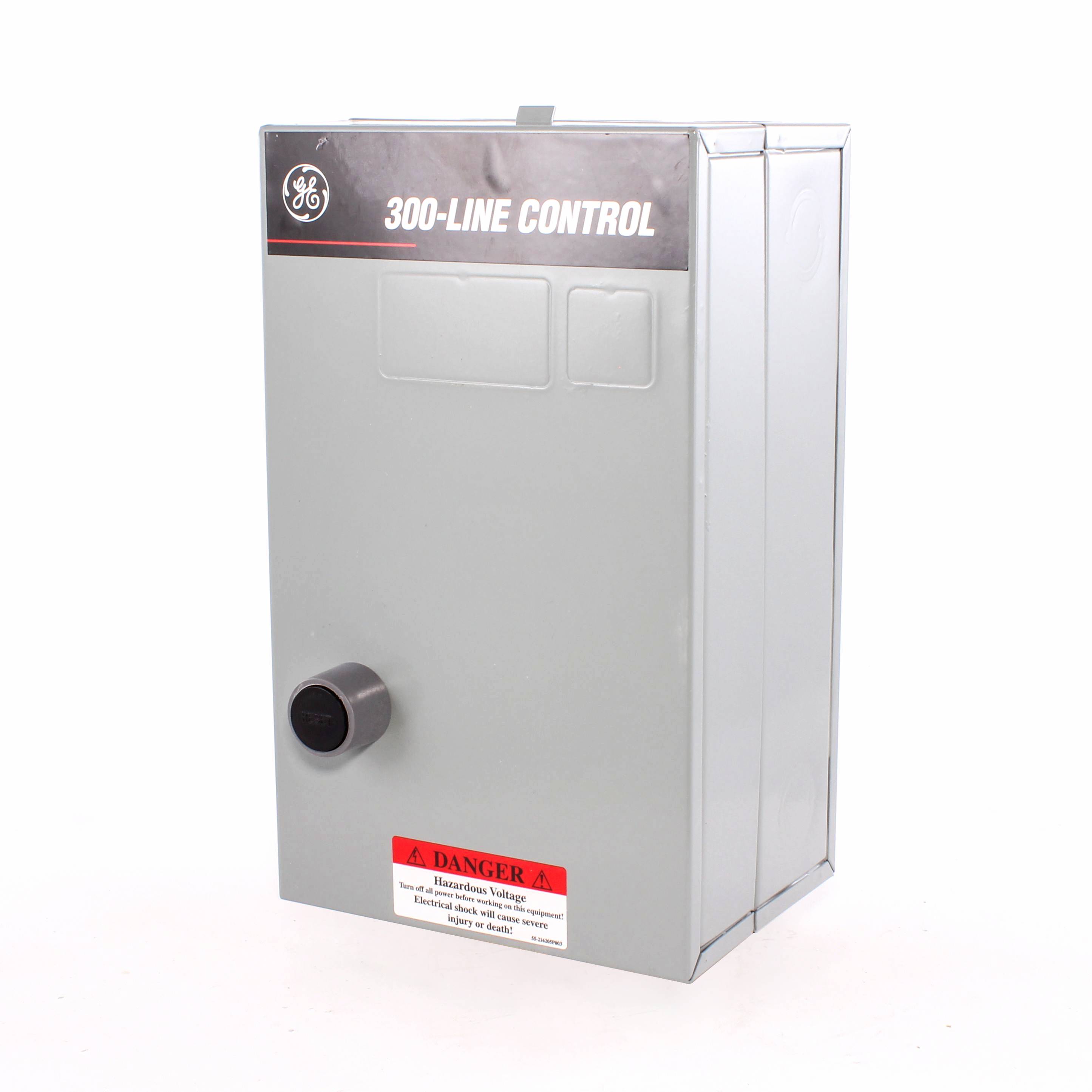

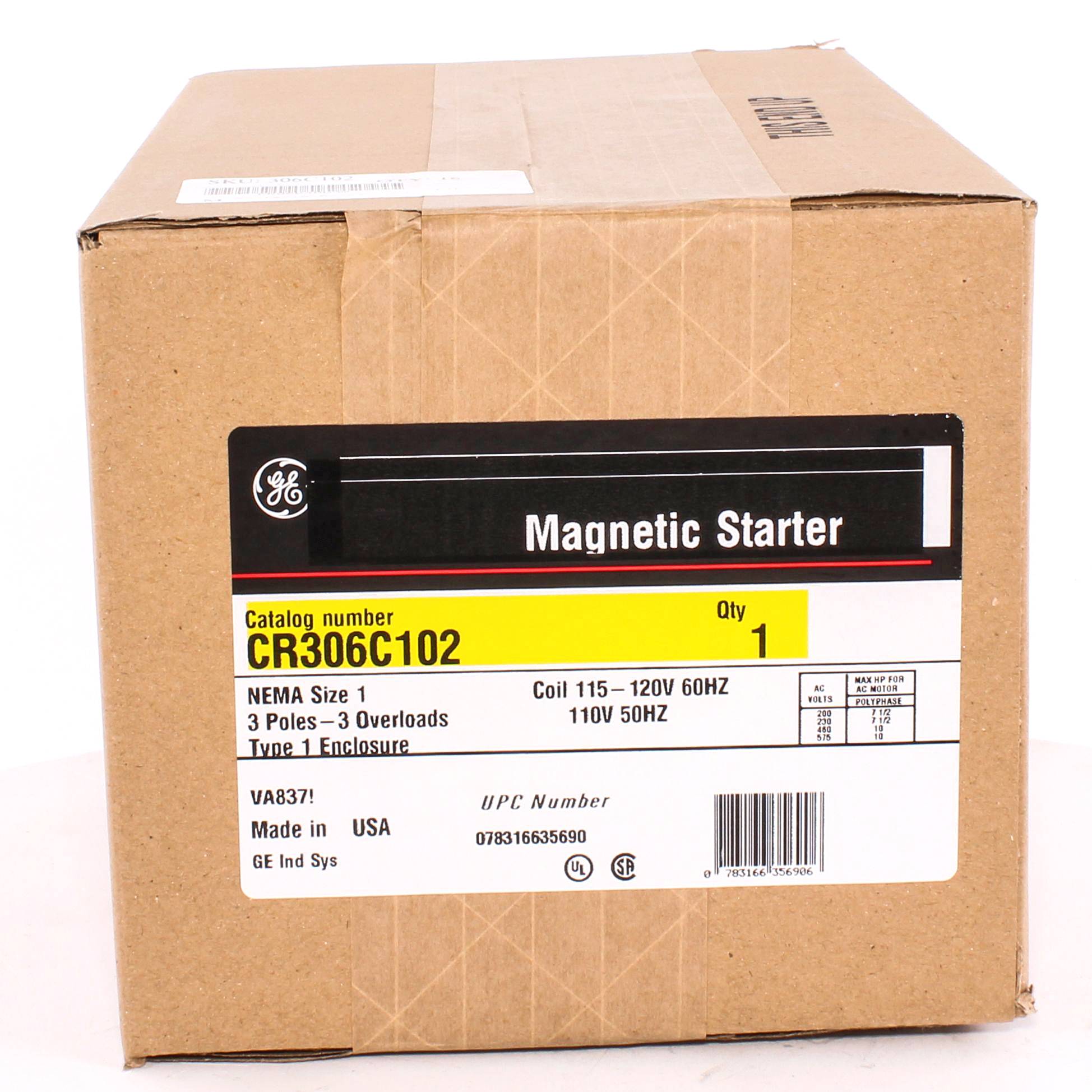

GE CR306C102 300 Line Full Voltage Non-Combination Non-Reversing NEMA Magnetic Starter, 115 to 120 VAC V Coil, 3 Poles, NEMA 1 Enclosure

Short Description

Elevate your control systems with the GE CR306C102 Magnetic Starter, designed for reliable performance in demanding environments. This full voltage, non-reversing starter features a robust NEMA 1 enclosure, ensuring durability and efficiency for your electrical applications.Enhanced by AI

GE NEMA Magnetic Starter, Full Voltage Non-Combination Non-Reversing, Series: 300 Line, 600 VAC, 27 A, 50/60 Hz Frequency, 115 to 120 VAC Coil, 3 Pole, Manual Reset, Saddle Clamp Connection, 3-Leg Block/Thermal Overload Relay, NEMA 1 Enclosure, -20 to 70 deg C Operating, 12-1/2 in L x 7 in W x 6-1/2 in D Dimensions

MFG #: CR306C102

EECO #: GECR306C102

Brand: GE
UPC #: 783166356906
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121521
Reset Type
Manual
Application
Motor Control Centers, Custom Type Control Panels and Switchgear Equipment, Electrical Distribution and Control Applications
Coil Voltage
115 to 120
Enclosure Type
NEMA 1
Overload Relay
3-Leg Block/Thermal
Voltage Rating
600
Connection Type
Saddle Clamp
Frequency Rating
50/60
Operating Temperature
-20 to 70
Type
Full Voltage Non-Combination Non-Reversing
Series
300 Line
Includes
Holding Interlock, Pressure Terminals and 3-Leg Block Type Overload Relay (Manual Reset)
Dimensions
12-1/2 in L x 7 in W x 6-1/2 in D
Amperage Rating
27
Features
  • Has an encapsulated coil and a 3 leg overload relay to protect against overloads in all phases
  • Toolless contactor disassembly allows quick access for inspection and maintenance
  • Current carrying contact tips are weld resistant silver cadmium oxide
  • Visual trip indicator with manual reset to avoid surprise restarts
  • Manual weld check provides a convenient test against welding of overload relay contacts
  • 2:1 adjustable full load amps with tactile feedback dial
  • Built-in thermal memory to prevent hot motor restarts
  • Protection against complete phase current loss
  • +/- 2% accuracy, +/- 2% repeatability, Self-powered at 50% of minimum current range
  • Saddle clamp terminal accommodate ring, spade and stripped wire leads and carry permanent stamped in identification
