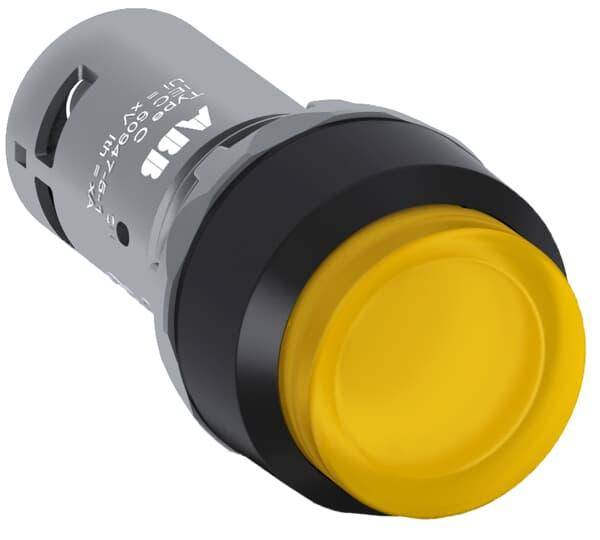

ABB CP1-11Y-10 Compact Pushbutton, 1NO-0NC Contact, Yellow
Share Share Print Print
ABB

ABB CP1-11Y-10 Compact Pushbutton, 1NO-0NC Contact, Yellow

Short Description

The compact range is the most efficient solution reducing both installation time and cost thanks to the all-in-one design. It is perfect for tough environment thanks to the market leading level of dust and water resistance.

ABB, CP1-11Y-10, Pushbutton, Compact, 1NO-0NC Contact Configuration, Momentary Contact Mode, LED Lamp, Bezel/Housing: Black Plastic, Flush Actuator, Screw Terminal, NEMA 1/3R/4/4X/12/13/66/67/69K Enclosure, Yellow, Environmental Conditions: -25 to 70 deg C Operating, -40 to 85 deg Storage
MFG #: CP1-11Y-10

EECO #: GECP111Y10

Brand: ABB
UPC #: 804325537193
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39122216
Lamp Type
LED
Application
Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC and The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits
Operator Type
Push Button
Terminal Type
Screw Terminal
Contact Rating
1 A at 240 VAC/0.3 A at 24 VDC
Enclosure Type
NEMA 1/3R/4/4X/12/13/66/67/69K
Connection Type
Screw Clamp
Actuator
Flush
Contact Configuration
1NO 0NC
Environmental Conditions
-25 to 70 deg C Operating, -40 to 85 deg Storage
Size
0.03 m W x 0.055 m D x 0.03 m H
Type
Compact
Series
Compact
Features
  • Compact Pushbutton
  • Illuminated
  • 1 A at 240 VAC, 0.3 A at 24 VDC/0.2 A 125 VDC
  • 24 VAC/VDC
