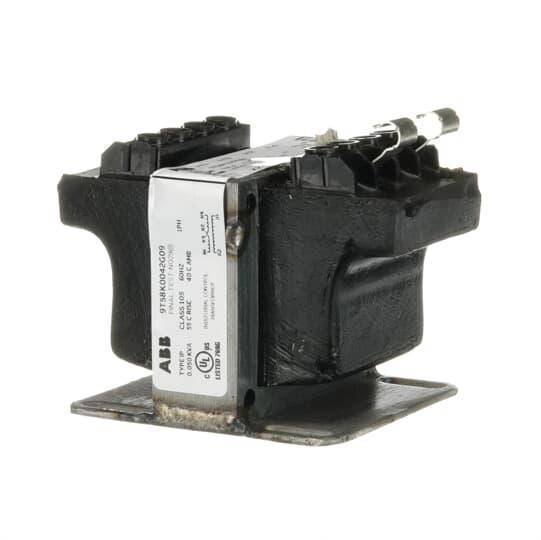

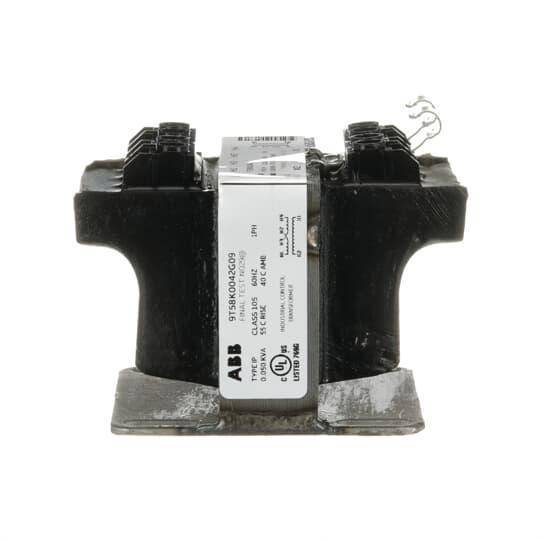

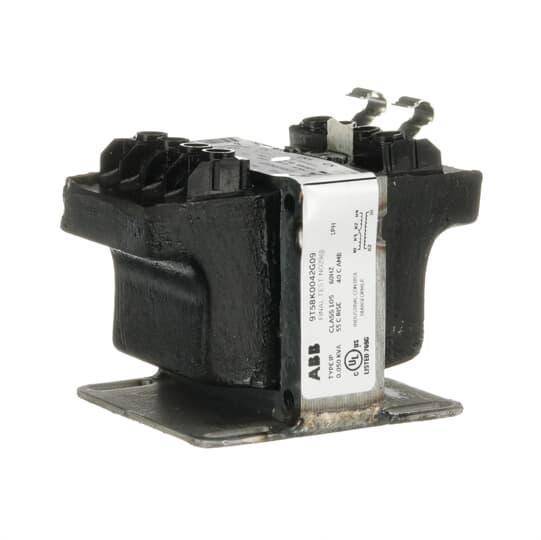

GE 9T58K0042G09 Core/Coil Dry Encapsulated Power Transformer, 240/480 VAC Primary, 110/115/120 VAC Secondary, 0.05 kVA Power Rating, 60 Hz, 1 ph Phase

Short Description

Type IP transformers are core and coil units designed for machine tool, industrial control, panelboard and general purpose applications. These designs are now welded core and encapsulated to provide the highest quality electrical performance. The transformer coil is completely surrounded by epoxy, making the unit impervious to external elements. The lamination core is welded to provide superior quiet performance.

GE Power Transformer, Core/Coil Dry Encapsulated, Series: 9T58K, 240/480 VAC Primary, 110/115/120 VAC Secondary, 0.05 kVA, 60 Hz, 1 ph, 6100 Frame, Class A, Open, 40 deg C, 3.1 in W x 4 in D x 2.7 in H
MFG #: 9T58K0042G09

EECO #: GE9T58K0042G09

Brand: GE
UPC #: 783173118528
Attributes
Features
Documents
Product Information
Attributes
Phase
1
UNSPSC
39121026
Application
For use to provide voltage to control devices in applications where regulation and minimum space are important and electrical distribution and control applications
Circuit Type
6100 Frame
Power Rating
0.05
Enclosure Type
Open
Frequency Rating
60
Temperature Rating
40
Type
Core/Coil Dry Encapsulated
Series
9T58K
Dimensions
3.1 in W x 4 in D x 2.7 in H
Primary Voltage
240/480
Secondary Voltage
110/115/120
Features
  • Fully encapsulated coil is impervious to moisture
  • Pressure plate terminals ensure secure connections
  • Wide variety of fusing options
  • Rugged, high impact plastic terminal board
  • Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
  • Copper windings
  • Flexible design allows input or output voltage to match any application
  • Copper coil
  • 55 deg C temperature rise
  • 105 deg C temperature class
  • 220 x 440, 230 x 460, 240 x 480 VAC primary volt
  • Core and coil SM power transformer
