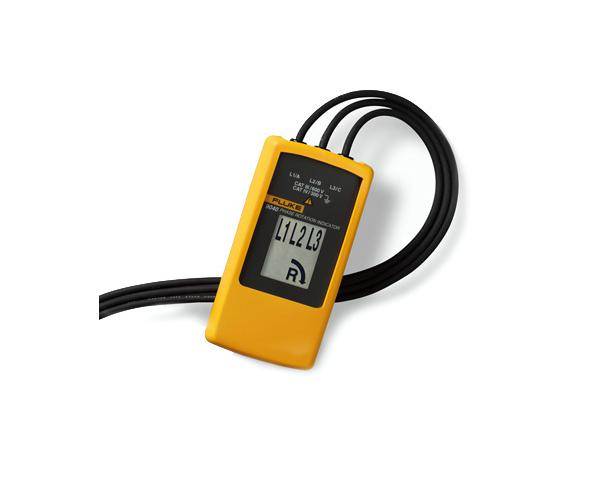

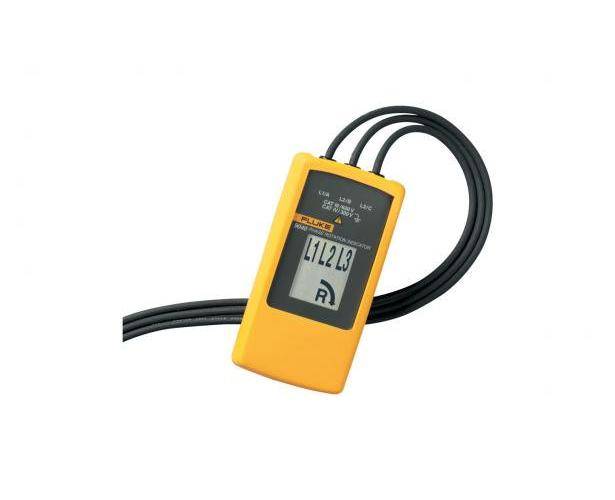

Fluke® FLUKE-9040 Phase Rotation Indicator, 40 to 700 VAC, 15 to 400 Hz, Yes

Short Description

The Fluke® 9040 is effective for measuring phase rotation in all areas where 3-Phase supplies are used to feed motors, drives and electrical systems. The Fluke® 9040 is a rotary field indicator and can provide clear indication of the 3-Phase via an LCD display and the phase rotation direction to determine correct connections. It allows rapid determination of phase sequence and has a voltage (up to 700 VAC) and frequency range suitable for commercial and industrial applications. The included test probes have a variable clamping range for safe contact, also in industrial sockets.

Fluke® Phase Rotation Indicator, 40 to 700 VAC, 15 to 400 Hz, Safety Rating: EN 61010/EN 61557-7 Electrical with CAT III 600 V/CAT IV 300 V, Motor Rotation: Yes, Phase Rotation: Yes, Phase Voltage Present Indicator: Yes, Clear
MFG #: FLUKE-9040

EECO #: FLFLUKE9040

Brand: Fluke
UPC #: 095969291361
Attributes
Features
Documents
Product Information
Attributes
Color
Clear
Shape
Rectangular
UNSPSC
41113664
Application
For detect the rotary field of 3-Phase systems, commercial and industrial applications
Display Type
LCD
Voltage Rating
40 to 700
Frequency Rating
15 to 400
Enclosure
IP40
Size
61 Millimeter Width x 27 Millimeter Depth x 124 Millimeter Height
Type
Rotary Indicator
Includes
(3) Black Self-Retaining Test Probes, Alligator Clip, User Manual
Warranty
2 Years
Safety Rating
EN 61010/EN 61557-7 Electrical with CAT III 600 V/CAT IV 300 V
Maximum AC Input Voltage
700 Volt
Minimum AC Input Voltage
40 Volt
Features
  • Effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems
  • Rotary field indicator and can provide clear indication of the 3-Phase via an LCD display and the phase rotation direction to determine correct connections
  • Allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range
  • Test probes have a variable clamping range for safe contact in industrial sockets
  • Indication of phase rotation, clear LCD display, no battery required
  • Continuous operating timer, 40 deg C operating temperature, IP 40 dust/water resistance, 1 mA nominal test current
  • 124 mm x 61 mm x 27 mm
