Fluke® FLUKE-902FC HVAC Wireless Clamp Meter, 0.01/0.1 A, 600 VAC/VDC, 60/600/6000 kOhm

Short Description

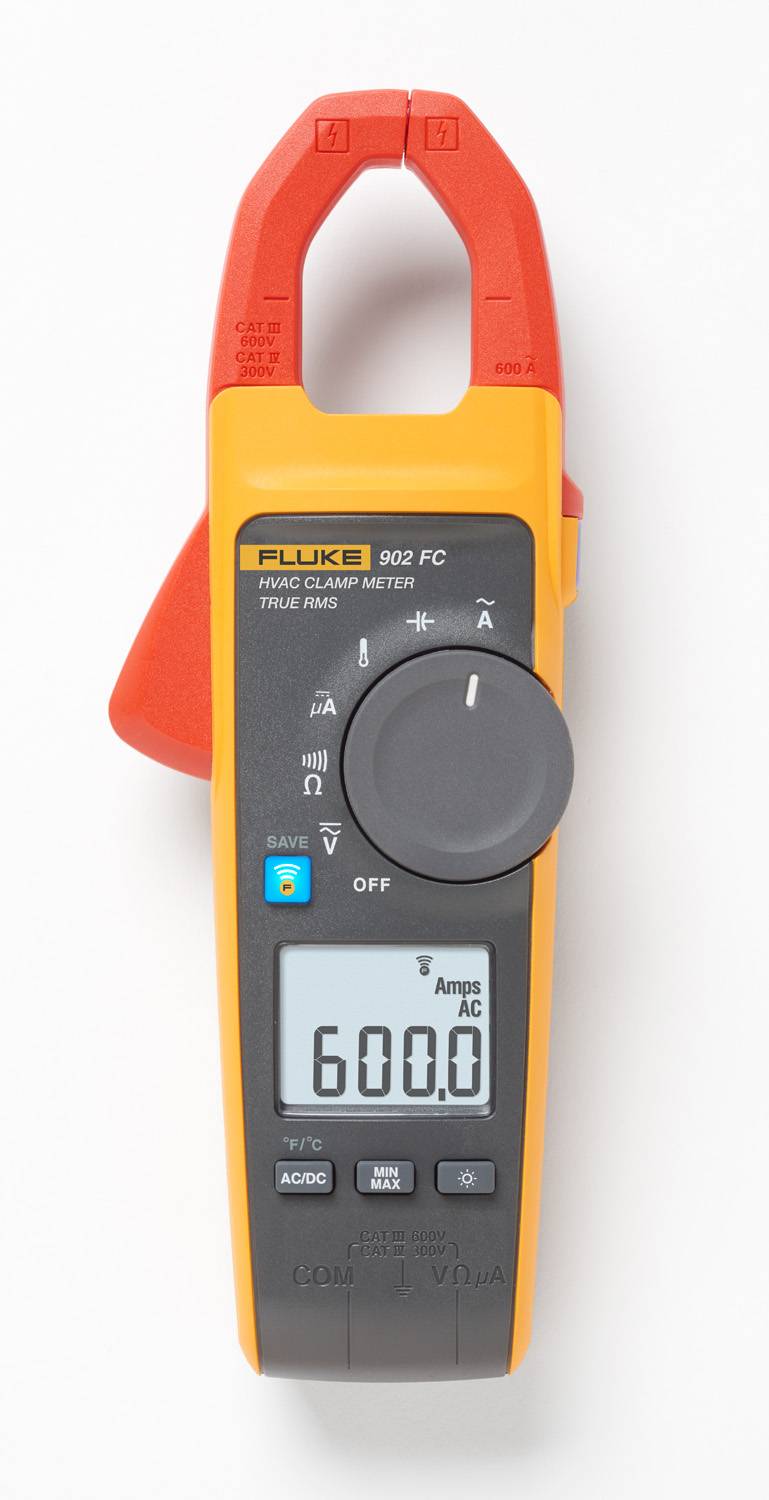

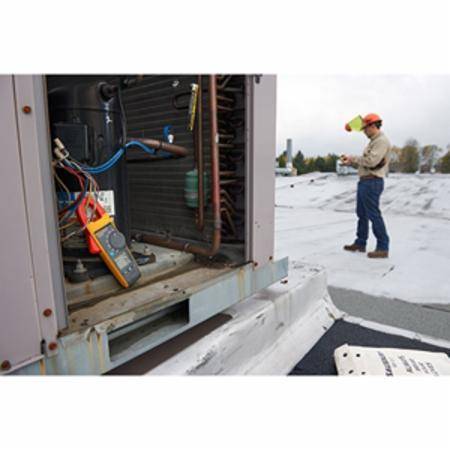

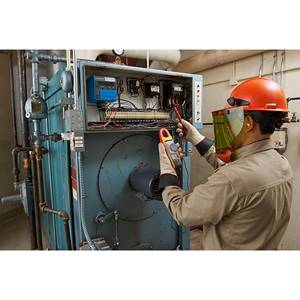

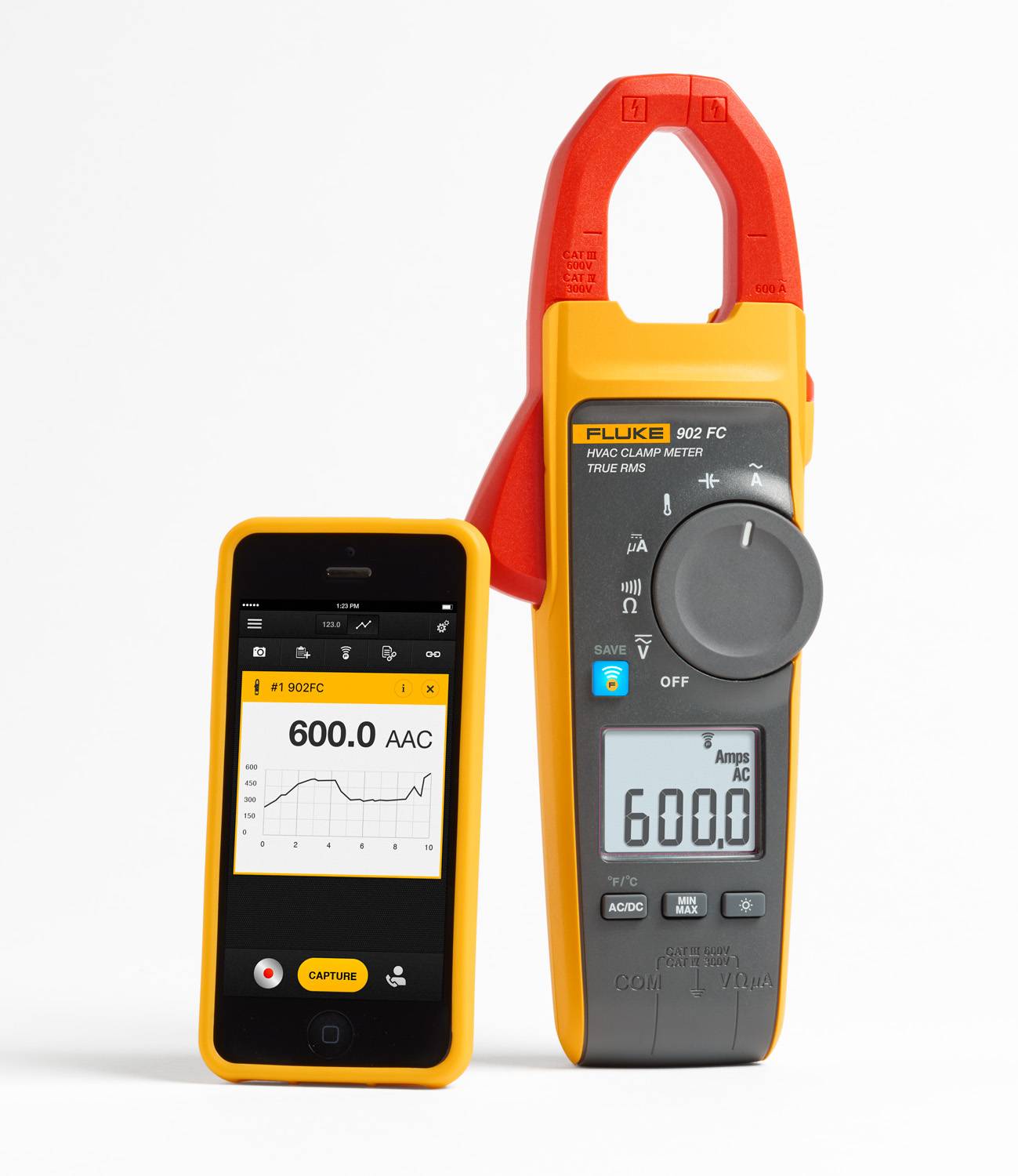

The Fluke® 902 FC True-RMS™ HVAC clamp meter, a wireless Fluke® Connect® enabled meter, improves the productivity of HVAC technicians in the field. The rugged dual-rated Cat III, 600 /Cat IV, 300 V meter performs the essential measurements of HVAC systems microamps for testing pilot light sensors, resistance up to 60 kOhm, AC current, AC/DC voltage, capacitance and contact temperature eliminating the need to carry multiple tools. Its small body is easy to hold and the jaw fits perfectly in tight work spaces. As part of Fluke® connect the industry's largest system of software and more than 40 wireless test tools the 902 FC can transmit measurements to a smartphone or tablet for later, detailed analysis. Those measurements can be uploaded to the cloud. Technicians can combine measurement data from multiple Fluke® connect test tools to create and share reports from the jobsite via email and collaborate in real time with other colleagues with ShareLive™ video calls or email, increasing productivity in the field. The clamp meter also decreases the frequency that technicians will need to wear personal protective equipment when working on high voltage/current panels. Simply turn off the panel, verify the panel is de-energized using standard safety procedures, place the clamp and sync It to a smartphone with the Fluke® connect app, close the panel, reenergize It and take measurements from a safe distance.

Fluke® Clamp Meter, HVAC Wireless, 0.01/0.1 A, 600 VAC/VDC Electrical Rating, 60/600/6000 kOhm Resistance, 2% +/-5 Digits at 45 to 65 Hz, 2.5% +/-5 Digits at 65 to 400 Hz AC Current Accuracy, 1.5% +/-5 Digits Voltage Accuracy, Safety Rating: CAT IV 600 VAC, CAT III 1000 VAC, (2) AA Alkaline Batteries Power Source, 14 to 122 deg F Operating, 9.06 in L x 3.3 in W x 1.39 in H Dimensions
MFG #: FLUKE-902FC

EECO #: FLFLUKE902FC

Brand: Fluke
UPC #: 095969798341
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
41113654
Approval
CSA (Canada and US), CE
Application
Current Measurements to Measure Flame Rod Applications
Display Type
Backlit
Operating Temperature
14 to 122
Size
83.7 Millimeter Width x 45.4 Millimeter Depth x 230 Millimeter Height
Type
HVAC Wireless
Includes

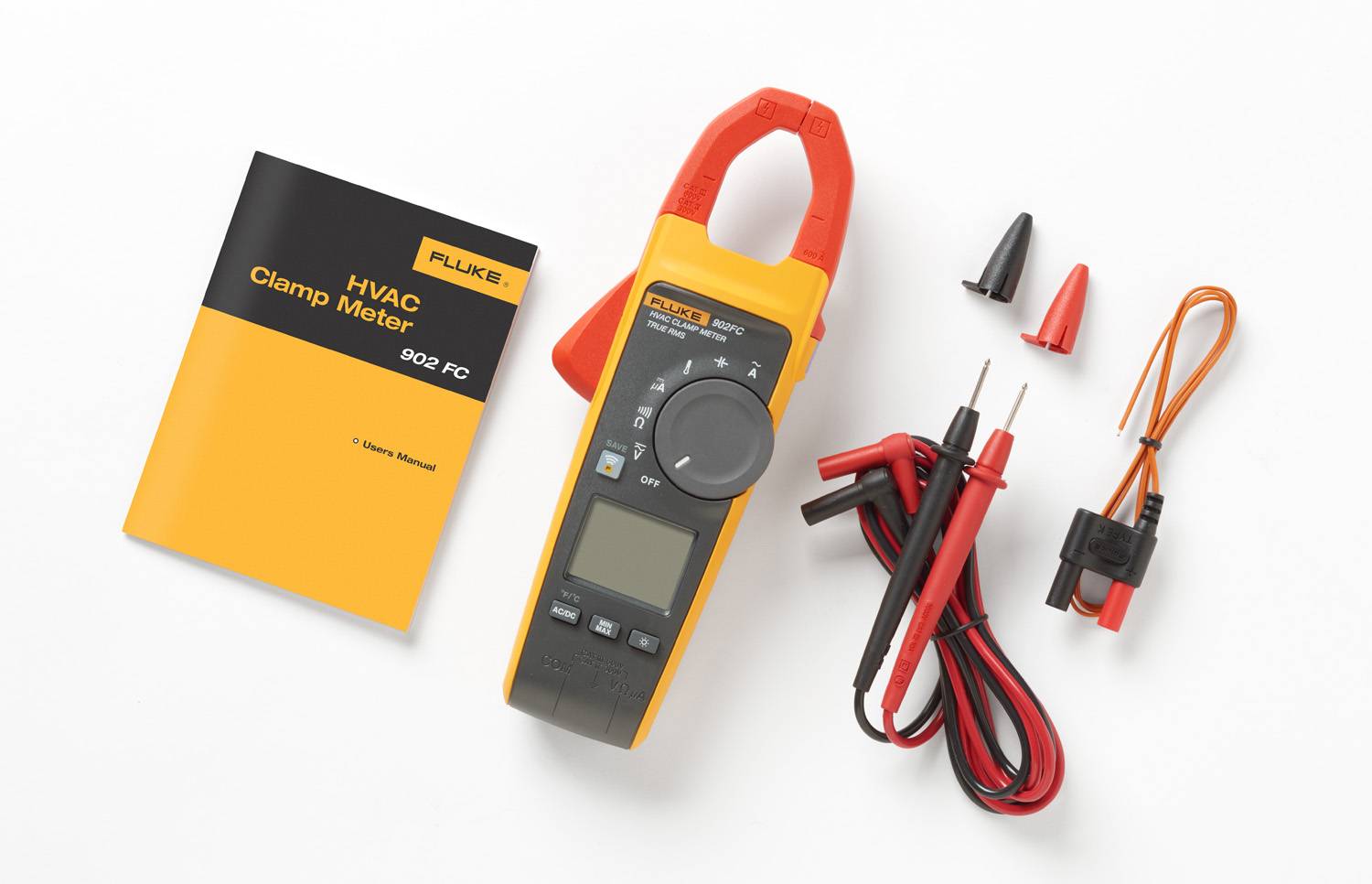

(1) 80BK Integrated DMM Temperature Probe and Statement of Calibration, Users Manual, Soft Carrying Case and TL75 Test Leads (1-Pair)
Warranty
3 years
Inclusion
1-Pair TL75 Test Leads, (1) 80BK Integrated DMM Temperature Probe, (2) AA Alkaline Batteries, Soft Carrying Case, Users Manual, Statement of Calibration Practices
Dimensions
9.06 in L x 3.3 in W x 1.39 in H
Resistance
60/600/6000
Battery Type
(2) AA Alkaline, NEDA 15A, IEC LR6
Safety Rating
CAT IV 600 VAC, CAT III 1000 VAC
Frequency Range
45 to 400 Hertz
AC Current Range
60/600 Amp
AC Voltage Range
600 Volt
DC Current Range
200 Amp
DC Voltage Range
600 Volt
Resistance Range
600/6000/60 Kilo Ohm
Parameter Measured
AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Continuity
Features
  • Ergonomic design fits in your hand and can be used while wearing personal protective equipment
  • Large, easy to read backlight display
  • True-RMS voltage and current for accurate measurements on non-linear signals
  • Minimum and maximum recording to capture variations automatically
  • Resolution - 0.01/0.1 A, 0.1 VAC
  • 2.5 at 220 A, 3.0 at 180 A, >1.4 at 600 A at 50/60 Hz crest factor
  • Resistance - 0.1/1/10 resolution, 1% +/-5 digits accuracy
  • 100/1000 uF capacitance range
  • 0.1/1 uF resolution, 1% +/- 4 digits capacitance accuracy
  • 0.1 C/F resolution, 1% +/-8 digits contact temperature accuracy
  • 75 dBA nominal 15 cm from case front continuity beeper
  • 1000 VAC maximum voltage between any terminal and earth ground
  • -40 to 140 deg F storage temperature
  • <=90% at 50 to 86 deg F, <=75% at 86 to 104 deg F, <=45% at 104 to 122 deg F operating relative humidity
  • 9842 ft operating, 39, 370 ft storage altitude
  • IP30 non-operating enclosure rating
FLUKECE01986_1_4
FLUKECINST00258
IDW_DOCUMENT_a8a99a8733172e6654f3af2e2990fa3a99d7f4b2c483a269e11fefe097586e40
IDW_DOCUMENT_5d441c23e1af0a2ce5056972ad9b177791fd283db08ea1e9984d5798f4e2bdd9
Fluke_FLUKE_902_FC_Users_Guide
