Fluke® FLUKE-773 Milliamp Process Clamp Meter, 0 to 30 VDC, 0 to 100 mA, Backlit Display

Name: Fluke® FLUKE-773 Milliamp Process Clamp Meter, 0 to 30 VDC, 0 to 100 mA, Backlit Display
Brand: Fluke
SKU: FLFLUKE773
Price: 1174.49 USD
Availability: InStock

Short Description

Milliamp process clamp meters can measure mA signals without breaking the loop. The Fluke® 773 mA Clamp Meter is Fluke®'s premier mA Clamp Meter, providing you with the best in troubleshooting and process calibration power.

Fluke® Clamp Meter, Milliamp Process, 0 to 30 VDC, 0 to 100 mA Electrical Rating, Backlit Display, 0.2% + 2 Counts Voltage Accuracy, (4) 1.5 V AA Alkaline Batteries Power Source, -10 to 50 deg C Operating, 11.61 in L x 5.91 in W x 2.95 in H Dimensions, Plastic

MFG #: FLUKE-773

EECO #: FLFLUKE773 FLFLUKE773

Brand: Fluke

UPC #: 095969475822

Attributes

Features

Documents

Product Information

Attributes

UNSPSC

41111905

Approval

CSA (Canada and US), CE, C-Tick

Material

Plastic

Application

For use to measure output signals without breaking the loop or bringing down the system

Display Type

Backlit

Operating Temperature

-10 to 50

Size

9.75 Inch Length x 3 Inch Width x 1.625 Inch Height

Type

Milliamp Process

Includes

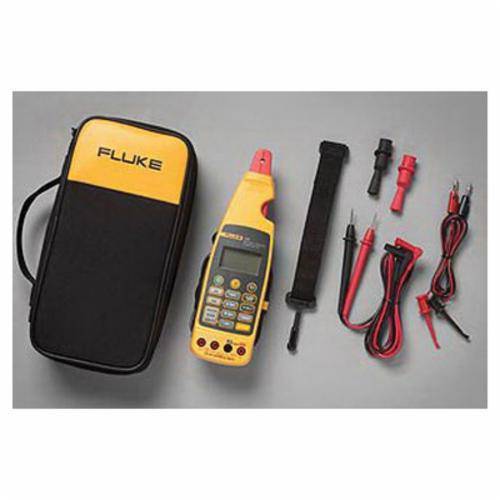

(4) AA Alkaline Batteries (Installed), Soft Carrying Case, TL75 Test Leads, AC 72 Detachable Clip, TL940 Mini Hook Test Leads, Instruction Sheet, Hanging Tool With Hook and Loop Strap

Inclusion

Test Lead, Alligator Clip and Hanging Strap, Soft Carrying Case, (4) 1.5 Volt Alkaline Battery, User Manual

Dimensions

11.61 in L x 5.91 in W x 2.95 in H

Battery Type

(4) 1.5 Volt Alkaline

Frequency Range

5 to 500 Hertz

AC Current Range

4 to 20 Milliamp

DC Voltage Range

10 to 30 Volt

Resistance Range

500 Ohm

Parameter Measured

DC Voltage, Current, Resistance, Frequency

Features

Hard plastic enclosure type
Measurement spotlight illuminates hard to see wires in dark enclosures
Best in class 0.2% accuracy

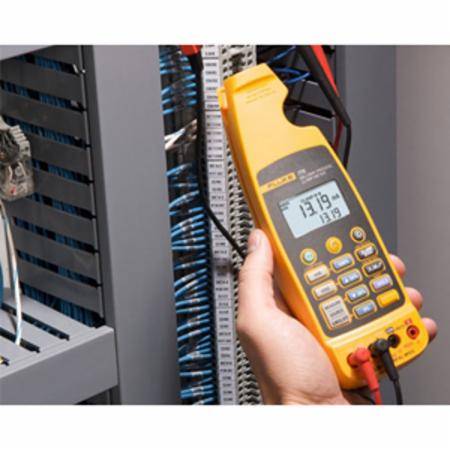

Dual backlit display with both mA measurement and percent of 4 to 20 mA span

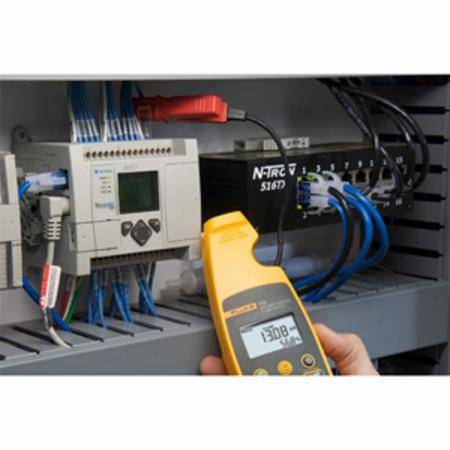

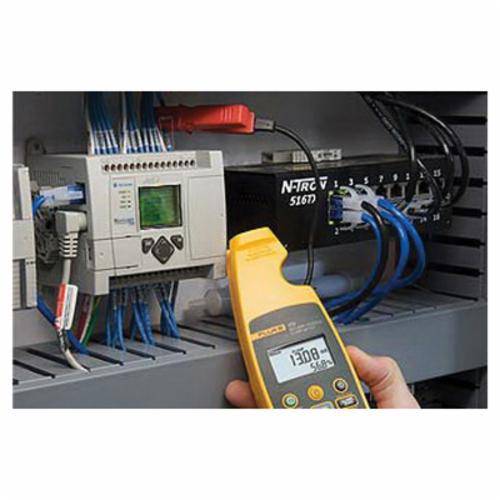

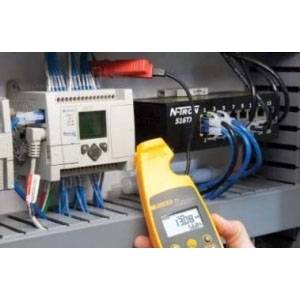

Measure 4 to 20 mA signals without "breaking the loop"

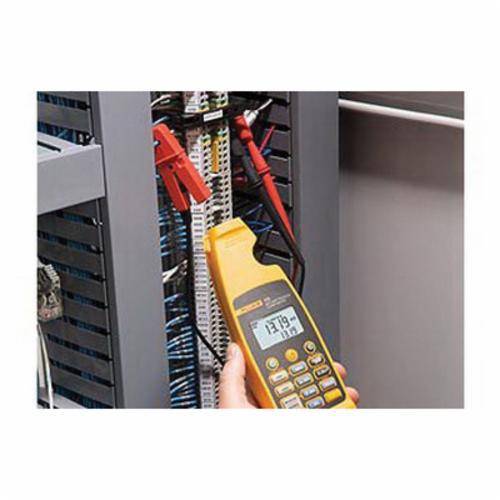

Detachable clamp with extension cable for measurements in tight locations
Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
Automatically change the 4 to 20 mA output for remote testing
Power saving features, auto-off, backlight timeout extend battery life
Hold function captures and displays changing measurements
-25 to 60 deg C storage temperature, IP 40 IP, 0.177 in or 4.5 mm Max diameter of measurable conductor, < 90% at < 30 deg C, < 75% at 30 to 55 deg C operating humidity, 0 to 2000 m operating altitude, random 2 g, 5 to 500 Hz vibration, 1 meter drop test shock, 0.01% deg C temperature coefficient, (4) AA 1.5 V alkaline, IEC LR6, 40 hours typical power, battery life
Simultaneous mA in-circuit measurement with 24 V loop power for powering and testing transmitters, source 4 mA to 20 mA signals for testing control system I/O or I/Ps, measure 4 mA to 20 mA signals with in-circuit measurement
Scaled mA output provides a continuous mA signal that corresponds to the 4 mA to 20 mA signal measured by the mA clamp, enables milliamp signal logging to a separate logging device without breaking the loop
Output mA signal enables a logging DMM or other device to record the 4 to 20 mA signal without breaking the loop, apply a mA input signal to a device and measure its 4 to 20 mA output on devices such as valves or mA isolators voltage output linear ramp or 25% step output, automatically change the voltage output for remote testing
0 to 20.99 mA at 0.2% + 2 counts accuracy, 21.0mA to 100.0 mA at 1% + 5 counts accuracy measuring range
