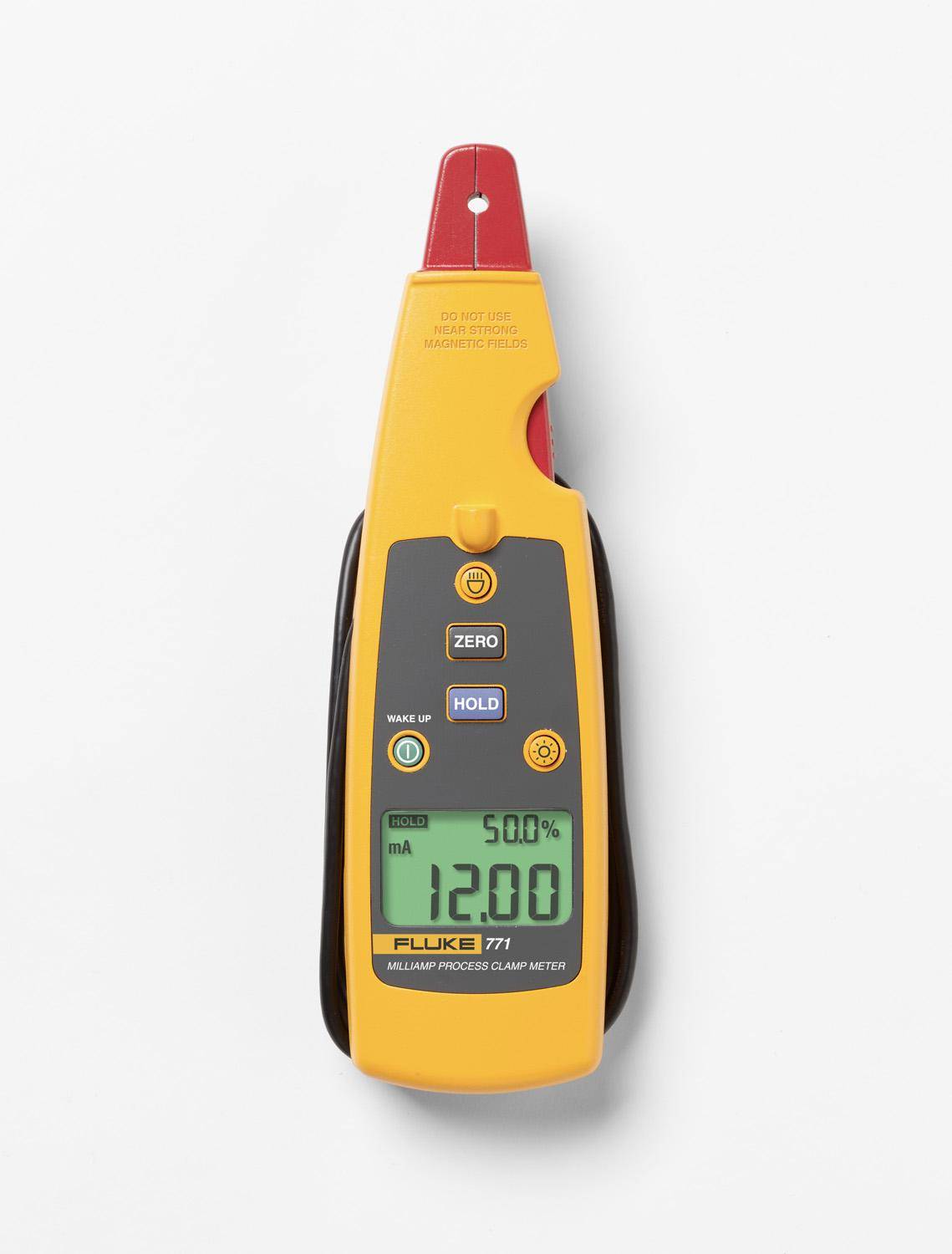

Fluke® FLUKE-771 Milliamp Process Clamp Meter, 0 to 100 mA, Dual Backlit Display
Fluke® FLUKE-771 Milliamp Process Clamp Meter, 0 to 100 mA, Dual Backlit Display
Fluke® FLUKE-771 Milliamp Process Clamp Meter, 0 to 100 mA, Dual Backlit Display
Fluke® FLUKE-771 Milliamp Process Clamp Meter, 0 to 100 mA, Dual Backlit Display
Fluke® FLUKE-771 Milliamp Process Clamp Meter, 0 to 100 mA, Dual Backlit Display
Fluke® FLUKE-771 Milliamp Process Clamp Meter, 0 to 100 mA, Dual Backlit Display
Fluke® FLUKE-771 Milliamp Process Clamp Meter, 0 to 100 mA, Dual Backlit Display
Fluke® FLUKE-771 Milliamp Process Clamp Meter, 0 to 100 mA, Dual Backlit Display
Fluke® FLUKE-771 Milliamp Process Clamp Meter, 0 to 100 mA, Dual Backlit Display
Fluke® FLUKE-771 Milliamp Process Clamp Meter, 0 to 100 mA, Dual Backlit Display
Fluke® FLUKE-771 Milliamp Process Clamp Meter, 0 to 100 mA, Dual Backlit Display
Fluke® FLUKE-771 Milliamp Process Clamp Meter, 0 to 100 mA, Dual Backlit Display
Fluke® FLUKE-771 Milliamp Process Clamp Meter, 0 to 100 mA, Dual Backlit Display
Fluke® FLUKE-771 Milliamp Process Clamp Meter, 0 to 100 mA, Dual Backlit Display
Fluke® FLUKE-771 Milliamp Process Clamp Meter, 0 to 100 mA, Dual Backlit Display
Fluke® FLUKE-771 Milliamp Process Clamp Meter, 0 to 100 mA, Dual Backlit Display
Share Share Print Print
Fluke

Fluke® FLUKE-771 Milliamp Process Clamp Meter, 0 to 100 mA, Dual Backlit Display

Short Description

If you need more time in your busy day take a good look at the Fluke® 771 mA clamp meters. It's designed to save you time/and money/by eliminating time wasting activities. Now you can troubleshoot and repair 4 to 20 mA loops without breaking the loop or bringing down the system.

Fluke® Clamp Meter, Milliamp Process, 0 to 100 mA Electrical Rating, Dual Backlit Display, 0.2% + 2 Counts at 0 to 20.99 mA, 1% + 5 Counts at 21 to 100 mA AC Current Accuracy, Safety Rating: IP40, (2) 1.5 VDC AA Alkaline Batteries Power Source, -10 to 50 deg C Operating, 9.29 in L x 4.33 in W x 2.83 in H Dimensions, Hard Plastic
MFG #: FLUKE-771

EECO #: FLFLUKE771

Brand: Fluke
UPC #: 095969349697
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
41113637
Approval
CSA (Canada and US), CE
Material
Hard Plastic
Application
For troubleshoot and repair 4 to 20 mA loops without breaking the loop or bringing down the system
Display Type
Dual Backlit
Operating Temperature
-10 to 50
Size
2.32 Inch Width x 1.5 Inch Depth x 8.35 Inch Height
Type
Milliamp Process
Includes
Soft Carrying Case and User Manual
Warranty
3 years
Inclusion
Soft Carrying Case,User Manual
Dimensions
9.29 in L x 4.33 in W x 2.83 in H
Battery Type
(2) AA 1.5 Volt Alkaline
Safety Rating
IP40
Frequency Range
5 to 500 Hertz
AC Current Range
4 to 20 Milliamp
DC Current Range
4 to 20 Milliamp
Parameter Measured
Current
Features
  • Best in class 0.2% accuracy
  • 0.01 mA resolution and sensitivity
  • Measure 4 to 20 mA signals without "breaking the loop"
  • Measure mA signals for PLC and control system analog I/O
  • Dual backlit display with both mA measurement and percent of 4 to 20 mA span
  • Measurement spotlight illuminates hard to see wires in dark enclosures
  • Detachable clamp with extension cable for measurements in tight locations
  • Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
  • Automatically change the 4 to 20 mA output for remote testing
  • Power saving features, auto-Off, backlight timeout extend battery life
  • Hold function captures and displays changing measurements
  • Milliamp process clamp meters can measure mA signals without breaking the loop
  • The popular Fluke® 771 mA clamp meter saves time by making fast/accurate measurements on 4 to 20 mA signal loops without breaking the circuit
  • 0.177 in or 4.5 mm max Dia of measurable conductor, < 90% at <30 deg C, < 75% at 30 to 55 deg C operating humidity, 0 to 2000 m operating altitude, random 2 g, 5 to 500 Hz vibration, 1 meter drop test shock, 0.01% deg C temperature coefficient
  • 0.2% 2 counts for 0 to 20.99 mA/ 1% 5 counts for 21 mA to 100 mA AC current accuracy
