Fluke® FLUKE-375/FC Wireless Clamp Meter, 600 A, 60 kOhm, 10 to 100/100 to 500 Hz, 34 mm Jaw
Fluke® FLUKE-375/FC Wireless Clamp Meter, 600 A, 60 kOhm, 10 to 100/100 to 500 Hz, 34 mm Jaw
Fluke® FLUKE-375/FC Wireless Clamp Meter, 600 A, 60 kOhm, 10 to 100/100 to 500 Hz, 34 mm Jaw
Fluke® FLUKE-375/FC Wireless Clamp Meter, 600 A, 60 kOhm, 10 to 100/100 to 500 Hz, 34 mm Jaw
Fluke® FLUKE-375/FC Wireless Clamp Meter, 600 A, 60 kOhm, 10 to 100/100 to 500 Hz, 34 mm Jaw
Fluke® FLUKE-375/FC Wireless Clamp Meter, 600 A, 60 kOhm, 10 to 100/100 to 500 Hz, 34 mm Jaw
Share Share Print Print
Fluke

Fluke® FLUKE-375/FC Wireless Clamp Meter, 600 A, 60 kOhm, 10 to 100/100 to 500 Hz, 34 mm Jaw

Short Description

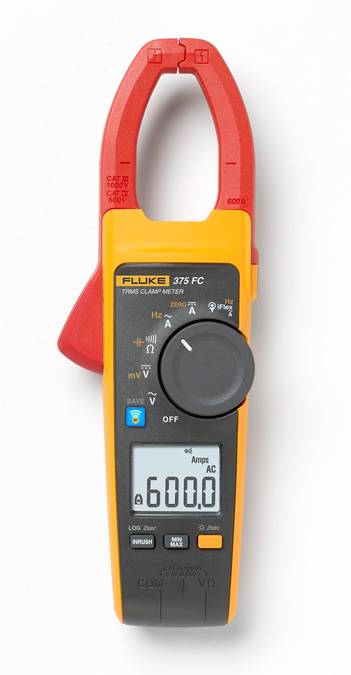

The Fluke® 375 FC is a high performance clamp meter with wireless communication, measures very low voltage and very high resistance, plus a VFD low pass filter for accurate motor drive measurements.

Fluke® Clamp Meter, Wireless, 600 A Electrical Rating, 60 kOhm Resistance, 10 to 100/100 to 500 Hz Frequency, 34 mm Jaw, 2% +/-5 Digits, 2.5% +/-5 Digits, 3% +/-5 Digits AC Current Accuracy, 1.5% +/-5 Digits, 1% +/- 5 Digits Voltage Accuracy, Frequency Counter: 5 to 500 Hz, Safety Rating: CAT IV 600 VAC, CAT III 1000 VAC, (2) AA NEDA 15A IEC LR6 Batteries Power Source, 14 to 122 deg F Operating, 249 mm L x 85 mm W x 45 mm H Dimensions
MFG #: FLUKE-375/FC

EECO #: FLFLUKE375FC

Brand: Fluke
UPC #: 095969798464
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
41113637
Approval
CSA (Canada and US), CE
Frequency Rating
10 to 100/100 to 500
Operating Temperature
14 to 122
Size
85 Millimeter Width x 45 Millimeter Depth x 249 Millimeter Height
Type
Wireless
Warranty
3 years Limited
Inclusion
TL75 Test Leads, (2) AA Alkaline Batteries, Coated Instruction Card, Safety Information Sheet, Soft Carrying Case
Dimensions
249 mm L x 85 mm W x 45 mm H
Resistance
60
Jaw Opening
34 Millimeter
Battery Type
(2) AA, NEDA 15A, IEC LR6
Safety Rating
CAT IV 600 VAC, CAT III 1000 VAC
Frequency Range
10 to 500 Hertz
AC Current Range
600 Amp (Jaw), 2500 Amp (Probe)
AC Voltage Range
1000 Volt
DC Current Range
600 Amp
DC Voltage Range
1000 Volt
Resistance Range
60 Kilo Ohm
Parameter Measured
AC/DC Voltage, AC/DC Current, Resistance, Capacitance
Features

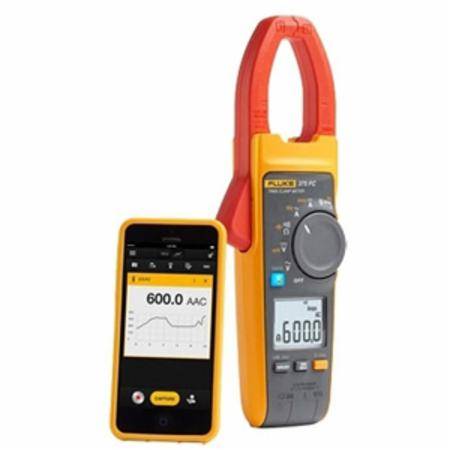

  • Connect your meter to your smartphone with Fluke® connect measurements

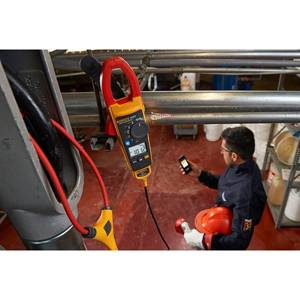

  • Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
  • Record results directly to your phone and the cloud
  • Capture intermittent faults while performing other tasks using the logging capabilities of the Fluke® 375 FC
  • Create and share reports from the field via email or converse in real time with share live video calls
  • Compatible with iFlex® flexible current probe, use to expand the measurement range to 2500 A AC, provides access to large conductors in tight spaces
  • Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees It
  • -40 to 60 deg C storage temperature
  • IP30 protection rating
  • 600 A AC and DC current measurement
  • 2500 A AC current measurement with iFlex® flexible current probe
  • 1000 VAC/VDC voltage measurement
  • True-RMS voltage and current for accurate measurements on non-linear signals
  • Resistance measurement to 6000 Ohm with continuity detection
  • 600 A AC current via jaw/2500 A AC current via flexible current probe
  • 0.1 A resolution via jaw/flexible current probe
  • 1% +/-5 digits resistance accuracy
  • 1000 uF capacitance measurement
  • 0.1 uF </=100 uF, 1 u F </=1000 uF resolution capacitance
  • Log and trend measurements and pinpoint intermittent faults
