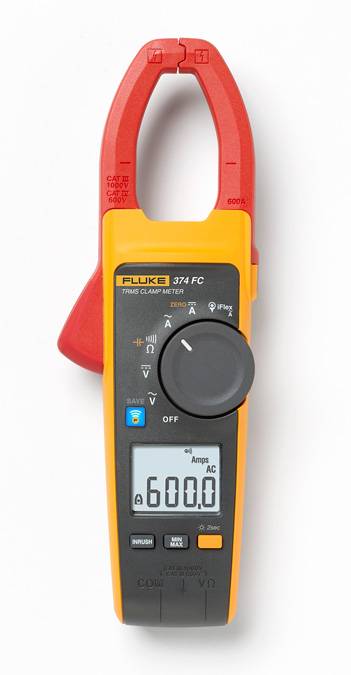

Fluke® FLUKE-374/FC Wireless Clamp Meter, 600 A, 6000 Ohm, 10 to 100/100 to 500 Hz, 34 mm Jaw
Fluke® FLUKE-374/FC Wireless Clamp Meter, 600 A, 6000 Ohm, 10 to 100/100 to 500 Hz, 34 mm Jaw
Fluke® FLUKE-374/FC Wireless Clamp Meter, 600 A, 6000 Ohm, 10 to 100/100 to 500 Hz, 34 mm Jaw
Fluke® FLUKE-374/FC Wireless Clamp Meter, 600 A, 6000 Ohm, 10 to 100/100 to 500 Hz, 34 mm Jaw
Fluke® FLUKE-374/FC Wireless Clamp Meter, 600 A, 6000 Ohm, 10 to 100/100 to 500 Hz, 34 mm Jaw
Fluke® FLUKE-374/FC Wireless Clamp Meter, 600 A, 6000 Ohm, 10 to 100/100 to 500 Hz, 34 mm Jaw
Share Share Print Print
Fluke

Fluke® FLUKE-374/FC Wireless Clamp Meter, 600 A, 6000 Ohm, 10 to 100/100 to 500 Hz, 34 mm Jaw

Short Description

The Fluke® 374 FC offers advanced troubleshooting performance and is now part of the Fluke® Connect® family of wireless test tools.

Fluke® Clamp Meter, Wireless, 600 A Electrical Rating, 6000 Ohm Resistance, 10 to 100/100 to 500 Hz Frequency, 34 mm Jaw, 2% +/-5 Digits, 2.5% +/-5 Digits, 3% +/-5 Digits AC Current Accuracy, 1.5% +/-5 Digits, 1% +/- 5 Digits Voltage Accuracy, Safety Rating: CAT IV 600 VAC, CAT III 1000 VAC, (2) AA NEDA 15A IEC LR6 Batteries Power Source, 14 to 122 deg F Operating, 249 mm L x 85 mm W x 45 mm H Dimensions
MFG #: FLUKE-374/FC

EECO #: FLFLUKE374FC

Brand: Fluke
UPC #: 095969798532
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
41113637
Approval
CSA (Canada and US), CE, TUV
Display Type
Backlight
Frequency Rating
10 to 100/100 to 500
Operating Temperature
14 to 122
Size
249 Millimeter Length x 85 Millimeter Width x 45 Millimeter Height
Type
Wireless
Warranty
3 years Limited
Dimensions
249 mm L x 85 mm W x 45 mm H
Resistance
6000
Safety Rating
CAT IV 600 VAC, CAT III 1000 VAC
Frequency Range
500 Hertz
AC Current Range
600 Amp
AC Voltage Range
600 Volt
DC Current Range
600 Amp
DC Voltage Range
600 Volt
Resistance Range
60 Kilo Ohm
Parameter Measured
AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency
Features

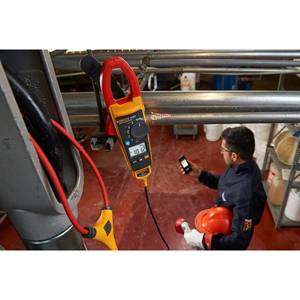

  • Connect your meter to your smartphone with Fluke® connect measurements
  • Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
  • Record results directly to your phone and the cloud
  • Create and share reports from the field via email or converse in real time with share live video calls
  • Compatible with iFlex® flexible current probe, use to expand the measurement range to 2500 A AC, provides access to large conductors in tight spaces
  • Compatible with TPAK magnetic hanging strap
  • Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees It
  • -40 to 60 deg C storage temperature
  • IP30 protection rating
  • 600 A AC and DC current measurement
  • 2500 A AC current measurement with iFlex® flexible current probe
  • 1000 VAC/VDC voltage measurement
  • True-RMS voltage and current for accurate measurements on non-linear signals
  • Resistance measurement to 6000 Ohm with continuity detection
  • 600 A AC current via jaw/2500 A AC current via flexible current probe
  • 0.1 A resolution via jaw/flexible current probe
  • 1% +/-5 digits resistance accuracy
  • 1000 uF capacitance measurement
  • 0.1 uF </=100 uF, 1 u F </=1000 uF resolution capacitance
  • Log and trend measurements and pinpoint intermittent faults
