Fluke

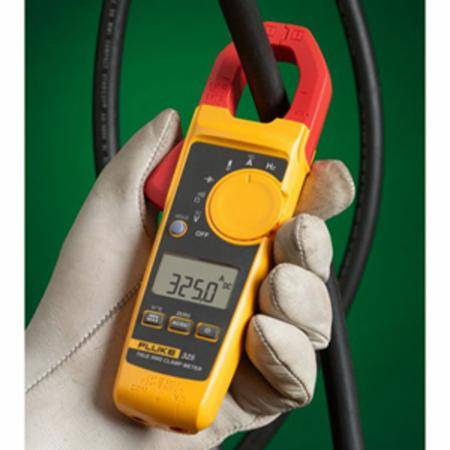

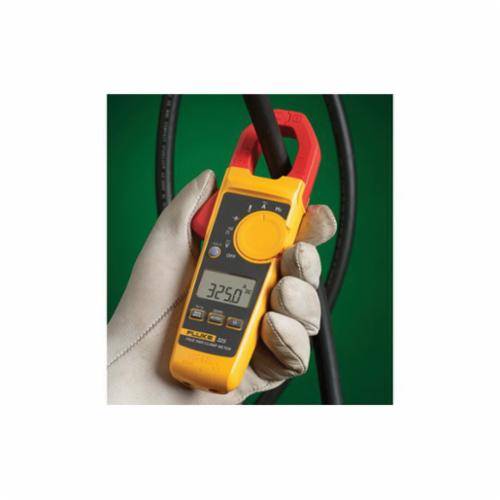

Fluke® FLUKE-325 Clamp Meter, 40/400 A, 600 VAC/VDC, 40 kOhm, 5 to 500 Hz, 30 mm Jaw, Backlit Display

Short Description

True-RMS measurements and optimized ergonomics make the 320 series clamp meters the best general troubleshooting tools for commercial and residential electricians. The Fluke® 323 model is ideally suited for current measurements up to 400 A in tight cable compartments.

Fluke® Clamp Meter, 40/400 A, 600 VAC/VDC Electrical Rating, 40 kOhm Resistance, 5 to 500 Hz Frequency, 30 mm Jaw, Backlit Display, 2% +/-5 Digits at 45 to 65 Hz, 2.5% +/-5 Digits at 65 to 400 Hz AC Current Accuracy, 1.5% +/-5 Digits VAC, 1% +/-5 Digits VDC Voltage Accuracy, Frequency Counter: 5 to 500 Hz, Safety Rating: CAT III 600 VAC, CAT IV 300 VAC, -10 to 50 deg C Operating, 8.15 in L x 2.95 in W x 1.34 in H Dimensions, Hard Plastic
MFG #: FLUKE-325

EECO #: FLFLUKE325

Brand: Fluke
UPC #: 095969623766
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
41113637
Approval
CSA (Canada and US), CE
Material
Hard Plastic
Application
For current measurements in tight cable compartments and overall troubleshooting by commercial and residential electricians
Display Type
Backlit
Frequency Rating
5 to 500
Operating Temperature
-10 to 50
Size
75 Millimeter Width x 34 Millimeter Depth x 207 Millimeter Height
Includes
Test Leads, Soft Case and User's Manual
Inclusion
Test Lead, SoftCase, User Manual
Dimensions
8.15 in L x 2.95 in W x 1.34 in H
Resistance
40
Safety Rating
CAT III 600 VAC, CAT IV 300 VAC
Frequency Range
5 to 500 Hertz
AC Current Range
40/400 Amp
AC Voltage Range
600 Volt
DC Current Range
40/400 Amp
DC Voltage Range
600 Volt
Resistance Range
400/4000 Ohm, 40 Kilo Ohm
Parameter Measured
AC/DC Voltage, AC/DC Current, Resistance, Temperature, Capacitance, Frequency, True RMS
Features
  • True-RMS AC voltage and current for accurate measurements on non-linear signals
  • Large, easy to read backlight display
  • Slim, ergonomic design, hold button
  • Fluke® rugged, reliable, precise
  • Resistance measurement up to 4 kOhm with continuity detection
  • Resistance 400 Ohm/4000 Ohm/40 kOhm with accuracy of (1% +/- 5 digits)
  • <=30 Ohm continuity, 0 to 100 uF, 100 uF to 1000 uF capacitance
FLUKECE01478_1_2
FLUKECINST00250
IDW_DOCUMENT_1520615352624
IDW_DOCUMENT_1520584669709
Qty Unit price
Ea
1 $273.74

Slqt
1 $273.74

Stpk
1 $273.74

Unit
1 $273.74
