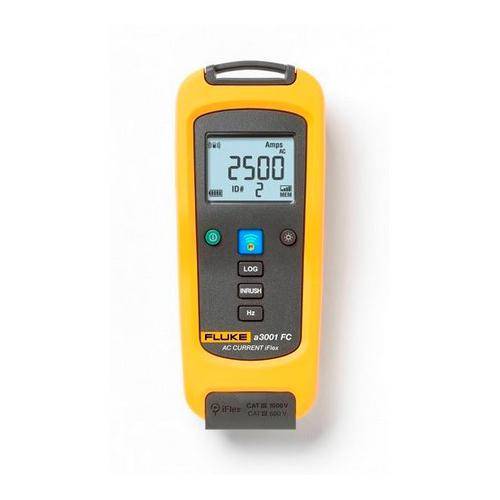

Fluke® iFlex® FLK-A3001FC Wireless Clamp Meter Module, 2500 VAC, 0.5 to 2500 A, 2.4 GHz ISM, 3 at 1100 A Crest, 3% +/-5 Digits (5 to 500 Hz) Accuracy

Short Description

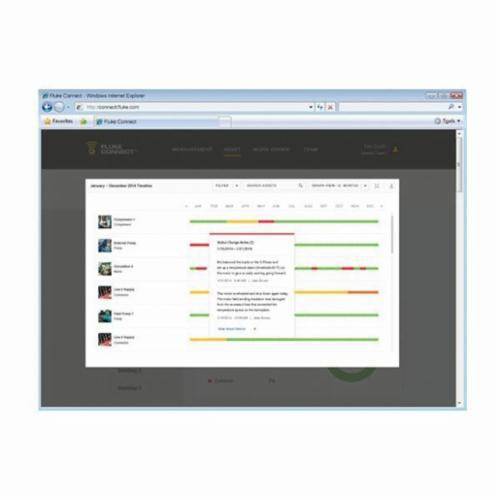

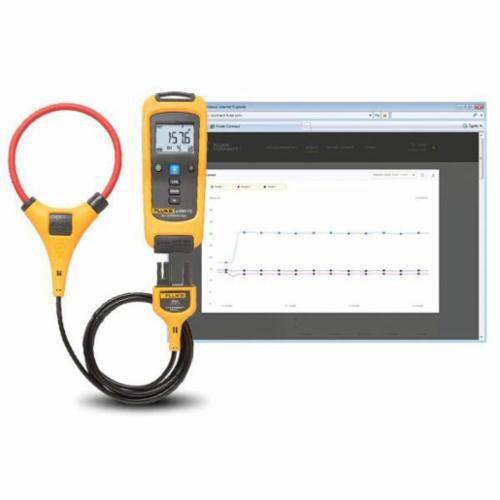

The Fluke® 3000 FC wireless test tools are a team and the modules are team players. You connect any of the Fluke® connect modules to your test point and then view the results on specific Fluke® connect enabled hardware or through windows software on your PC up to 20 m (65.6 ft) away. Save time and conduct more tests with less trips. Fluke® A3001 FC wireless iFlex® AC current module. A True-RMS current clamp meter that wirelessly relays measurements to other Fluke® connect enabled master units, listed below: Fluke® 3000 FC DMM Fluke® Ti200 300/400 infrared camera PC via optional PC3000 FC adapter Fluke® connect mobile app.

Fluke® iFlex® Wireless Clamp Meter Module, 2500 VAC, 0.5 to 2500 A, 2.4 GHz ISM RF Communications, 3.5 to 20 m RF Communication, LCD with Back Light Display, True RMS Flexible Current Meter/iFlex® i2500-10 Flexible Current Probe Contents, -10 to 50 deg C, AA Alkaline Battery, Memory: 65000 Readings, Safety Rating: CAT III 1000 VAC/CAT IV 600 VAC, IP42 Ingress Protection, 0.1 A Resolution, 3% +/-5 Digits (5 to 500 Hz) Accuracy, 3 at 1100 A Crest Factor, 2.5 in W x 1.4 in D x 6.5 in H Dimensions, 10 in Jaw Opening
MFG #: FLK-A3001FC

EECO #: FLFLKA3001FC

Brand: Fluke
UPC #: 095969723565
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
41113637
Accuracy
3% +/-5 Digits (5 to 500 Hz)
Approval
CSA, CE, FCC
Contents
True RMS Flexible Current Meter/iFlex® i2500-10 Flexible Current Probe
Resolution
0.1
Application
For true RMS current clamp meter that wirelessly relays measurements to other Fluke® connect enabled master units
Display Type
LCD with Back Light
Voltage Rating
2500
Temperature Rating
-10 to 50
Size
2.5 Inch Width x 1.4 Inch Depth x 6.5 Inch Height
Memory
65000 Readings
Warranty
3 years
Inclusion
(2) AA AlkalineBattery, (1) iFlex 10 Inch Coil, (1) Magnet Hanging Strap, Information Pack
Dimensions
2.5 in W x 1.4 in D x 6.5 in H
Jaw Opening
10
Battery Type
AA Alkaline
Safety Rating
CAT III 1000 VAC/CAT IV 600 VAC
Amperage Rating
0.5 to 2500
AC Current Range
0.5 to 2500 Amp
Parameter Measured
AC Current
Features
  • Up to 20 m open air, unobstructed, up to 6.5 m obstructed, sheetrock wall, up to 3.5 m obstructed, concrete wall or steel electrical enclosure
  • The iFlex® wireless current module allows you to measure around awkward sized conductors or get into tight spaces and makes wire access easier
  • Measure up to 2500 A AC
  • Use as a standalone meter or as part of the system
  • Logging function for recording and saving up to 65000 reading
  • Inrush function
  • Magnetic hanging strap
  • Two AA alkaline batteries, NEDA 15A, IEC LR6
  • 3 at 1100 A/2.5 at 1400 A/1.42 at 2500 A crest factor
  • Optical synchronization
  • Sensor gap monitoring, sequence monitoring, fixed blanking, object pattern recognition, object entry monitoring, detection of geometrically even objects
  • Reliable flying wood chips or small debris are filtered, preventing annoying false trips
  • Simple, for the access protection with automated material transport C4000 fusion differentiates between man and material
  • Skids are being detected, sporadic objects like dangling shrink wrap or pallet wood splinters are automatically suppressed
  • Cost effective, only one sender/receiver pair, ensures cost savings during mounting, wiring and service
  • Easily integrated, no secondary muting sensors necessary, only the OSSDs are implemented
  • Safe, also provides protection in areas in which there is no object, unlike conventional muting solutions
  • Flexible, individually adjustable to local conditions, sequence monitoring of defined objects of almost any size
  • Position monitoring using two single beams out of the curtain
  • The integrated EFI interface allows the
