nVent (Erico) CRLM50EG CADDY® Metal Decking Preset Anchor

Short Description

1/2" x 2.8", 7/8" Drill, Yellow, Electrogalvanized Steel, Rod Lock, Metal Decking Preset Anchor

Metal Decking Preset Anchor; Type Rod Lock; Head Type Hex; Anchor Size 1/2 Inch; Screw Length 2.4 Inch; Drill Size 7/8 Inch; Anchor Length 2.8 Inch; Material Steel; Finish Electrogalvanized; Load Rating 830 Pound; Washer Diameter 1.95 Inch; Anchor Dimension 5.7 Inch Height x 1-1/2 Inch Width; Color Yellow; Drilling Speed 700 to 900 RPM; Application Rod Lock Threaded Rod Mounting System; Approval FM, ICC-ES ESR-3864

MFG #: CRLM50EG

EECO #: EQCRLM50EG

Brand: Erico/Caddy
UPC #: 782856793908
Attributes
Features
Documents
Product Information
Attributes
Finish
Electrogalvanized
UNSPSC
31162100
Material
Steel
Head Type
Hex
Type
Rod Lock
Drill Size
7/8 Inch
Anchor Size
1/2 Inch
Load Rating
830 Pound
Screw Length
2.4 Inch
Anchor Length
2.8 Inch
Features

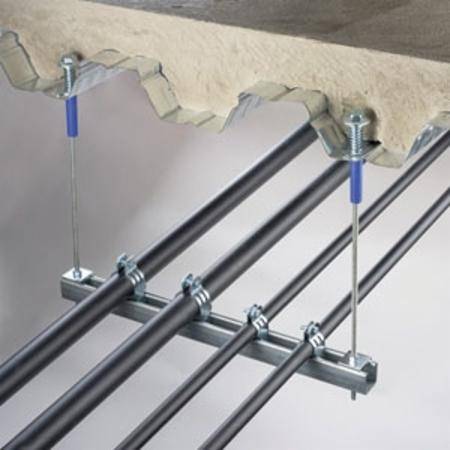

  • Set in Place Through a Drilled Hole in the Metal Decking Before the Concrete is Poured
  • Eliminate Overhead Drilling into Building Structure - nVent Caddy Rod Lock Preset Anchors are Cast in Place
  • Easy "Push-To-Install" Design Allows Installers to Simply Push the Threaded Rod Through the Mounting Hole, Instantly Holding it in Position
  • Can be Used in Lower and Upper Flute Installations
  • Works with Slightly Damaged Threads and Minor Burrs on the Threaded Rod
  • Prefabricated Assemblies Easily Lift and Lock Into Place, Helping to Save Time and Money
  • Plastic Flange Acts as Insert Locator when the Forms are Removed
  • Suitable for Seismic Bracing
  • Color-Coded to Help to Identify the Size
  • No Need for Overhead Drilling or Power Tool
ERICOIE15510_1_2
ERICOIE16589_276
ERICOIE16601_1
ERICOIINST00218
