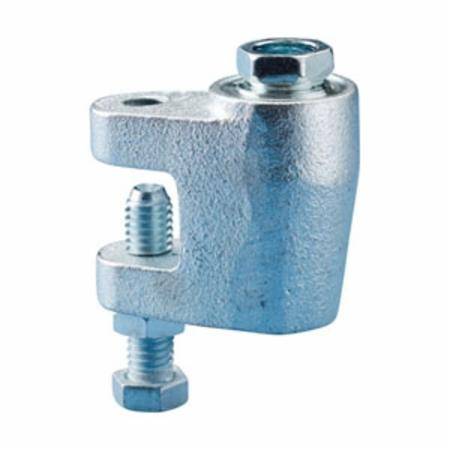

nVent (Erico) CRLB50EG CADDY® Beam Clamp
Share Share Print Print
nVent

nVent (Erico) CRLB50EG CADDY® Beam Clamp

Short Description

1/2" Rod, 3/8 to 3/4" Jaw Capacity, 1100 Lb, Electrogalvanized Cast Iron, Hex Head Screw, Rod Lock, Thick Flange, Beam Clamp

Beam Clamp; Type Rod Lock, Thick Flange; Minimum Jaw Capacity 3/8 Inch; Maximum Jaw Capacity 3/4 Inch; Supplied with Screw Yes; Screw Type Hex Head; Load Capacity 1100 Pound (Static Load); Material Cast Iron; Finish ASTM B633 Electrogalvanized; Application Rod Lock Threaded Rod Mounting System; Overall Dimension 2.4 Inch Length x 1.3 Inch Width x 2.1 Inch Height; Jaw Depth 1 Inch; Rod Size 1/2 Inch; Applicable Standard ANSI/MSS-SP-58 Type 19/23, ANSI WW-H-171 Type 23, UL (Canada and US), FM

MFG #: CRLB50EG

EECO #: EQCRLB50EG

Brand: Erico/Caddy
UPC #: 782856793922
Attributes
Features
Documents
Product Information
Attributes
Finish
ASTM B633 Electrogalvanized
UNSPSC
31162905
Material
Cast Iron
Application
Rod Lock Threaded Rod Mounting System
Type
Rod Lock, Thick Flange
Screw Type
Hex Head
Load Capacity
1100 Pound (Static Load)
Maximum Jaw Capacity
3/4 Inch
Minimum Jaw Capacity
3/8 Inch
Features
  • Prefabricated Assemblies Easily Lift and Lock into Place, Helping to Save Time and Money
  • Easy "Push-To-Install" Design Allows Installers to Simply Push the Threaded Rod Through the Mounting Hole, Instantly Holding it in Position
  • Lock Nut can be Finger Tightened, Locking the Rod in Place: Works with Slightly Damaged Thread and Minor Burr on the Threaded Rod
  • Used On Plain, Electro Zinc Plated Hardware
ERICOIE02869_1
ERICOIE16589_274
ERICOIINST00216
