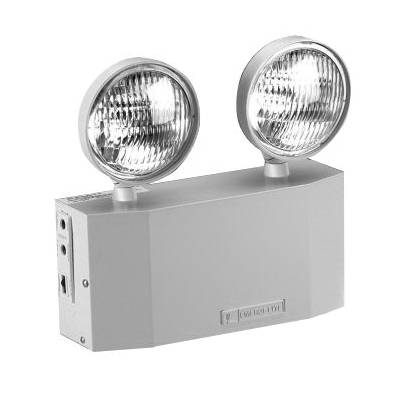

Emergi-Lite® JSC18-0 JS Series Emergency Lighting Unit, 9 W PAR36 Incandescent Lamp, 120/277 VAC, 6 VDC, Steel
Share Share Print Print
ABB

Emergi-Lite® JSC18-0 JS Series Emergency Lighting Unit, 9 W PAR36 Incandescent Lamp, 120/277 VAC, 6 VDC, Steel

Short Description

The JS series is an excellent combination of economy and quality the best offered in the industry. This unit is compact, all metal, with a hinged door, and choice of battery. Each unit is self-contained and furnished standard with fully automatic charger and sealed relay, sealed maintenance-free battery, dual voltage transformer, low voltage battery disconnect, lockout, brownout, test switch, LED pilot light supervision and highly efficient light source.

Emergi-Lite® Emergency Lighting Unit, Series: JS Series, 120/277 VAC, 6 VDC, 18 W Fixture, 0.3/0.15 A, 60 Hz Frequency, PAR36 Incandescent Lamp, 9 W Lamp, Wedge Base, Ni-Cd Battery Power Source, 11 in W x 3-1/2 in D Dimensions, Steel, Off-White
MFG #: JSC18-0

EECO #: ELJSC180

Brand: Emergi-Lite
UPC #: 782683054159
Attributes
Features
Documents
Product Information
Attributes
Color
Off-White
UNSPSC
39111709
Material
Steel
Lamp Type
PAR36 Incandescent
Voltage Rating
120/277 VAC, 6 VDC
Frequency Rating
60
Series
JS Series
Base Type
Wedge
Dimensions
11 in W x 3-1/2 in D
Lamp Wattage
9
Amperage Rating
0.3/0.15
Features
  • With sealed dustproof transfer relay, test switch, diagnostic LED indicator light, electronic lockout, brownout circuit
  • 0.3 A at 120 VAC, 0.15 A at 277 VAC
Emergi_Lite_12JSM36_0_Catalog
Emergi_Lite_JSC18_0_Specification_Sheet
