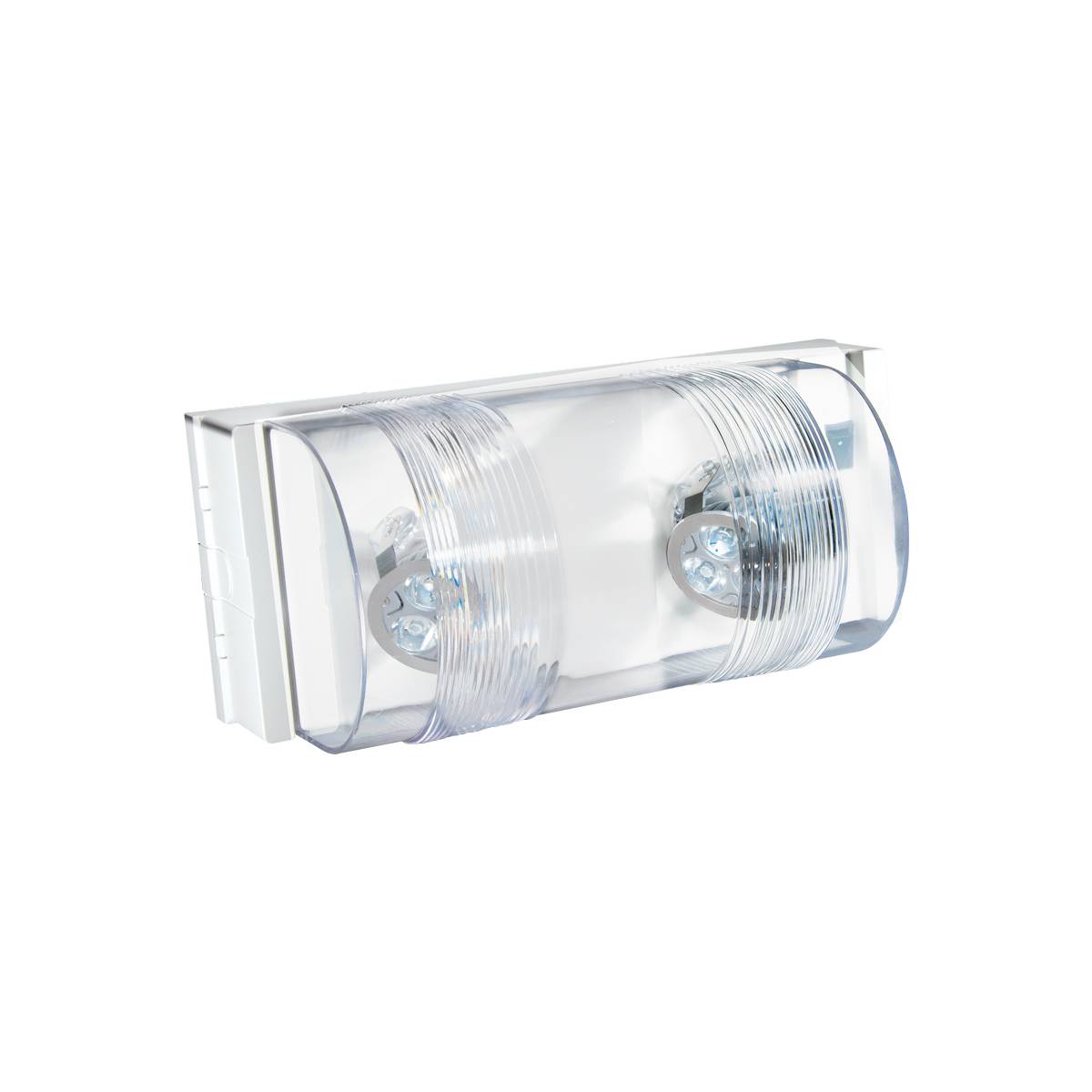

Emergi-Lite® CPRO-2N-U/LA CPRO-2N/Provider™ Series Self-Powered Shielded Head Emergency Lighting Battery Unit, 4 W LED/MR16 Lamp, 120/347 VAC, 2 Heads, Thermoplastic
Share Share Print Print
ABB

Emergi-Lite® CPRO-2N-U/LA CPRO-2N/Provider™ Series Self-Powered Shielded Head Emergency Lighting Battery Unit, 4 W LED/MR16 Lamp, 120/347 VAC, 2 Heads, Thermoplastic

Short Description

The Provider® series emergency lighting system has fully automatic equipment with two emergency lighting heads. The emergency lighting heads require no tools for adjusting or aiming.

Emergi-Lite® Emergency Lighting Battery Unit, Self-Powered Shielded Head, Series: CPRO-2N/Provider™ Series, 120/347 VAC, 0.03/0.08 A, LED/MR16 Lamp, 4 W Lamp, 2 Heads, 50000 hr Average Life, 36 W, 6 VDC Lead Calcium Battery Power Source, Wall Mounting, 5 in H x 11-3/4 in W x 5-7/8 in D Dimensions, Thermoplastic, Factory White
MFG #: CPRO-2N-U/LA

EECO #: ELCPRO2NU/LA

Brand: Emergi-Lite
UPC #: 782683476449
Attributes
Features
Documents
Product Information
Attributes
Color
Factory White
UNSPSC
39111709
Material
Thermoplastic
Lamp Type
LED/MR16
Application
Institutional, Commercial and Hospitality Applications
Mounting Type
Wall
Voltage Rating
120-347
Type
Self-Powered Shielded Head
Series
CPRO-2N/Provider™ Series
Dimensions
5 in H x 11-3/4 in W x 5-7/8 in D
Lamp Wattage
4
Amperage Rating
0.03/0.08
Features
  • With emergency lighting head, low voltage battery disconnect, brownout protection, integral test switch, long-life LED AC on pilot lights, sealed transfer circuit, auto-diagnostics
  • Injection molded, impact, scratch and corrosion-resistant thermoplastic with a snap together design
  • Compact and versatile unit can be wall or ceiling mounted
  • Maintenance-free, long-life sealed lead-calcium battery
  • Fast and easy installation - AC quick-connect plug, battery knockout feature
  • Fully automatic, solid state charger
  • Charger is temperature compensated and reverse polarity protected
  • 0.08 A at 120 VAC, 0.03 A at 347 VAC
