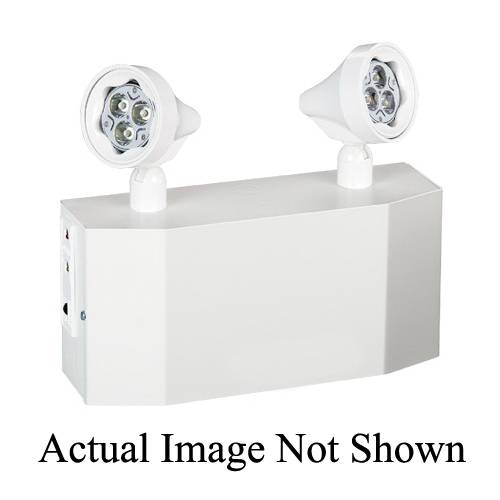

Emergi-Lite® 12JSC36-0 12JSC36/JS Series Commercial Spec Grade Small Emergency Lighting Battery Unit, 9 W Incandescent Lamp, 120/277 VAC, Steel
Share Share Print Print
ABB

Emergi-Lite® 12JSC36-0 12JSC36/JS Series Commercial Spec Grade Small Emergency Lighting Battery Unit, 9 W Incandescent Lamp, 120/277 VAC, Steel

Short Description

For maximum versatility, the JS series steel housing emergency lighting battery unit accommodates a wide range of lamp heads and lamps and even has a front mounted head option for low ceiling installations. Available in 6 and 12 V models with up to 54 W capacity.

Emergi-Lite® Emergency Lighting Battery Unit, Commercial Spec Grade Small, Series: 12JSC36/JS Series, 120/277 VAC, 0.3/0.15 A, 60 Hz Frequency, Incandescent Lamp, 9 W Lamp, Wedge Base, 36 W, 12 VDC Ni-Cd Battery Power Source, Ceiling/Surface Mounting, 11-3/8 in H x 11-1/4 in W x 3-1/2 in D Dimensions, Steel, Off-White
MFG #: 12JSC36-0

EECO #: EL12JSC360

Brand: Emergi-Lite
UPC #: 782683081865
Attributes
Features
Documents
Product Information
Attributes
Color
Off-White
UNSPSC
39111709
Material
Steel
Lamp Type
Incandescent
Mounting Type
Ceiling/Surface
Voltage Rating
120/277
Frequency Rating
60
Type
Commercial Spec Grade Small
Series
12JSC36/JS Series
Warranty
3 years Limited
Base Type
Wedge
Dimensions
11-3/8 in H x 11-1/4 in W x 3-1/2 in D
Lamp Wattage
9
Amperage Rating
0.3/0.15
Features
  • With PulsePlus charger, (2) EF-18 PAR36 heads 9 W high intensity incandescent lamps
  • Provides impressive center-to-center spacing of up to 100 ft (LJ lamps at a mounting height of 7 ft)
  • Uses highly efficient, reliable MR16 LED lamps in a choice of wattages
  • Durable steel housing in standard mist white finish, accommodates ceiling or wall mounting, universal J-box mounting
  • 0.3 A at 120 VAC, 0.15 A at 277 VAC
Emergi_Lite_12JSC36_0_Catalog
Emergi_Lite_12JSC36_0_Manual
