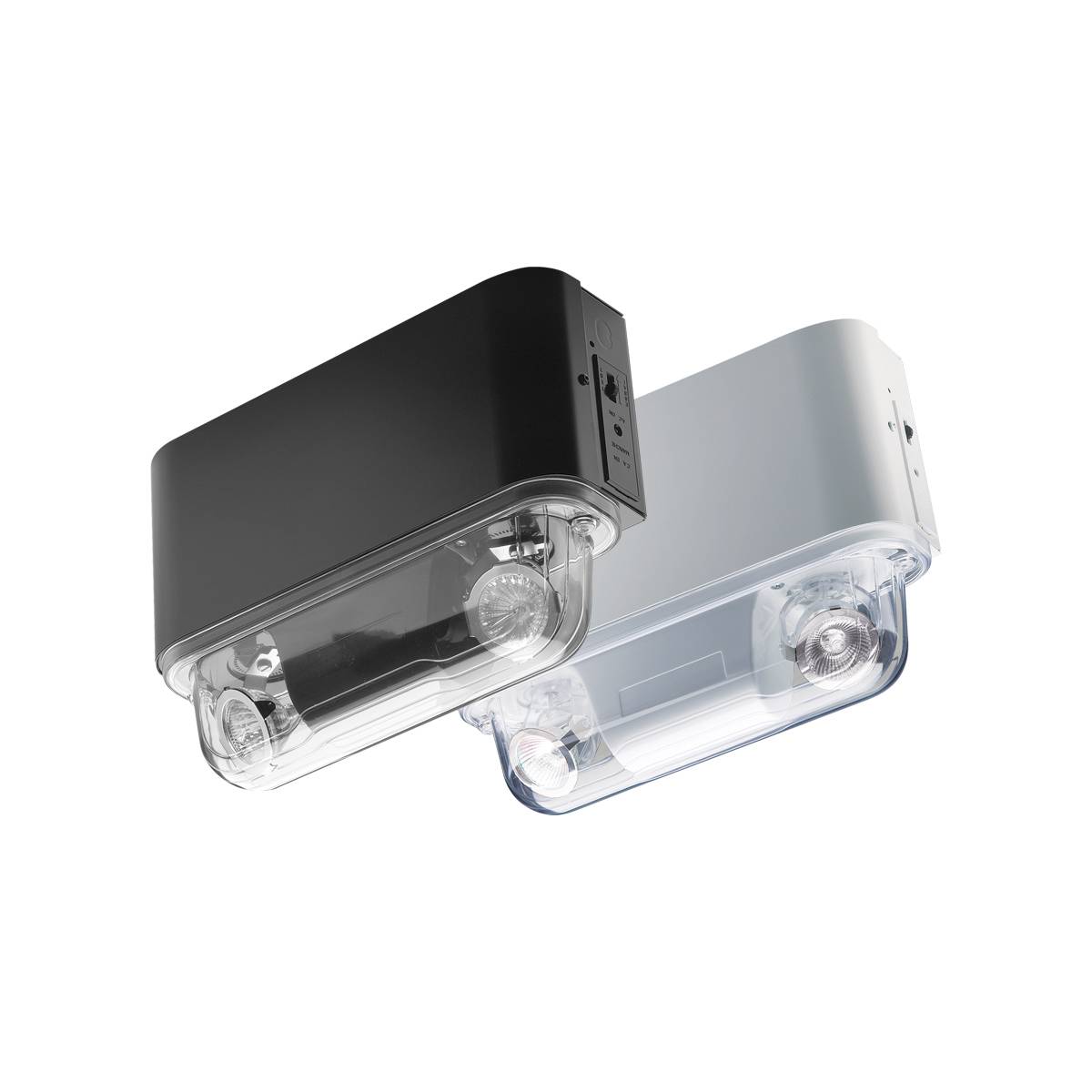

Emergi-Lite® 12JMLA72BK/2LG 12JMLA/JMLA Series Decorative Self-Powered Shielded Head Emergency Light Unit, 4 W LED/MR16 Lamp, 120/347 VAC, 2 Heads, Steel
Share Share Print Print
ABB

Emergi-Lite® 12JMLA72BK/2LG 12JMLA/JMLA Series Decorative Self-Powered Shielded Head Emergency Light Unit, 4 W LED/MR16 Lamp, 120/347 VAC, 2 Heads, Steel

Short Description

The JMLA series decorative battery units combine a contemporary design, energy efficiency and state-of-the-art path of egress illumination. Designed to meet the needs of interior design professionals while providing the latest in high-tech security capability, the JMLA series can illuminate up to 70 ft, center-to-center.

Emergi-Lite® Emergency Light Unit, Decorative Self-Powered Shielded Head, Series: 12JMLA/JMLA Series, 120/347 VAC, 0.1/0.31 A, 60 Hz Frequency, LED/MR16 Lamp, 4 W Lamp, 2 Heads, 72 W, 12 VDC Lead Calcium Battery Power Source, Wall Mounting, 9 in H x 12-3/4 in W x 3-3/8 in D Dimensions, Steel, Black
MFG #: 12JMLA72BK/2LG

EECO #: EL12JMLA72BK/2LG

Brand: Emergi-Lite
UPC #: 782683534026
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39111709
Material
Steel
Lamp Type
LED/MR16
Application
Institutional, Commercial and Hospitality Applications
Mounting Type
Wall
Voltage Rating
120-347
Frequency Rating
60
Type
Decorative Self-Powered Shielded Head
Series
12JMLA/JMLA Series
Dimensions
9 in H x 12-3/4 in W x 3-3/8 in D
Lamp Wattage
4
Amperage Rating
0.1/0.31
Features
  • With electronic lockout, brownout circuits, sealed dustproof transfer relay, test switch, diagnostics LED indicator light, emergency lighting heads, auto-test diagnostics micro-controller board
  • Rugged steel cabinet with corrosion-resistant undercoating
  • Removable front panel on cabinet provides easy access and allows the unit to be mounted at ceiling height
  • Solid state pulse type charger - current limited, temperature compensated, short circuit proof and reverse polarity protected
  • Long-life, maintenance-free lead-acid battery
  • High-performance path of egress illumination, contemporary design and energy efficiency
  • 0.31 A at 120 VAC, 0.1 A at 347 VAC
