Eaton Wiring Devices TWRSGF20W TWRSGF Tamper/Weather-Resistant Duplex GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White

Short Description

125 VAC, 20 A, 2-Pole, 3-Wire, 5-20R, White, Nylon Top, PVC Bottom, Back, Side Wired, Specification Grade, Duplex, Feed-Through, GFCI Duplex Receptacle

Eaton Wiring Devices Duplex GFCI Receptacle, Tamper/Weather-Resistant, Series: TWRSGF, 125 VAC, 20 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Specification Grade, -35 to 66 deg C, Back/Side Wire Terminal, Polypropylene, White, 4.2 in H x 1.68 in W x 1.27 in D Dimensions

MFG #: TWRSGF20W

EECO #: EATWRSGF20W

Brand: Eaton Wiring Devices
UPC #: 032664743030
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
39121406
Wiring
Back, Side
Approval
UL 498/943, UL (Canada and US), CSA, NOM 426
Material
Polypropylene
Terminal Type
Back/Side Wire
Current Rating
20 Amp
Voltage Rating
125
Number Of Poles
2
Number of Wires
3
Frequency Rating
60
Temperature Rating
-35 to 66
Type
Tamper/Weather-Resistant
Grade
Specification
Series
TWRSGF

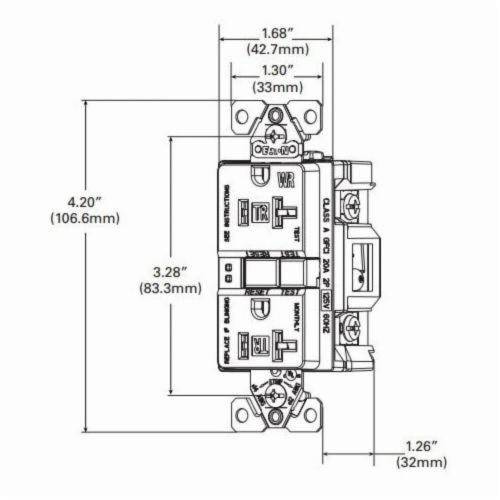

Dimensions
4.2 in H x 1.68 in W x 1.27 in D
Configuration
5-20R
Amperage Rating
20
Features
  • Meets and exceeds 10 kA short circuit testing and underwriters laboratories (UL) 2006 UL943 safety standards
  • Performs periodic self tests to ensure integrity of GFCI protection if no ground fault protection is detected, the device will trip, will not reset and the status indicator light will glow amber
  • Tapered backwire openings handle multiple wire sizes and types for applications up to 10 AWG solid or stranded wire
  • When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
  • Test and reset buttons are color matched to provide superior aesthetics
  • Longer, wider "bridge" strap provides 40% more contact area with wallboard, virtually eliminating floating installations
  • Exclusive built-in wire stripper provides fast stripping of wire without tools
  • Line-load miswiring protection GFCIs will not provide power downstream when wired incorrectly
  • Tri-combo head terminal and mounting screws
  • Withstands 2000V per UL498 dielectric voltage
  • Full rated current current interrupting
  • Maximum 30 deg C after 100 cycles of overload at 150 percent of rated current (DC) temperature rise
  • 0.025 seconds (class A) trip time
  • Meets and exceeds 10 kA short circuit testing
  • 20 A maximum interrupting capacity
  • 14 to 10 AWG terminal accommodation
  • Thermoplastic, polypropylene top housing, thermoplastic, PVC bottom housing
  • 0.047 in thick steel, zinc plated strap, 0.03 in thick brass line contacts
  • Brass/nickel-plated steel terminal screw, brass plated steel terminal clamps, ground screw green
COOPERE00690_H6_H7_H16
COOPERE00847_1
COOPERE01441_1_6
COOPERINST00073
Qty Unit price
Ea
1 $26.04

Slqt
1 $26.04

Stpk
1 $260.40

Unit
1 $26.04
