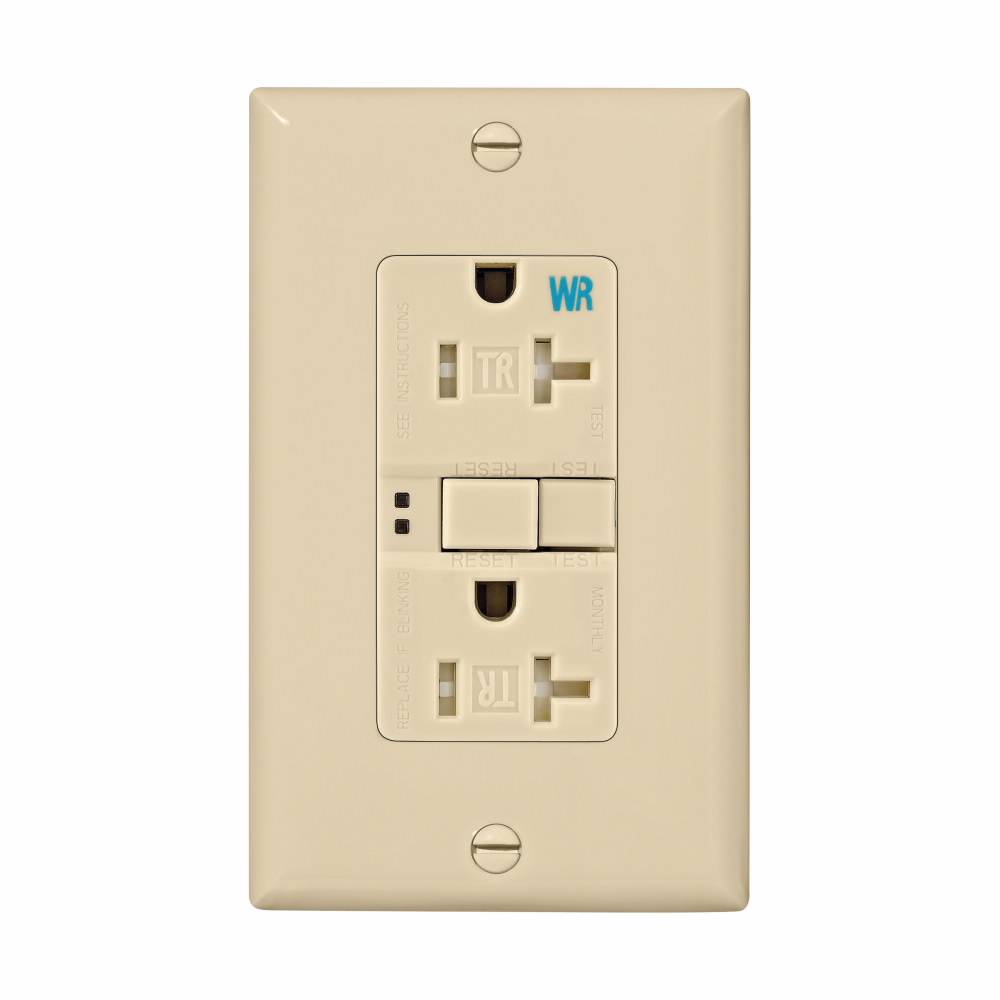

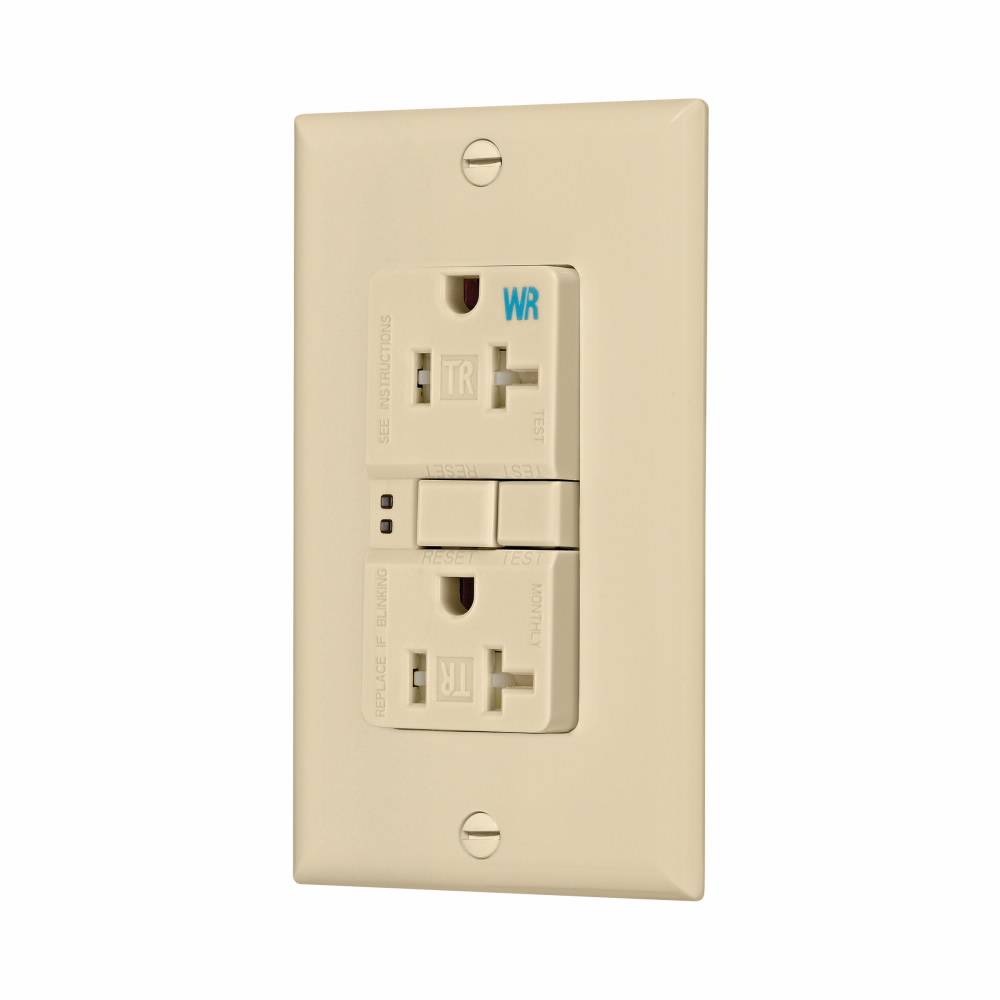

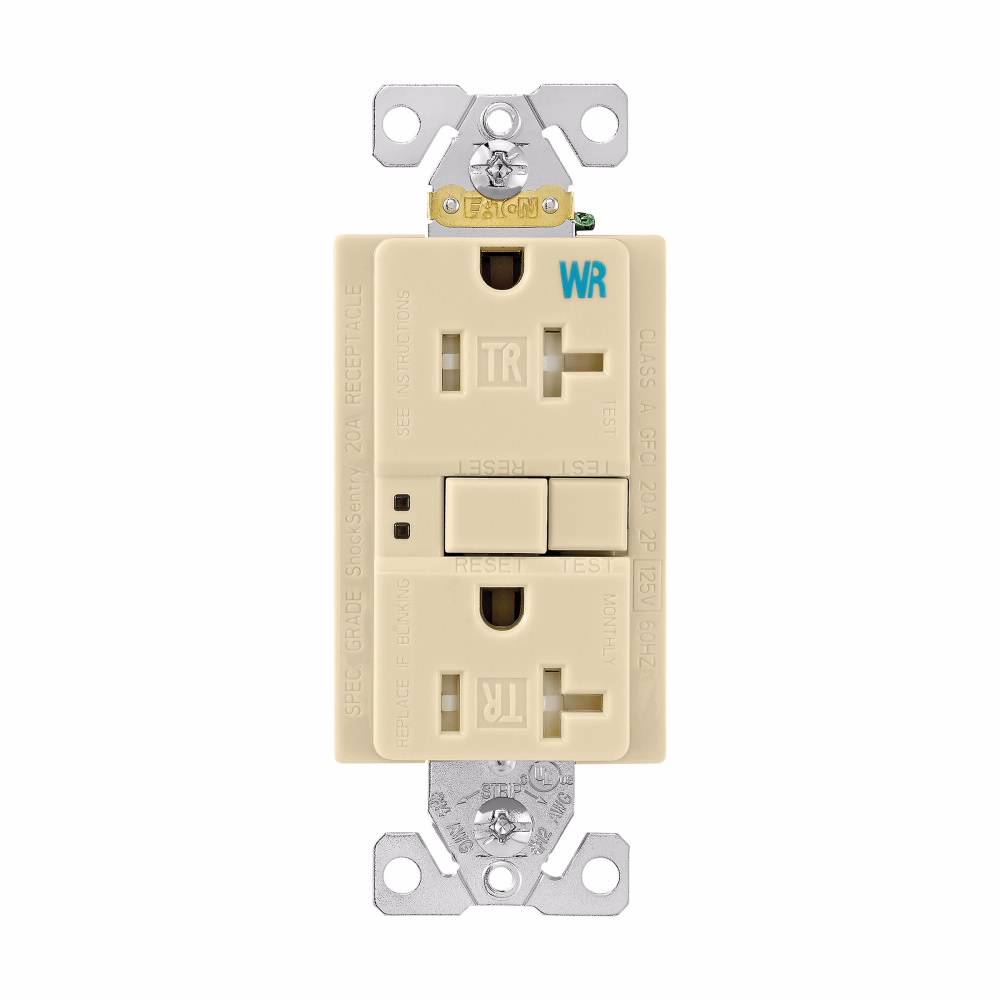

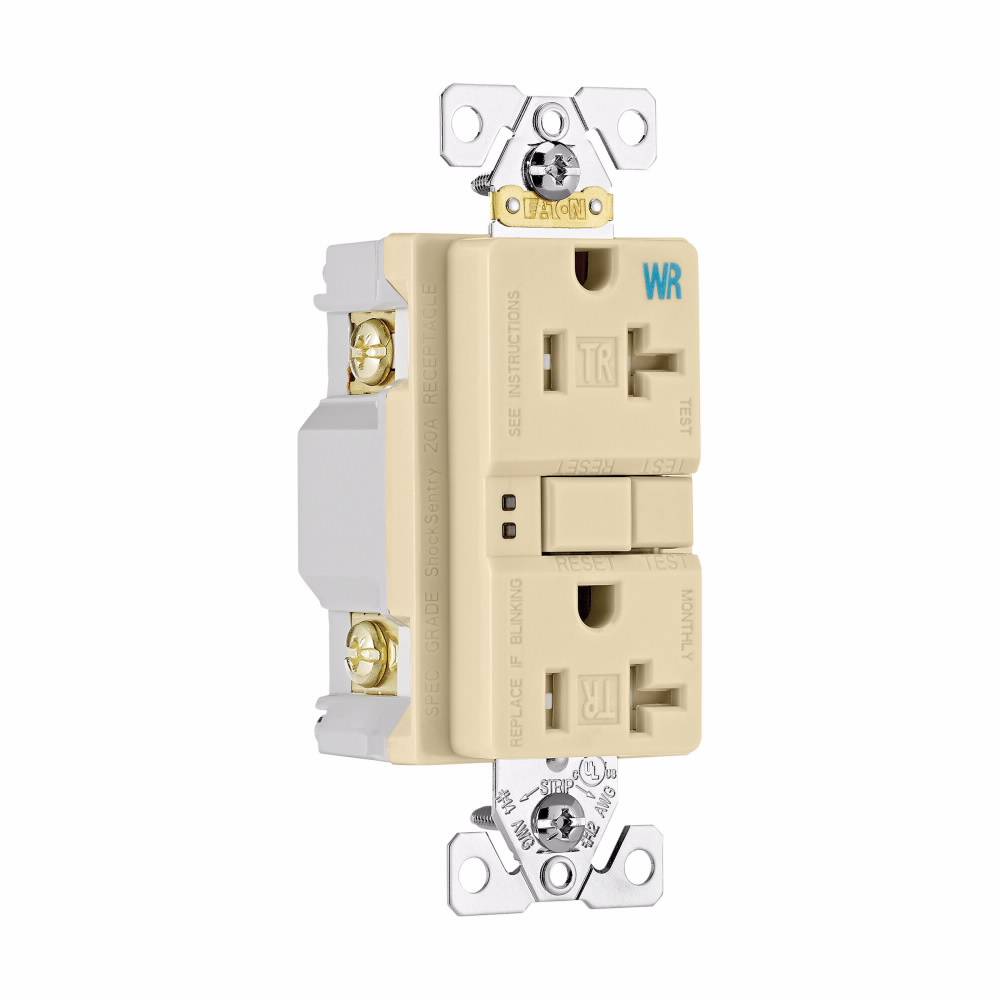

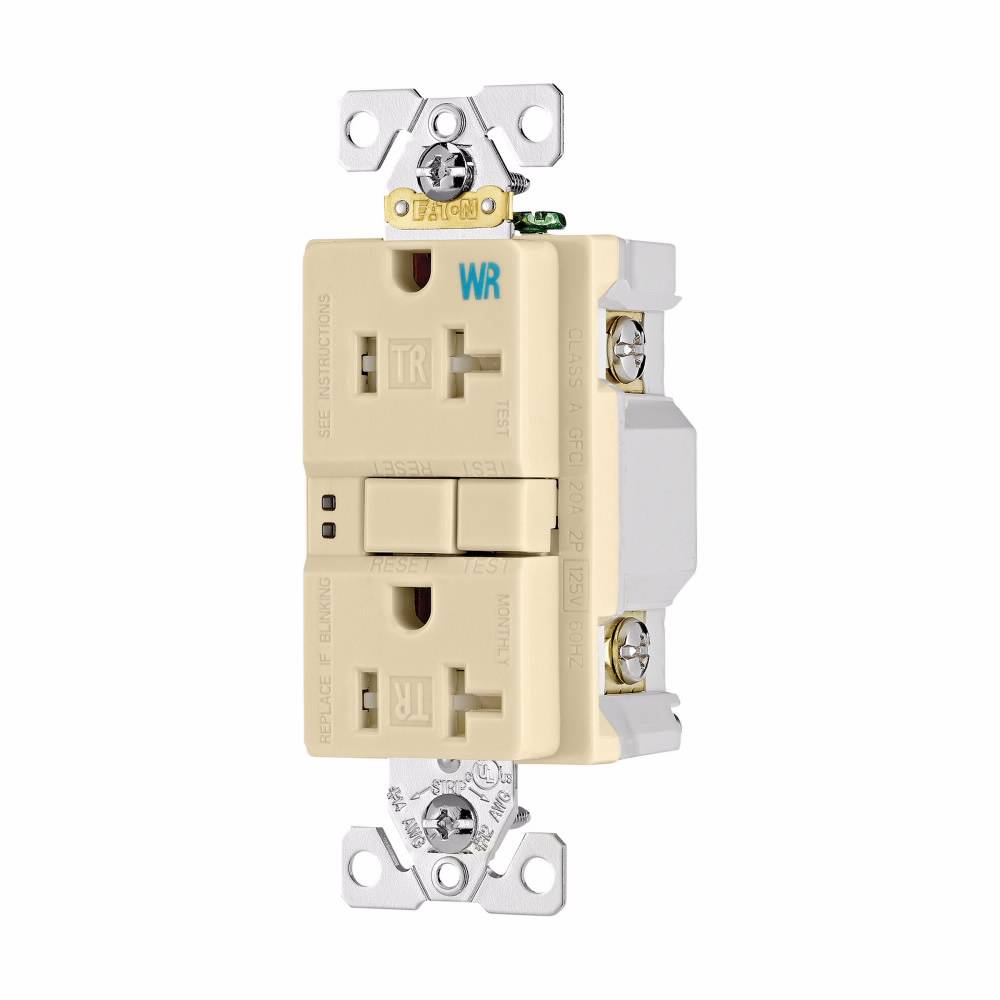

Eaton Wiring Devices TWRSGF20V TWRSGF Tamper/Weather-Resistant Duplex GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory

Short Description

Eaton Ground Fault Circuit Interrupter (GFCI) receptacles are circuit interrupters designed to recognize a ground fault in your wiring and immediately break the flow of electricity, thus protecting you from electrical shock. Further, they prevent re-setting if, once tripped, the ground fault renders the device no longer functional. Eaton GFCIs are tested to the highest standards and provide dependable, state-of-the-art protection suitable for residential, commercial and industrial settings, including homes, offices, hospitals, schools and even outdoor applications. When combined with Eatons AFCI technology, Eaton ground fault circuit interrupter receptacles provide fire and electrical safety in one device (AF/GF) and are also available in breakers.

Eaton Wiring Devices Duplex GFCI Receptacle, Tamper/Weather-Resistant, Series: TWRSGF, 125 VAC, 20 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Specification Grade, -35 to 66 deg C, Back/Side Wire Terminal, Polypropylene, Ivory, 4.2 in H x 1.68 in W x 1.27 in D Dimensions

MFG #: TWRSGF20V

EECO #: EATWRSGF20V

Brand: Eaton Wiring Devices
UPC #: 032664743025
Attributes
Features
Documents
Product Information
Attributes
Color
Ivory
UNSPSC
39121406
Wiring
Back, Side
Approval
UL 498/943, UL (Canada and US), CSA, NOM 426
Material
Polypropylene
Application
Commercial, Institutional Buildings, Structures and Other Applications
Terminal Type
Back/Side Wire
Current Rating
20 Amp
Voltage Rating
125
Number Of Poles
2
Number of Wires
3
Frequency Rating
60
Temperature Rating
-35 to 66
Type
Tamper/Weather-Resistant
Grade
Specification
Series
TWRSGF
Dimensions
4.2 in H x 1.68 in W x 1.27 in D
Configuration
5-20R
Amperage Rating
20
Features
  • Meets and exceeds 10 kA short circuit testing and underwriters laboratories (UL) 2006 UL943 safety standards
  • Performs periodic self tests to ensure integrity of GFCI protection if no ground fault protection is detected, the device will trip, will not reset and the status indicator light will glow amber
  • Tapered backwire openings handle multiple wire sizes and types for applications up to 10 AWG solid or stranded wire
  • When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
  • Test and reset buttons are color matched to provide superior aesthetics
  • Longer, wider "bridge" strap provides 40% more contact area with wallboard, virtually eliminating floating installations
  • Exclusive built-in wire stripper provides fast stripping of wire without tools
  • Line-load miswiring protection GFCIs will not provide power downstream when wired incorrectly
  • Tri-combo head terminal and mounting screws
  • Withstands 2000V per UL498 dielectric voltage
  • Full rated current current interrupting
  • Maximum 30 deg C after 100 cycles of overload at 150 percent of rated current (DC) temperature rise
  • 0.025 seconds (class A) trip time
  • Meets and exceeds 10 kA short circuit testing
  • 20 A maximum interrupting capacity
  • 14 to 10 AWG terminal accommodation
  • Thermoplastic, polypropylene top housing, thermoplastic, PVC bottom housing
  • 0.047 in thick steel, zinc plated strap, 0.03 in thick brass line contacts
  • Brass/nickel-plated steel terminal screw, brass plated steel terminal clamps, ground screw green
