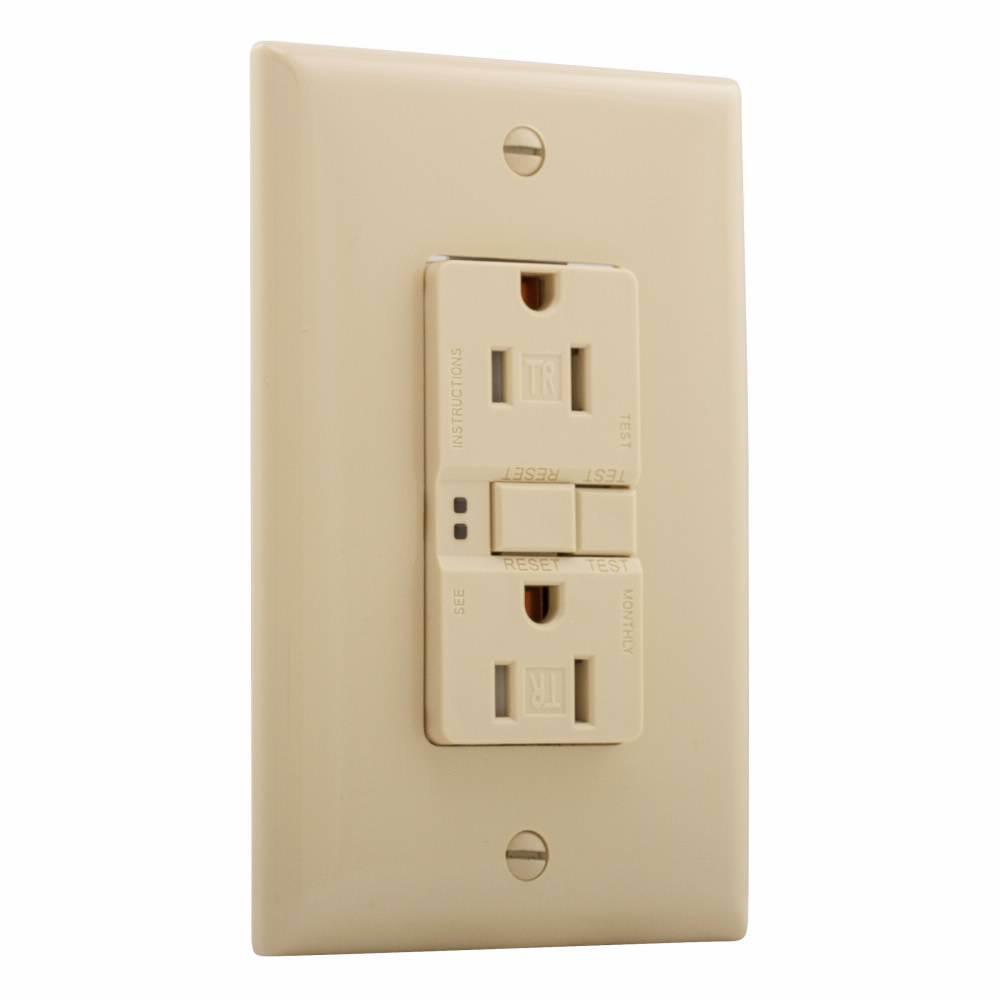

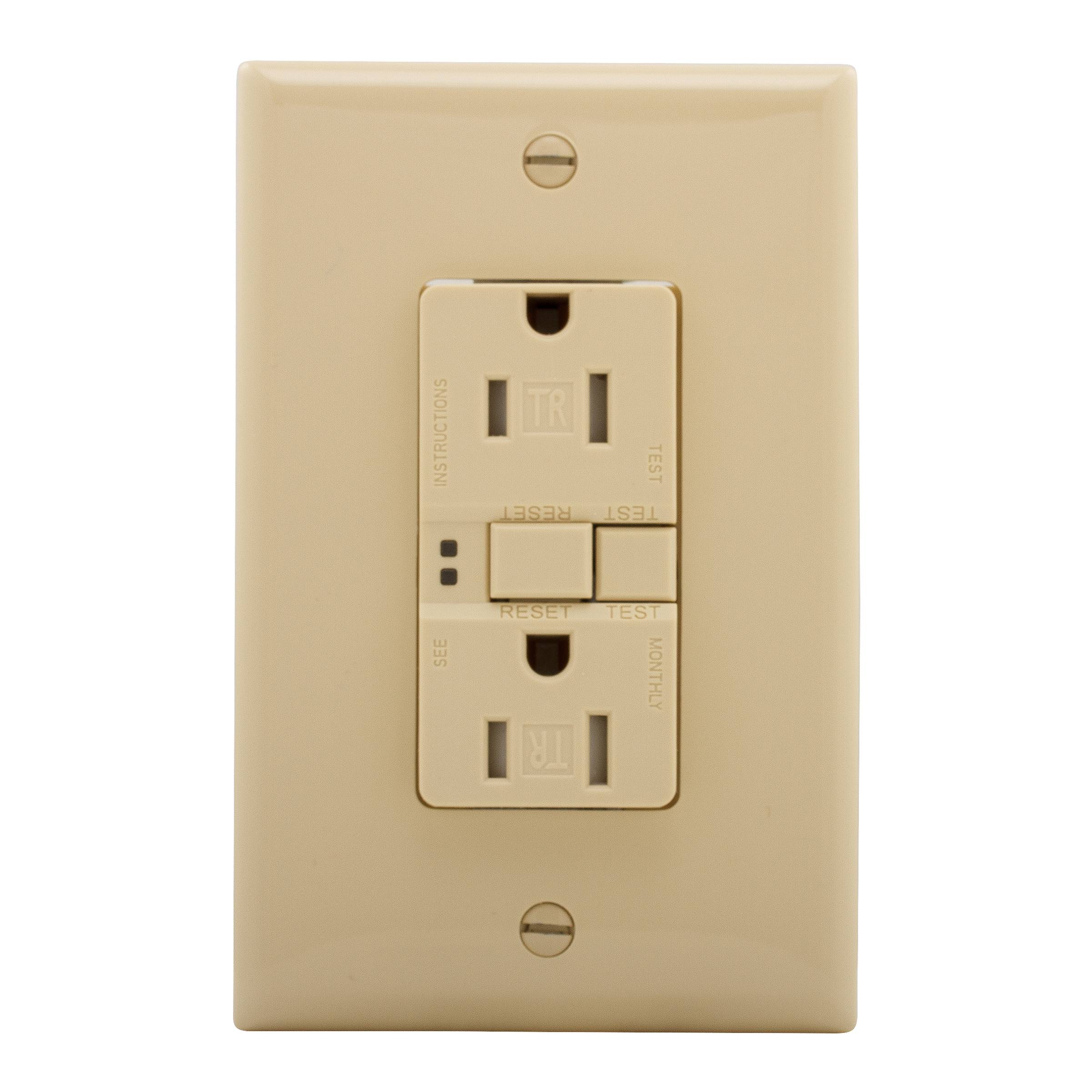

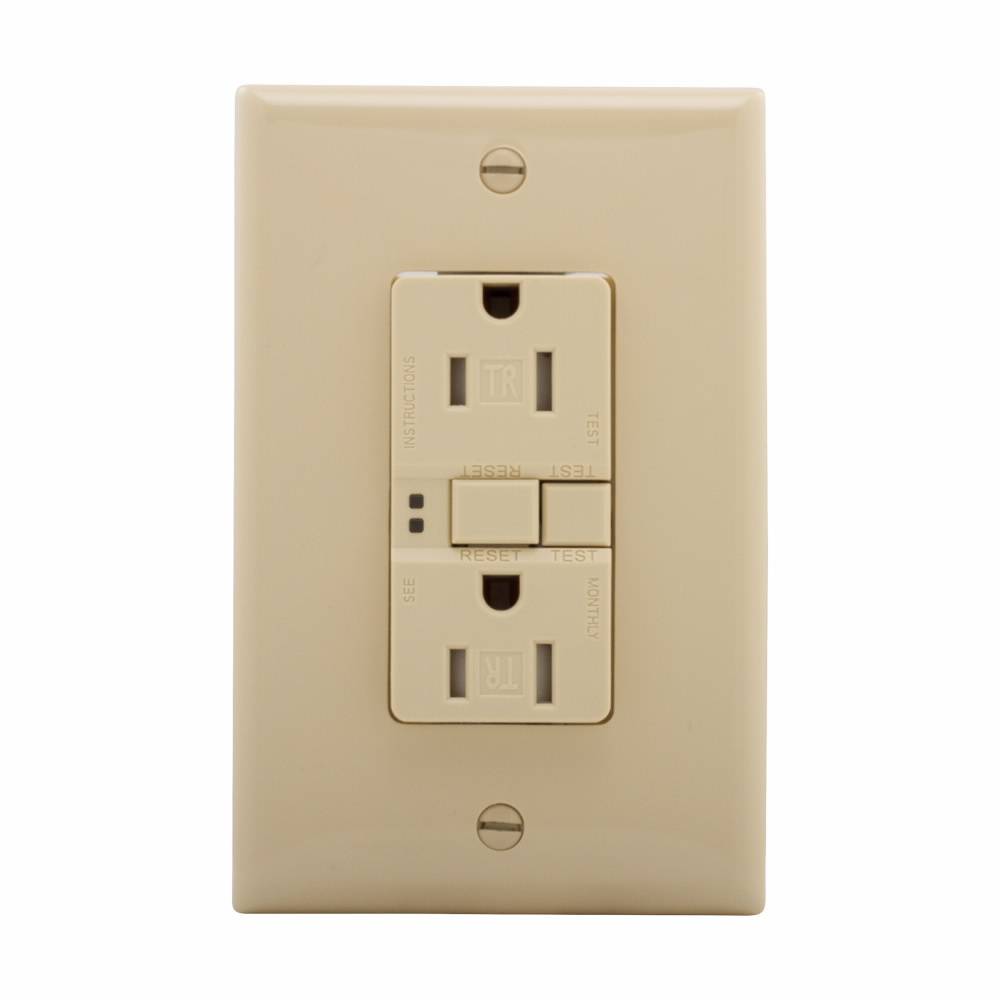

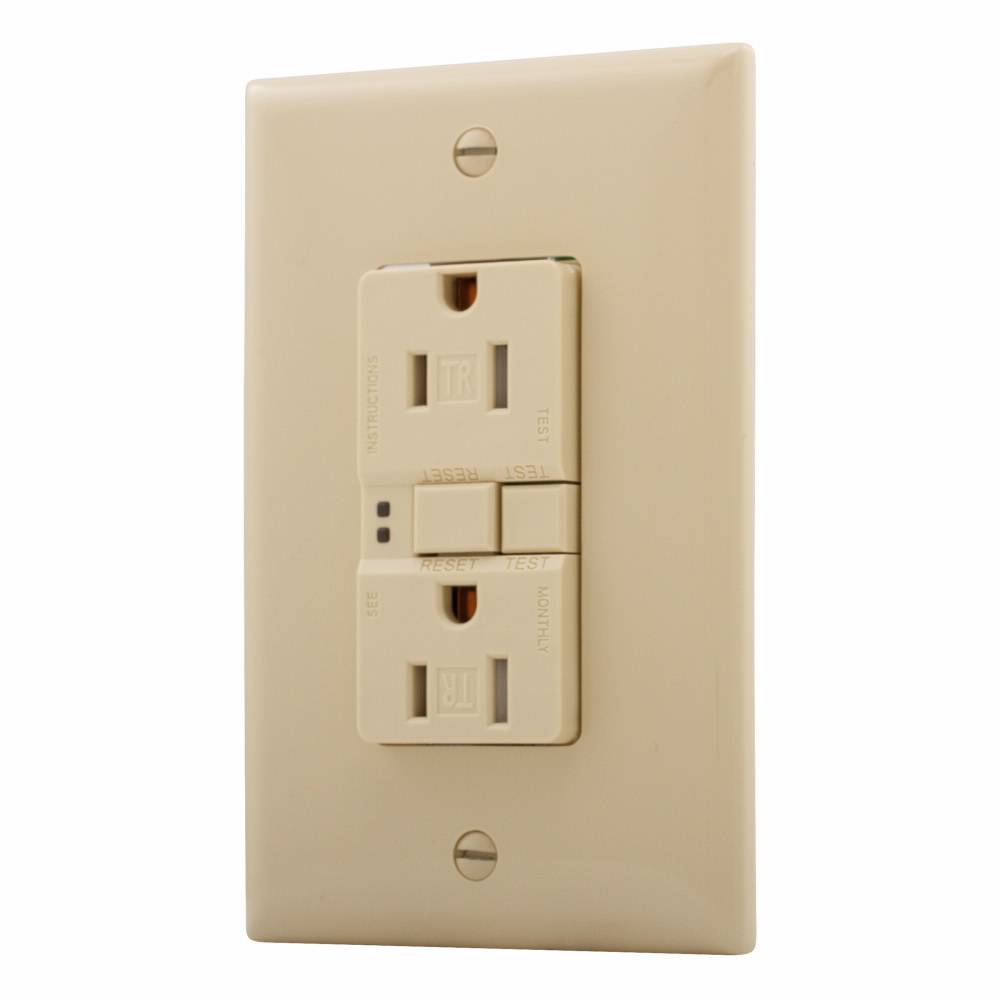

EATON Eaton Wiring Devices TRSGF15V-M Duplex Self-Test Tamper-Resistant GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory

Short Description

Eaton Ground Fault Circuit Interrupter (GFCI) receptacles are circuit interrupters designed to recognize a ground fault in your wiring and immediately break the flow of electricity, thus protecting you from electrical shock. Further, they prevent re-setting if, once tripped, the ground fault renders the device no longer functional. Eaton GFCIs are tested to the highest standards and provide dependable, state-of-the-art protection suitable for residential, commercial and industrial settings, including homes, offices, hospitals, schools and even outdoor applications. When combined with Eatons AFCI technology, Eaton ground fault circuit interrupter receptacles provide fire and electrical safety in one device (AF/GF) and are also available in breakers.

EATON Wiring Devices GFCI Receptacle, Duplex Self-Test Tamper-Resistant, 125 VAC, 15 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Specification Grade, -31 to 150.8 deg F, Back/Side Wire Terminal, Brass/Polycarbonate, Ivory, 2.01 in L x 3.26 in W x 6.01 in H Dimensions

MFG #: TRSGF15V-M

EECO #: EATRSGF15VM

Brand: Eaton
UPC #: 032664742880
Attributes
Features
Documents
Product Information
Attributes
Color
Ivory
UNSPSC
39121633
Wiring
Back, Side
Approval
UL 498/943, UL (Canada and US), CSA, NOM 426
Material
Brass/Polycarbonate
Application
Residential Buildings, Facilities and Other Applications
Terminal Type
Back/Side Wire
Current Rating
15 amp
Voltage Rating
125
Number Of Poles
2
Number of Wires
3
Frequency Rating
60
Temperature Rating
-31 to 150.8
Type
Duplex Self-Test Tamper-Resistant
Grade
Specification
Includes
Mid-Size Wallplate
Dimensions
2.01 in L x 3.26 in W x 6.01 in H
Configuration
5-15R
Amperage Rating
15
Features
  • Visual indicator lights give quick notification of a tripped or end of life condition
  • Automatically self tests periodically to ensure GFCI protection
  • Rugged construction provides unsurpassed chemical and impact-resistant
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Ground termination with back wire clamp provides secure wiring and reduces installation time
  • Line side terminals are backed out and staked for fast installation
  • Horizontal test/reset button alignment provides larger unobstructed area
