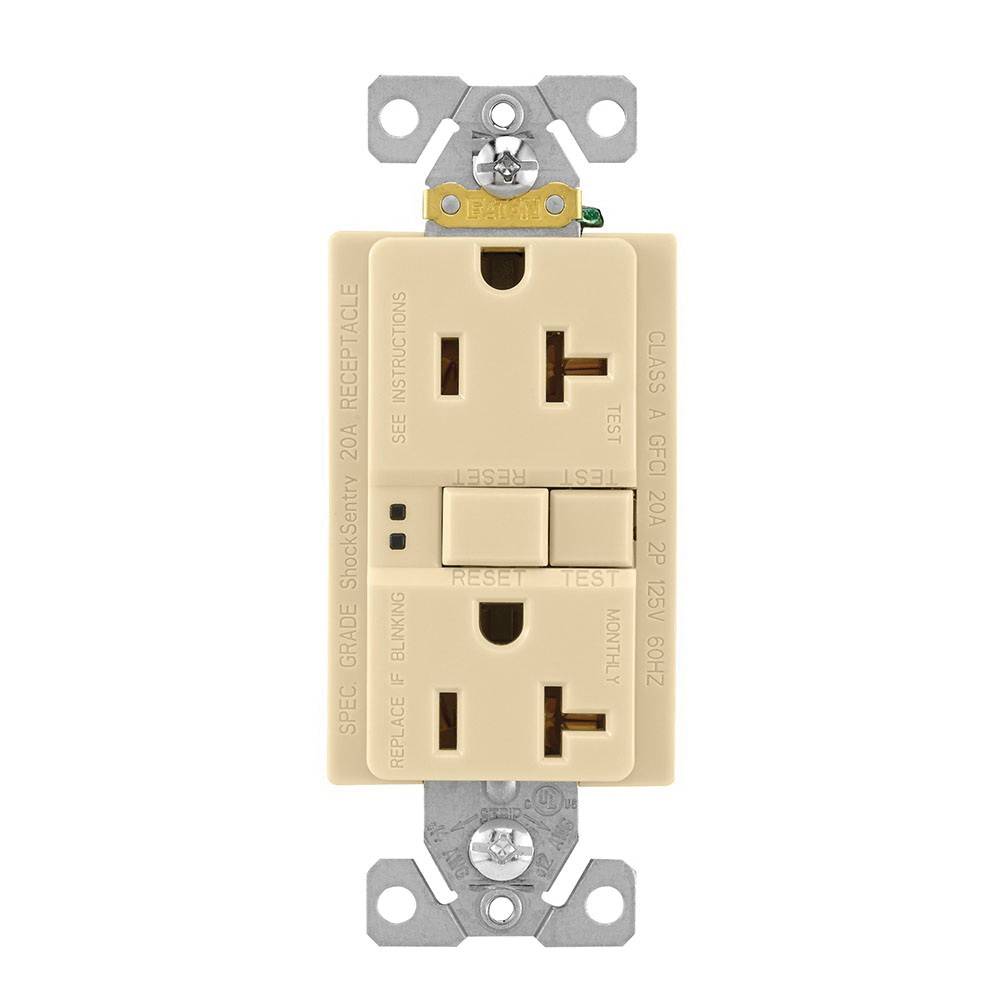

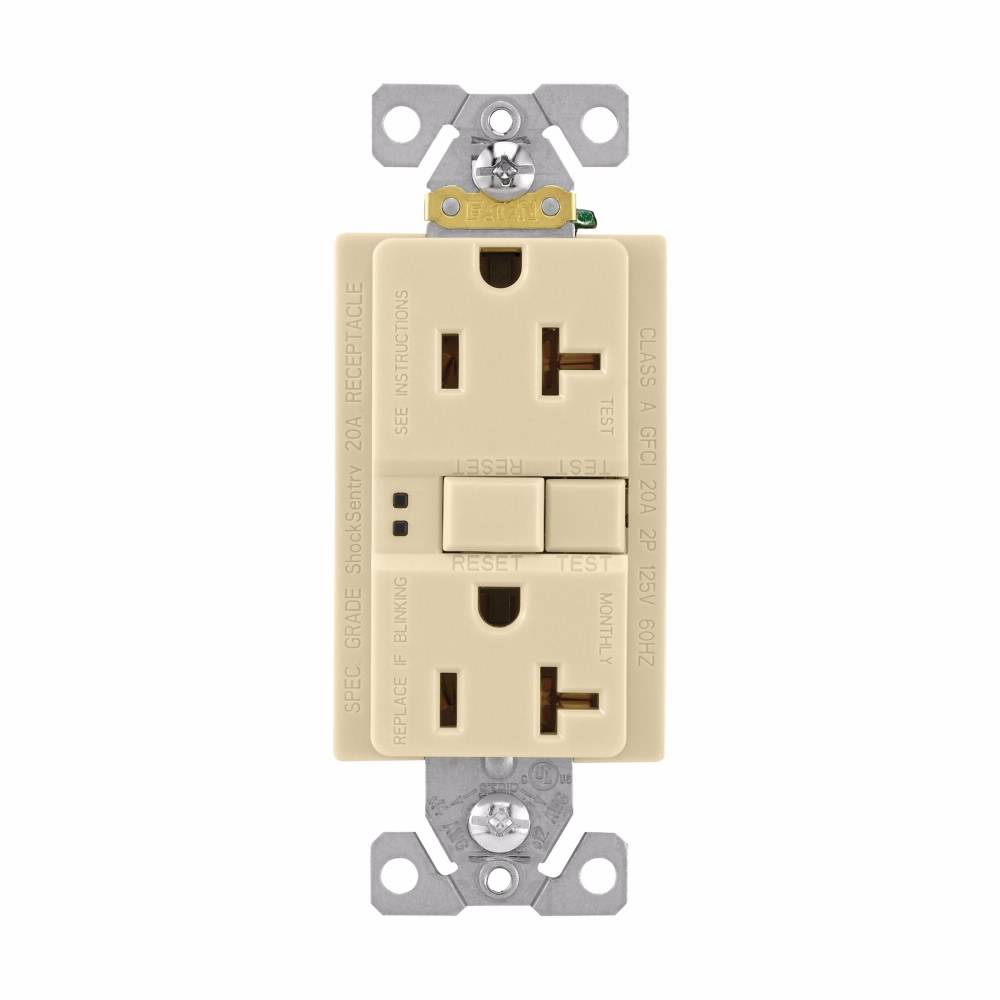

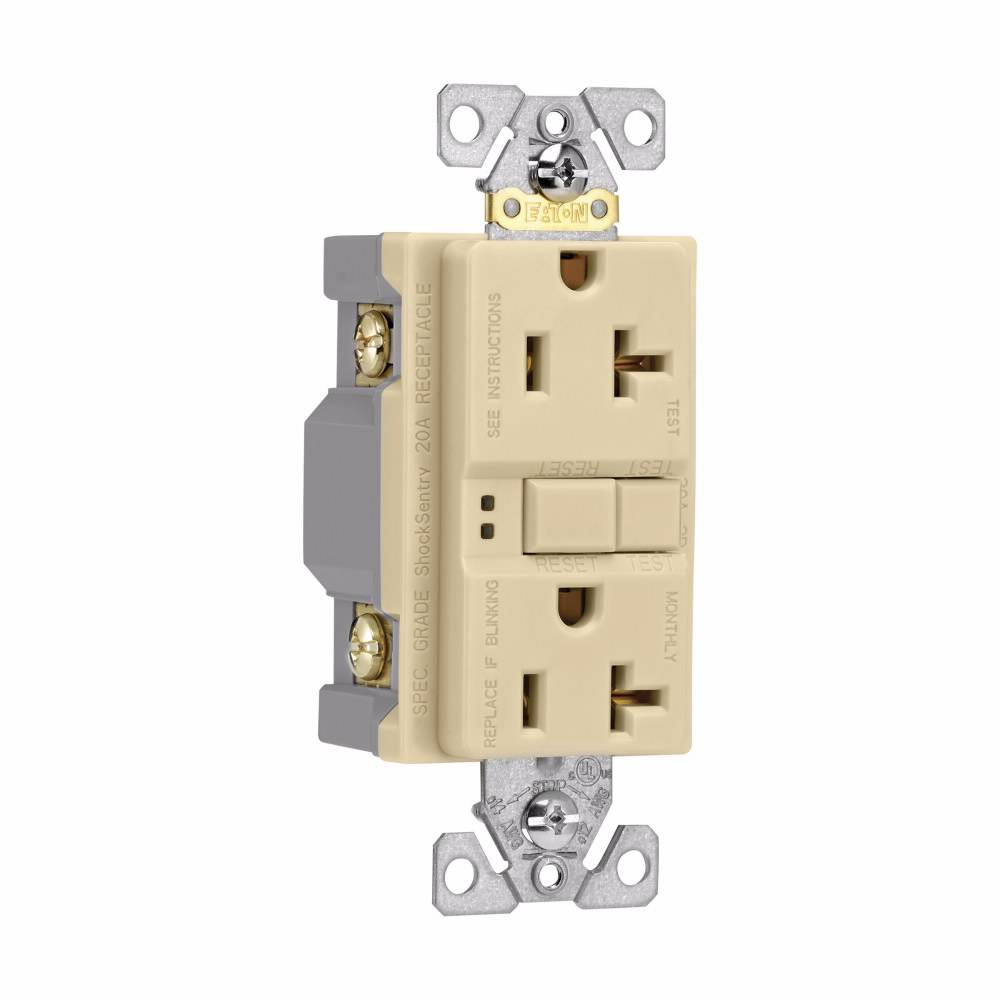

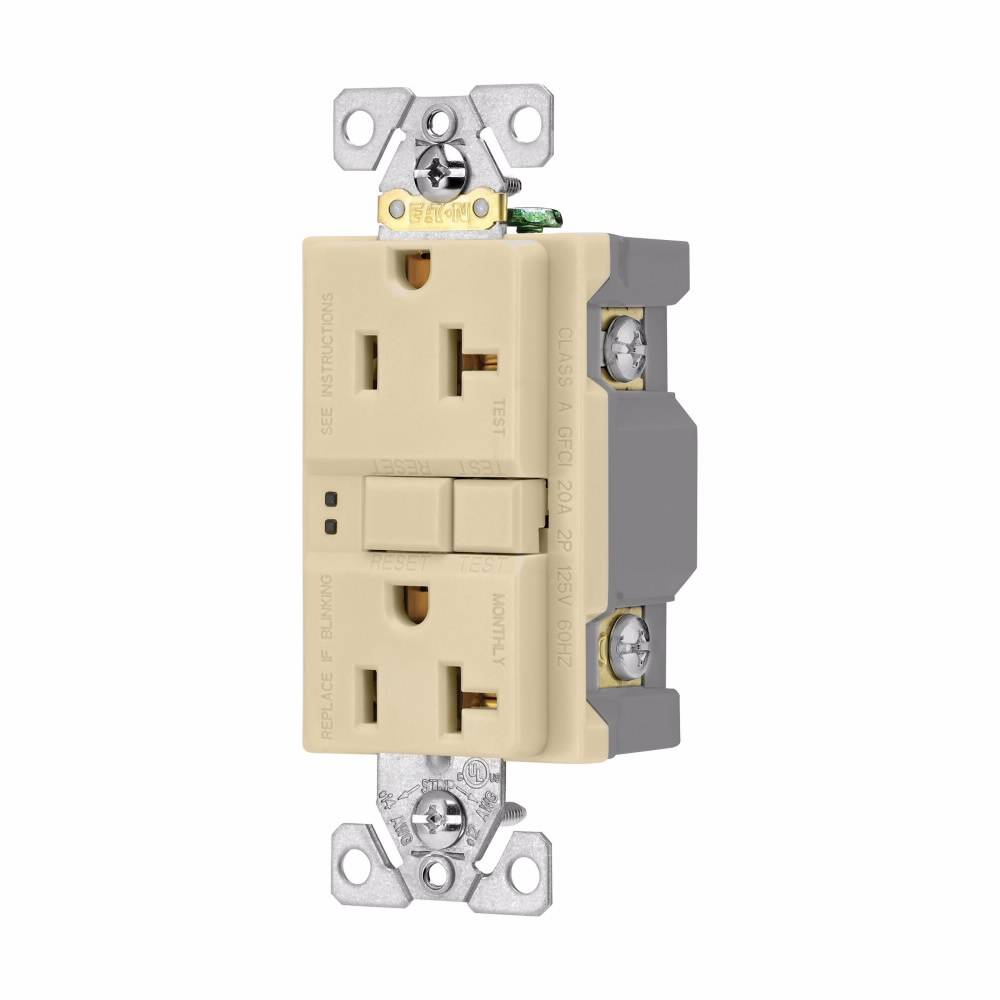

EATON Arrow Hart™ Eaton Wiring Devices SGF20V Duplex Grounding Self-Test GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory

Short Description

Eaton Ground Fault Circuit Interrupter (GFCI) receptacles are circuit interrupters designed to recognize a ground fault in your wiring and immediately break the flow of electricity, thus protecting you from electrical shock. Further, they prevent re-setting if, once tripped, the ground fault renders the device no longer functional. Eaton GFCIs are tested to the highest standards and provide dependable, state-of-the-art protection suitable for residential, commercial and industrial settings, including homes, offices, hospitals, schools and even outdoor applications. When combined with Eatons AFCI technology, Eaton ground fault circuit interrupter receptacles provide fire and electrical safety in one device (AF/GF) and are also available in breakers.

EATON Arrow Hart™ Eaton Wiring Devices GFCI Receptacle, Duplex Grounding Self-Test, Series: SGF, 125 VAC, 20 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Specification Grade, -31 to 150.8 deg F, Back/Side Wire/Screw Terminal, Brass/Polycarbonate, Ivory, 1.68 in W x 1.27 in D x 4.2 in H Dimensions

MFG #: SGF20V

EECO #: EASGF20V

Brand: Eaton
UPC #: 032664750052
Attributes
Features
Documents
Product Information
Attributes
Color
Ivory
UNSPSC
39121633
Wiring
Back, Side
Approval
UL 498/943, UL (Canada and US), CSA, NOM 426
Material
Brass/Polycarbonate
Application
Commercial, Industrial Areas, Public Bathrooms, Breakrooms and Food Service Area, Residential Buildings, Facilities and Other Applications
Terminal Type
Back/Side Wire/Screw
Current Rating
20 Amp
Voltage Rating
125
Number Of Poles
2
Number of Wires
3
Frequency Rating
60
Temperature Rating
-31 to 150.8
Type
Duplex Grounding Self-Test
Grade
Specification
Series
SGF
Includes
Matching Thermoplastic Wallplate
Dimensions
1.68 in W x 1.27 in D x 4.2 in H
Configuration
5-20R
Amperage Rating
20
Features
  • Visual indicator lights give quick notification of a tripped or end of life condition
  • Performs periodic self tests to ensure integrity of GFCI protection
  • Meets and exceeds 10 kA short circuit testing and UL 943 safety standards
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Ground termination with back wire clamp provides secure wiring and reduces installation time
  • Tamper-resistant shutters help prevent foreign objects from being inserted
  • Line side terminals are backed out and staked for fast installation
  • Horizontal test/reset button alignment provides larger unobstructed area
  • Test and reset buttons are color matched to provide superior aesthetics
  • Tapered back wire openings handle multiple wire sizes and types for application up to 10 AWG solid or stranded wire
  • When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
  • Line load miswiring protection, GFCIs will not provide power downstream when wired incorrectly
  • Tri-combo head terminal and mounting screws
  • UL listed, fully compliant with all latest UL 943 class A GFCI requirements
  • Longer, wider "bridged" strap provides 40% more contact area with wallboard, virtually eliminating floating installation
EATON_SGF15GY_L_Manual_1
COOPERE00837_1
COOPERE01441_1_6
COOPERINST00073
EATCORE11940_H6_H8_H16
EATON_TRSGF15B_Brochure
EATON_TRSGF15B_Instruction_Sheet
Qty Unit price
Ea
1 $22.53

Slqt
1 $22.53

Stpk
1 $22.53

Unit
1 $22.53
