Eaton

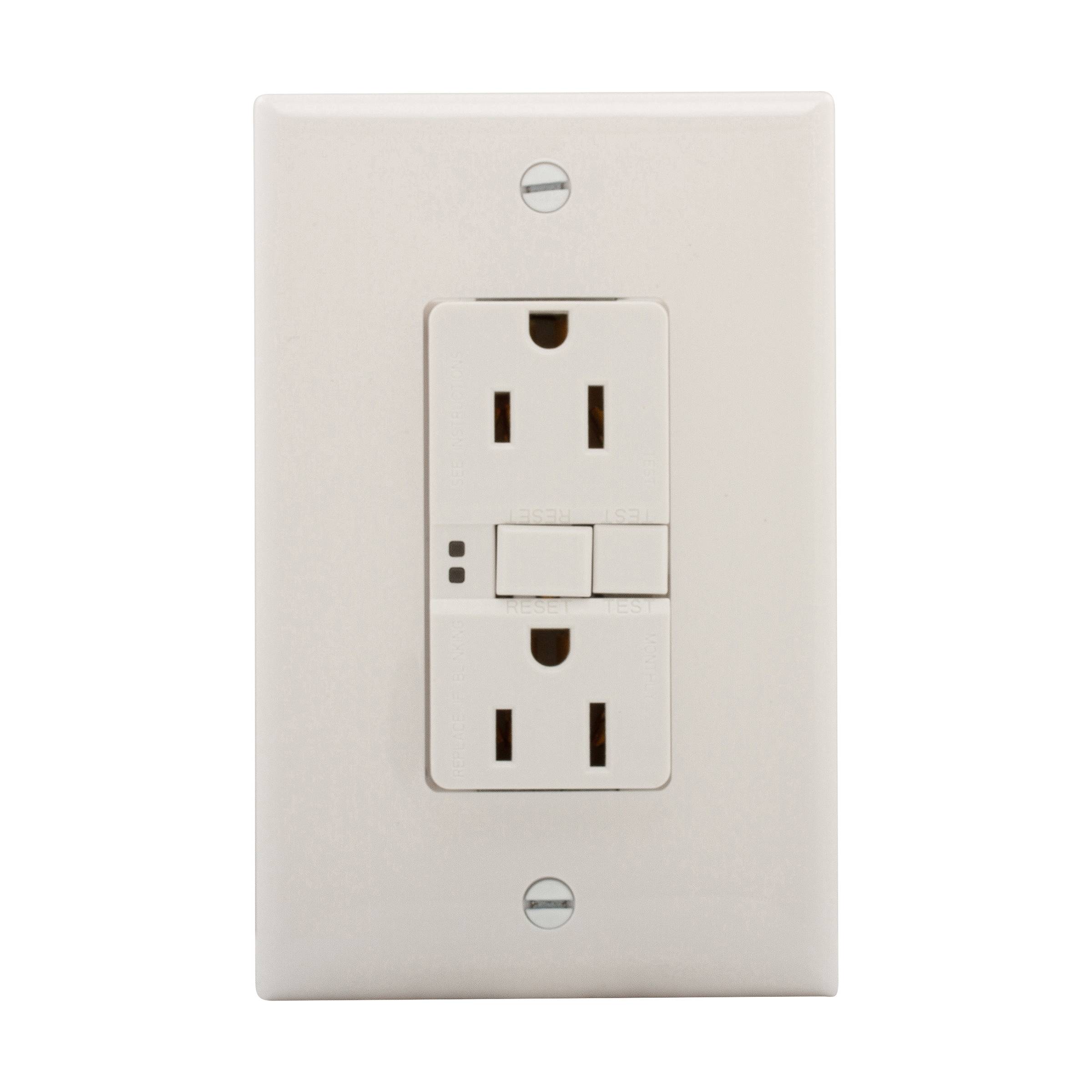

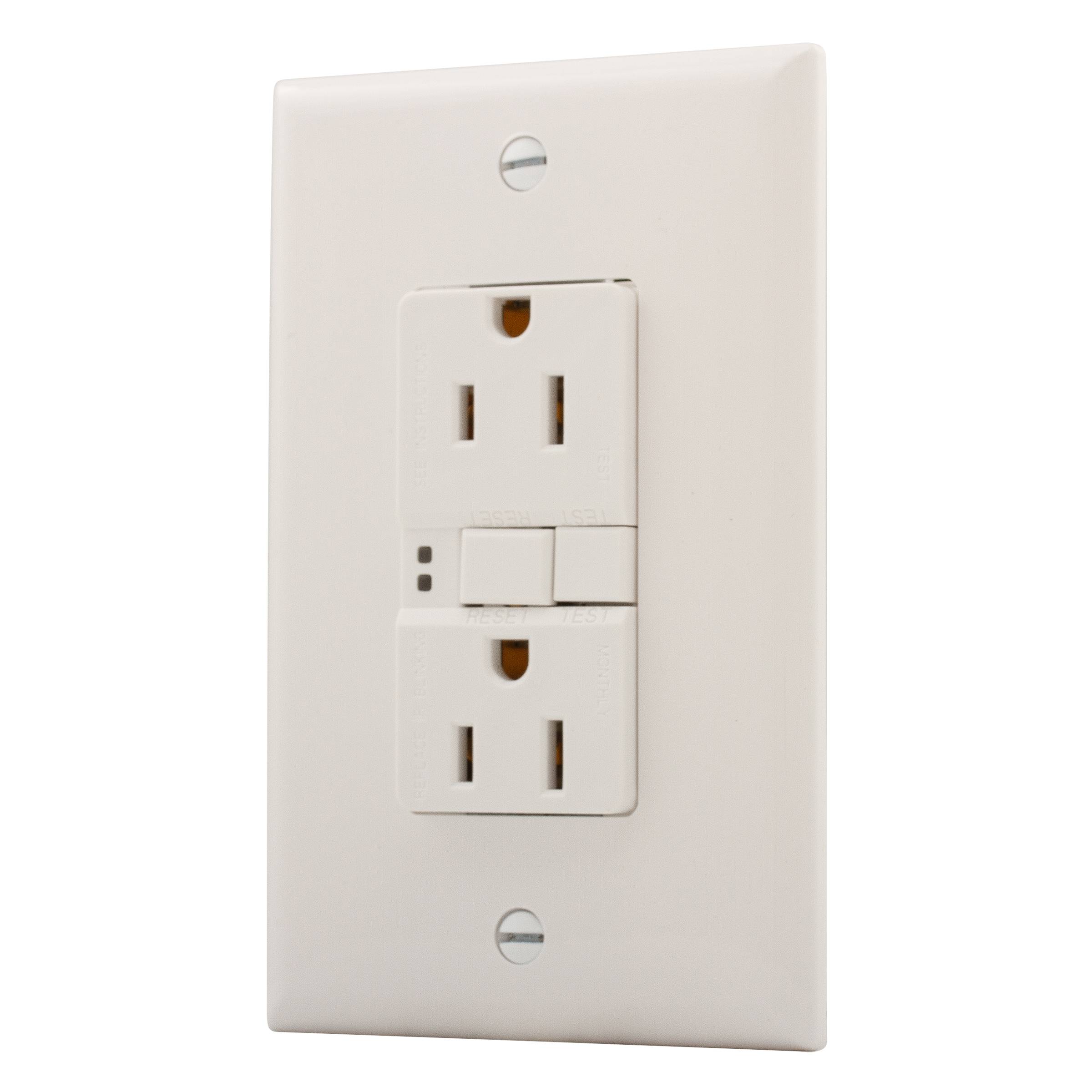

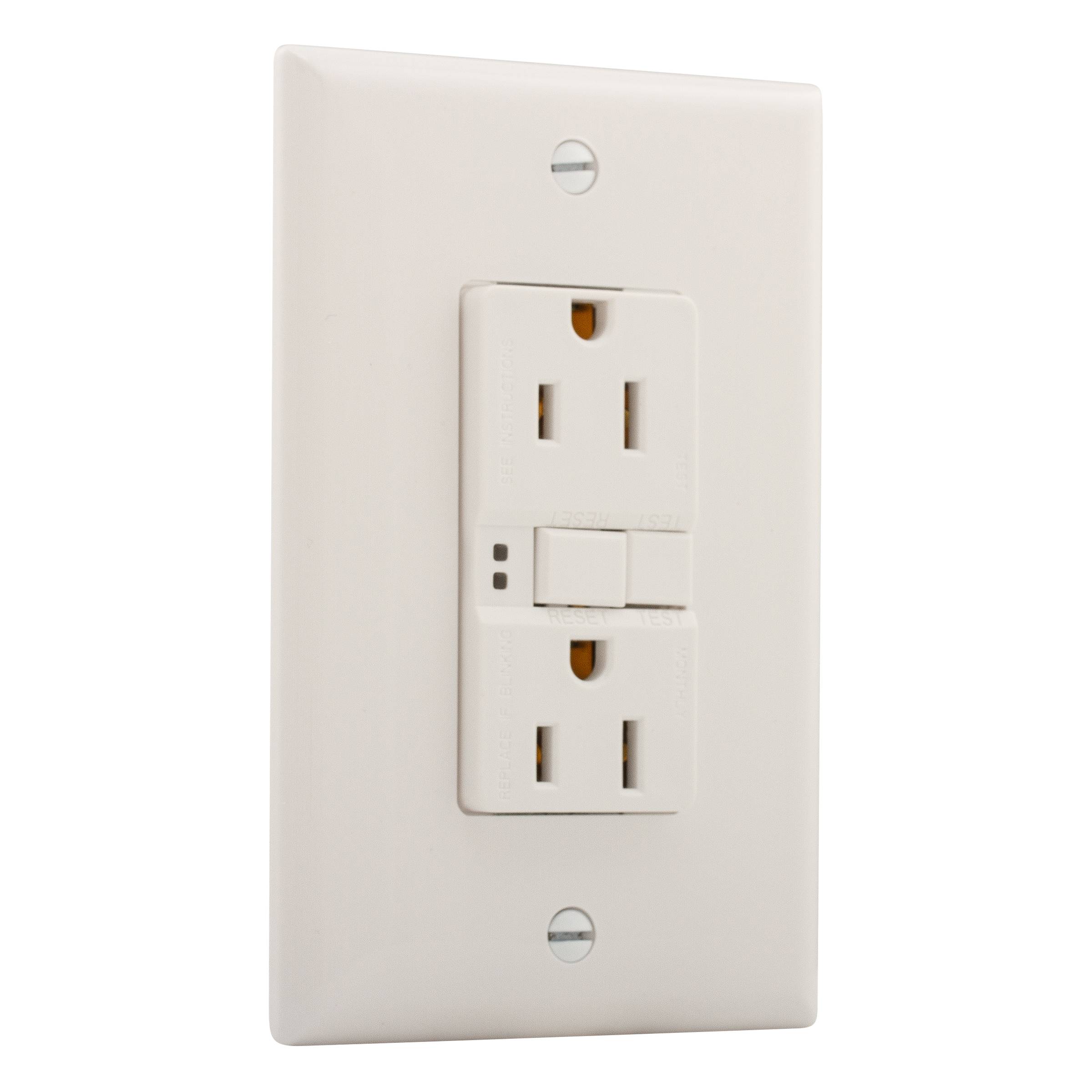

EATON SGF15W-M-L Duplex Self-Test GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White

Short Description

Arrow Hart™ complete offering of ground fault circuit interrupters (GFCIs) is built to meet every need in commercial, industrial and institutional settings, whether permanent or temporary and is fully compliant with the latest UL 943 standards for GFCIs.

EATON GFCI Receptacle, Duplex Self-Test, 125 VAC, 15 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Specification Grade, -31 to 150.8 deg F, Back/Side Wire Terminal, PVC, White, 1.68 in L x 3.124 in W x 4.901 in H Dimensions
MFG #: SGF15W-M-L

EECO #: EASGF15WM

Brand: Eaton
UPC #: 032664742453
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
39121406
Wiring
Back, Side
Approval
UL 498/943, UL (Canada and US), CSA, NOM 426
Material
PVC
Application
Residential Applications
Terminal Type
Back/Side Wire
Current Rating
15 amp
Voltage Rating
125
Number Of Poles
2
Number of Wires
3
Frequency Rating
60
Temperature Rating
-31 to 150.8
Type
Duplex Self-Test
Grade
Specification
Includes
Standard Unbreakable Mid-Size Wallplate
Dimensions
1.68 in L x 3.124 in W x 4.901 in H
Configuration
5-15R
Amperage Rating
15
Features
  • Visual indicator lights give quick notification of a tripped or end of life condition
  • Automatically self-tests periodically to ensure GFCI protection
  • Rugged construction provides unsurpassed chemical and impact-resistant
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Ground termination with Back-wire clamp provides secure wiring and reduces installation time
  • Line side terminals are backed out and staked for fast installation
  • Horizontal test/reset button alignment provides larger unobstructed area
