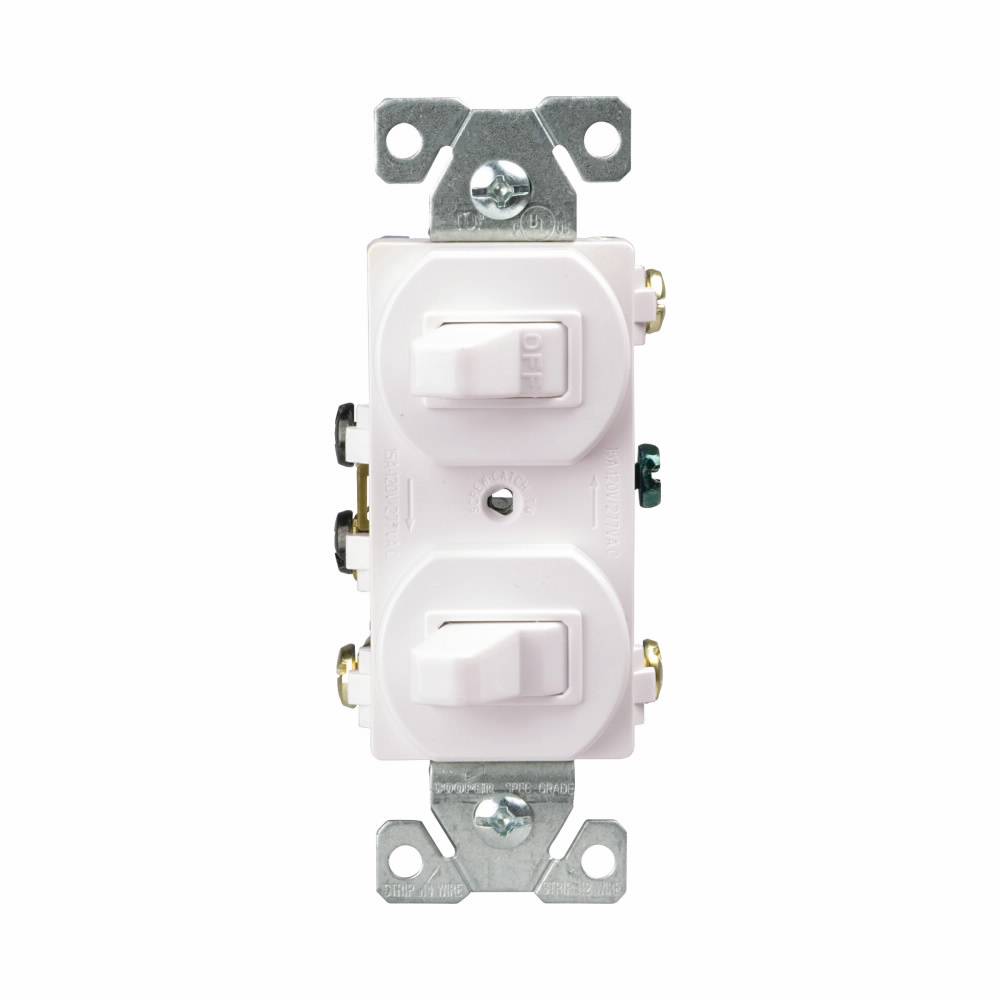

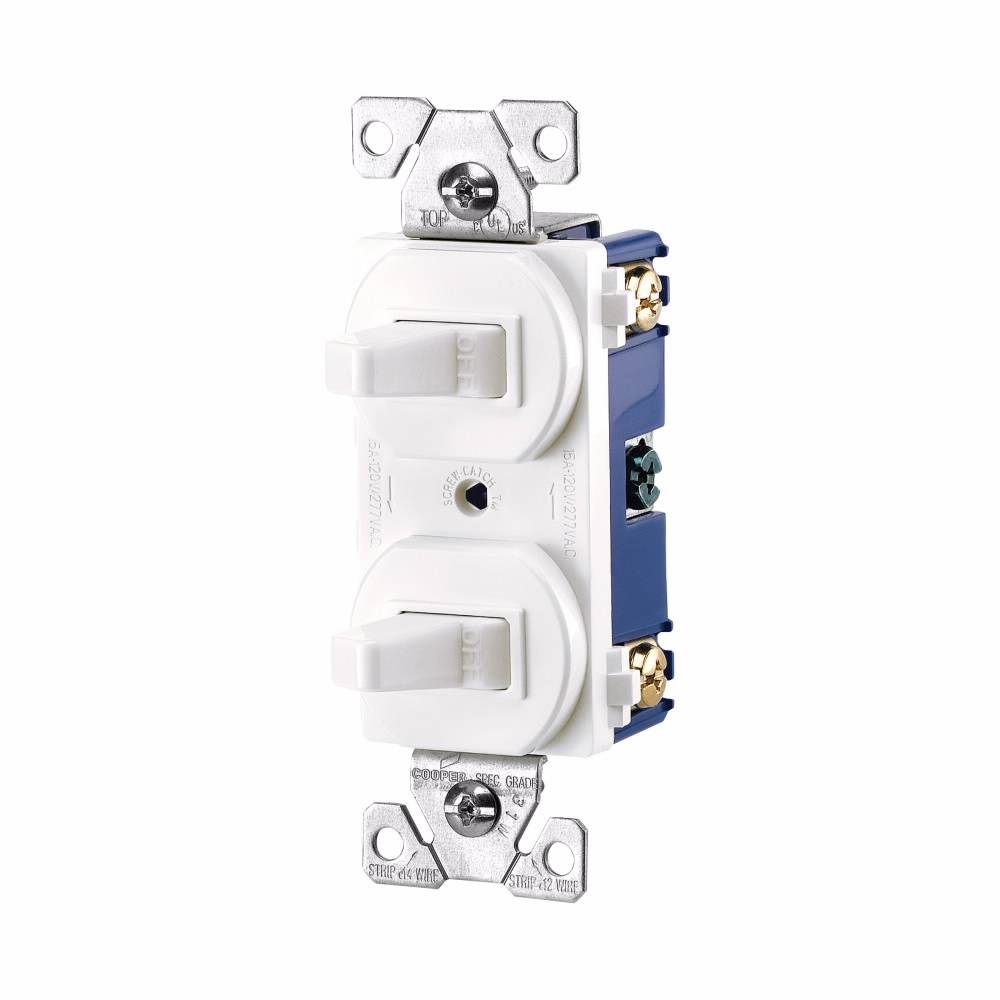

EATON Arrow Hart® 275W-BOX 3-Way Duplex AC Toggle Combination Switch, 120 VAC, 15 A, 1 Poles

Short Description

120/277 VAC, 15 A, Back/Side Wired, White, (1) 1-Pole, (1) 3-Way Toggle, Duplex, Combination Switch

EATON Arrow Hart® AC Toggle Combination Switch, 3-Way Duplex, 120 VAC, 15 A, 1 Poles, Strap, 4.19 in H x 1.3 in W x 1.08 in D, 30000 Cycles Operating Cycles, Environmental Conditions: -20 to 60 deg C Operating Temperature, Thermoplastic, White

MFG #: 275W-BOX

EECO #: EA275WBOX

Brand: Eaton
UPC #: 032664750205
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
39122232
Wiring
Back, Side
Approval
UL (Canada and US), UL 20/498, CSA C22.2
Material
Thermoplastic
Application
Commercial Applications
Voltage Rating
120/277 Volt AC
Mounting
Strap
Environmental Conditions
-20 to 60 deg C Operating Temperature
Size
4.19 in H x 1.3 in W x 1.08 in D
Type
3-Way Duplex
Switch 1 Type
120/277 Volt AC 15 Amp 1-Pole Toggle
Switch 2 Type
120/277 Volt AC 15 Amp 3-Way Toggle
Features
  • Back and side wire connection
  • Grounding terminal screw standard
  • Receptacles have triple wipe line contacts and double wipe ground contacts to insure long term plug retention
  • Thick steel mounting strap zinc plated for corrosion resistance
  • Break off provision for wiring both devices on same circuit or on separate circuits
  • Terminal screws are backed out and ready for wiring to enhance ease of installation
  • Side wire terminals accept up to 10 AWG solid or stranded wire
  • Pilot light may be wired to indicate power "ON" or power "OFF"
  • Combination slot/Phillips® head mounting and terminal screws ease installation
  • Screw connection
  • Heavy duty brass contact
  • Toggle actuator
  • Switch action
  • Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
  • Mounting straps are zinc plated to for added corrosion resistance
COOPERE00691_B13_B16_B68
COOPERE00725_1
COOPERINST00085
Cooper_Wiring_271B_BOX_Installation_Instructions
Qty Unit price
Ea
1 $11.65

Slqt
1 $11.65

Stpk
1 $116.50

Unit
1 $11.65
