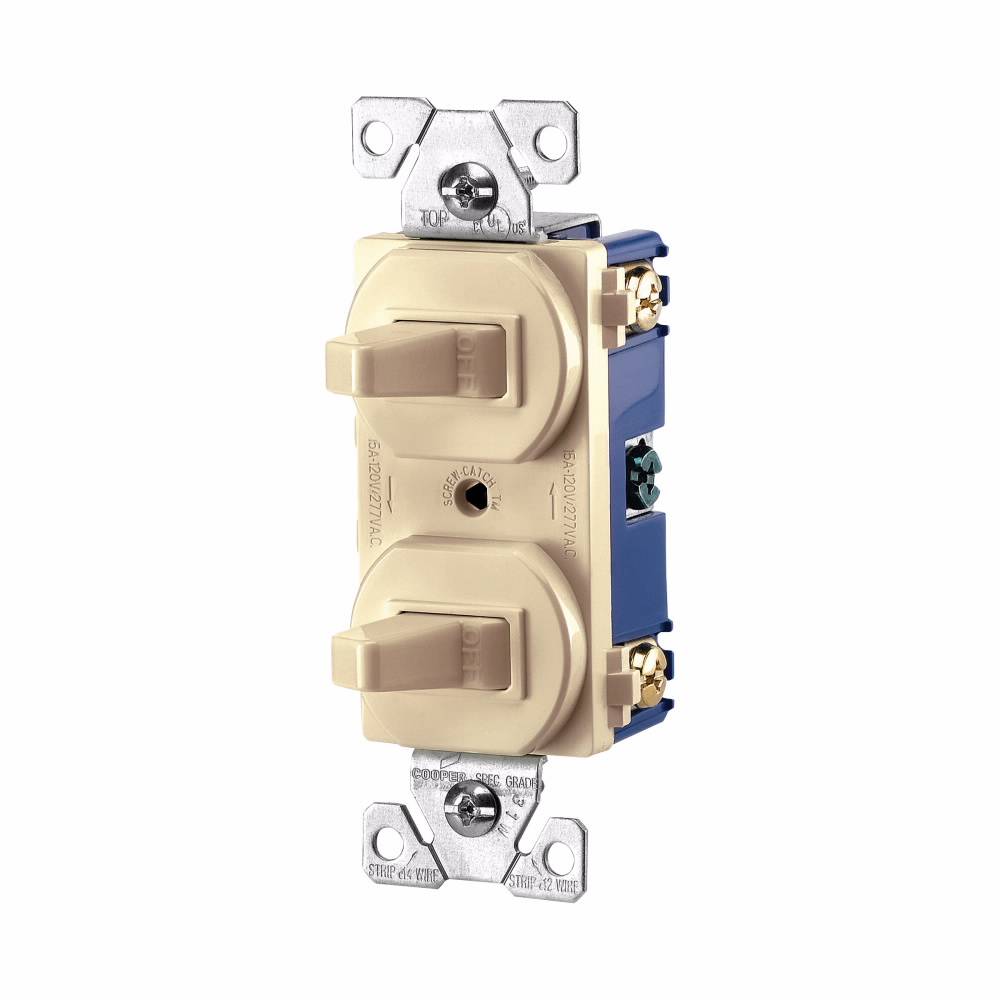

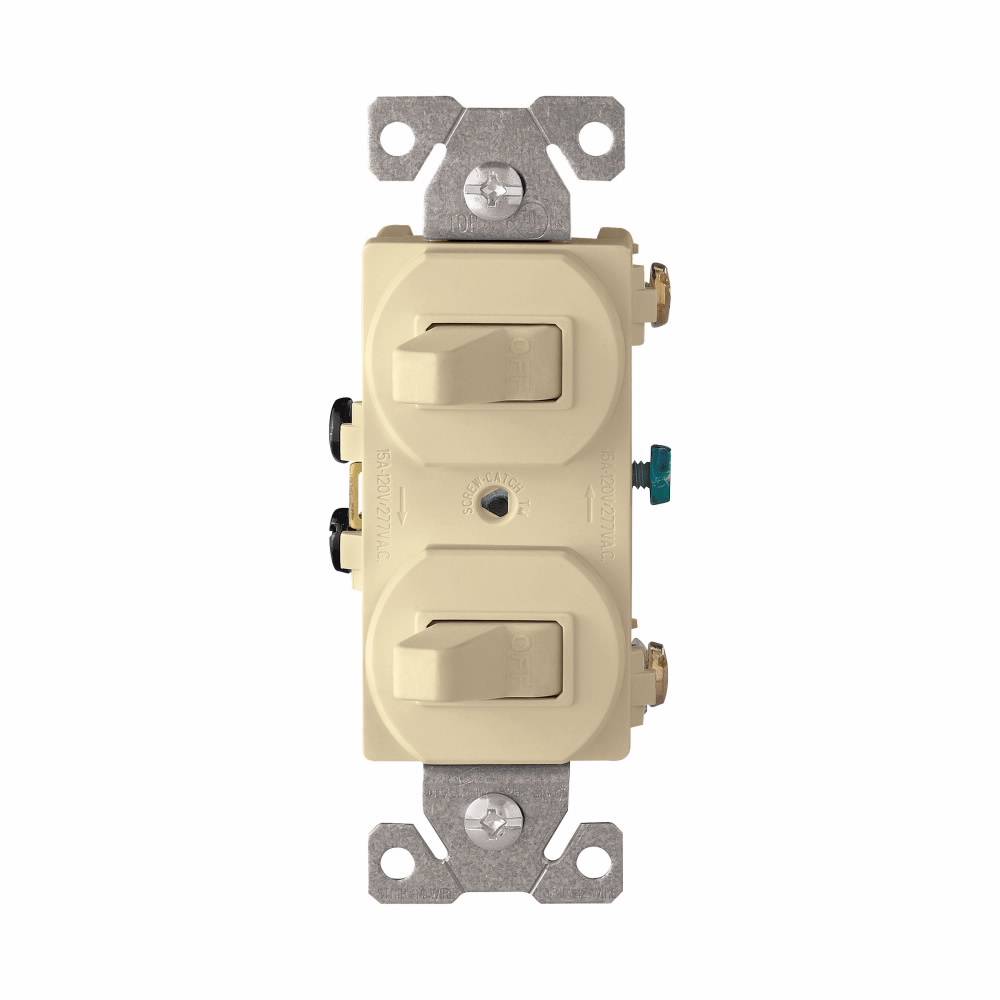

EATON Arrow Hart™ Eaton Wiring Devices 271V-BOX Duplex AC Toggle Combination Switch, 15 A at 120 VAC, 1 Poles

Short Description

120/277 VAC, 15 A, Back/Side Wired, Ivory, (2) 1-Pole Toggle, Duplex, Combination Switch

EATON Arrow Hart™ Eaton Wiring Devices AC Toggle Combination Switch, Duplex, 15 A at 120 VAC Electrical Rating, 1 Pole, Surface Mounting, 4.19 in H x 1.37 in W x 0.88 in D Size, 30000 Operating Cycles, Environmental Conditions: -20 to 60 deg C Operating Temperature, Thermoplastic, Ivory

MFG #: 271V-BOX

EECO #: EA271VBOX

Brand: Eaton
UPC #: 032664750304
Attributes
Features
Documents
Product Information
Attributes
Color
Ivory
UNSPSC
39122232
Wiring
Back, Side
Approval
UL (Canada and US), UL 20, CSA C22.2, NOM 426
Material
Thermoplastic
Application
Commercial and Non-Residential Applications
Voltage Rating
120/277 Volt AC
Mounting
Surface
Environmental Conditions
-20 to 60 deg C Operating Temperature
Size
4.19 in H x 1.37 in W x 0.88 in D
Type
Duplex
Switch 1 Type
120/277 Volt AC 15 Amp 1-Pole Toggle
Switch 2 Type
120/277 Volt AC 15 Amp 1-Pole Toggle
Features
  • Back and Side wire connection
  • Grounding terminal screw standard
  • Receptacles have triple wire line contacts and double wipe ground contacts to insure long term plug retention
  • THK steel mounting strap zinc plated for corrosion-resistance
  • Break-off provision for wiring both devices on same circuit or on separate circuits
  • Terminal screws are backed out and ready for wiring to enhance ease of installation
  • Side wire terminals accept up to 10 AWG solid or stranded wire
  • Pilot light may be wired to indicate power On or power Off
  • Combination slot Phillips® head mounting and terminal screws ease installation
  • Screw connection
  • Heavy duty brass contact
  • Toggle actuator
  • Switch action
  • Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
  • Mounting straps are zinc plated to for added corrosion-resistance
