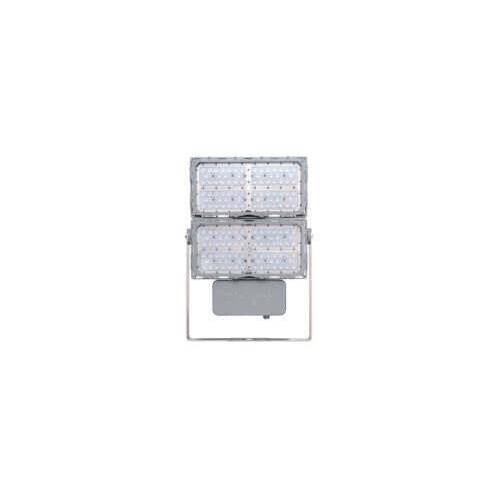

ProSite F2UN7B8NDFNVGN 131 x 108 deg Very Wide Beam Floodlight, LED Lamp, 484 W Fixture, 120 to 277/120 to 250 VAC/VDC, Gray Housing
Share Share Print Print
Dialight

ProSite F2UN7B8NDFNVGN 131 x 108 deg Very Wide Beam Floodlight, LED Lamp, 484 W Fixture, 120 to 277/120 to 250 VAC/VDC, Gray Housing

Short Description

Illuminate your space with the ProSite F2UN7B8NDFNVGN Very Wide Beam Floodlight. This powerful 484 W LED fixture offers an impressive 65000 lumens output and features advanced DALI control for dimming. Built to last with a 150,000-hour average life, it's perfect for any outdoor application. With its robust gray cast aluminum housing and IP66/IP67/NEMA 4X enclosure, this floodlight is designed to withstand the elements while providing exceptional brightness and efficiency.Enhanced by AI

ProSite, F2UN7B8NDFNVGN, Floodlight, 131 x 108 deg Very Wide Beam, 120 to 277/120 to 250 VAC/VDC, 484 W Fixture, LED Lamp, 165 lm/W Light Output, 150000 hr Average Life, Cool White Light, 5000 K Color Temperature, 70 CRI, DALI Control Dimming Driver Ballast, Polycarbonate Lens, 65000 Lumens, IP66/IP67/NEMA 4X Enclosure, Wall Mounting, Cast Aluminium Housing Material, Gray Housing Finish, 28.3 in H x 19.5 in W x 6.5 in D Dimensions

MFG #: F2UN7B8NDFNVGN

EECO #: DLF2UN7B8NDFNVGN

Brand: ProSite
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39111544
Lamp Type
LED
Application
Ideal for Floodlight applications for IECEx/ATEX classified hazardous area zones
Mounting Type
Wall
Enclosure Type
IP66/IP67/NEMA 4X
Voltage Rating
120 to 277/120 to 250
Housing Material
Cast Aluminium
Type
131 x 108 deg Very Wide Beam
Includes
316 Stainless Steel mounting bracket
Warranty
10 Years
Lens Type
Polycarbonate
Dimensions
28.3 in H x 19.5 in W x 6.5 in D
Ballast Type
DALI Control Dimming Driver
Housing Finish
Gray
Features
  • Operating temperature range of -40 deg F to 149 deg F
  • Superior dual coat finish (chemical-resistant epoxy primer and sealed polyester topcoat)
  • Available in 12000 to 65000 lumen models, reaching up to 165 LPW, for mounting heights of up to 100 ft
  • Ideal applications include, Oil and Gas, Petrochemical, Chemical, Metals, Mining and Heavy Industrial operations requiring superior lighting for indoor and outdoor safety and security
Dialight_FLX1RAB20DB_User_Manual
ProSite_F1D46B2EDFNUGN_Specification_Sheet
ProSite_F1D74B2BDENVGN_Installation_Manual
