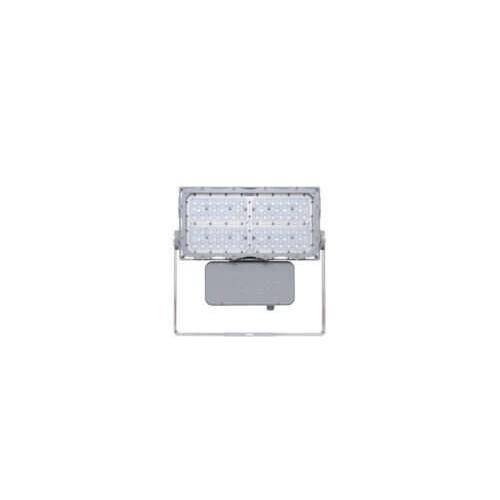

ProSite F1UN6B5BDENVGN 125 deg Wide Beam Floodlight, LED Lamp, 84 W Fixture, 347 to 480 VAC, Gray Housing
Share Share Print Print
Dialight

ProSite F1UN6B5BDENVGN 125 deg Wide Beam Floodlight, LED Lamp, 84 W Fixture, 347 to 480 VAC, Gray Housing

Short Description

Illuminate your space with the ProSite F1UN6B5BDENVGN Wide Beam Floodlight, featuring an impressive 125-degree beam angle and a powerful 84W LED lamp. With a robust design and exceptional light output of 12,000 lumens, this floodlight is perfect for any outdoor setting. Experience long-lasting performance and energy efficiency with a color temperature of 5000K and advanced DALI control dimming. Upgrade your lighting today!Enhanced by AI

ProSite, F1UN6B5BDENVGN, Floodlight, 125 deg Wide Beam, 347 to 480 VAC, 84 W Fixture, LED Lamp, 165 lm/W Light Output, 150000 hr Average Life, Cool White Light, 5000 K Color Temperature, 70 CRI, DALI Control Dimming Driver Ballast, Polycarbonate Lens, 12000 Lumens, IP66/IP67/NEMA 4X Enclosure, Wall Mounting, Cast Aluminium Housing Material, Gray Housing Finish, 17.4 in H x 19.3 in W x 15.6 in D Dimensions

MFG #: F1UN6B5BDENVGN

EECO #: DLF1UN6B5BDENVGN

Brand: ProSite
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39111544
Lamp Type
LED
Application
Ideal for Floodlight applications for IECEx/ATEX classified hazardous area zones
Mounting Type
Wall
Enclosure Type
IP66/IP67/NEMA 4X
Voltage Rating
347 to 480
Housing Material
Cast Aluminium
Type
125 deg Wide Beam
Includes
316 Stainless Steel mounting bracket
Warranty
10 Years
Lens Type
Polycarbonate
Dimensions
17.4 in H x 19.3 in W x 15.6 in D
Ballast Type
DALI Control Dimming Driver
Housing Finish
Gray
Features
  • Operating temperature range of -40 deg F to 149 deg F
  • Superior dual coat finish (chemical-resistant epoxy primer and sealed polyester topcoat)
  • Available in 12000 to 65000 lumen models, reaching up to 165 LPW, for mounting heights of up to 100 ft
  • Ideal applications include, Oil and Gas, Petrochemical, Chemical, Metals, Mining and Heavy Industrial operations requiring superior lighting for indoor and outdoor safety and security
ProSite_F2UN7B9NDFNVGN_Specification_Sheet
