Emerson Electric Co. IE-120 Islatrol™ AC Line Filter

Name: Emerson Electric Co. IE-120 Islatrol™ AC Line Filter
Brand: Emerson
SKU: CTIE120
Price: 246 USD
Availability: InStock

Short Description

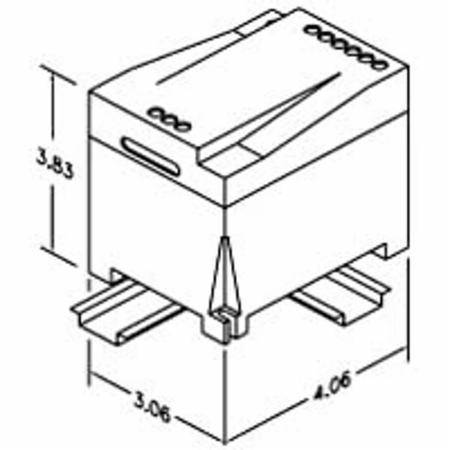

4.06" x 3.06" x 3.83", 120 VAC at 47 to 63 Hz, 20 A, High Impact Plastic Enclosure, DIN Rail/Flange Mount, 1-Phase, 2-Wire, AC Line Filter

AC Line Filter; Voltage Rating 120 Volt AC; Current Rating 20 Amp; Frequency Rating 47 to 63 Hertz; Circuit Type 1-Phase, 2-Wire; Protection Mode L-N, L-G, N-G; Operating Temperature -40 to 45 Deg C; Enclosure High Impact Plastic; Size 4.06 Inch Length x 3.06 Inch Width x 3.83 Inch Height; Application Industrial PLC/OEM, Motion Control System, Microprocessor Based Product; Approval UL 1283/1449, CUL, CE; RoHS Compliant; Mounting Type DIN Rail/Flange

MFG #: IE-120

EECO #: CTIE120 CTIE120

Brand: Asco

UPC #: 633914074296

Attributes

Features

Documents

Product Information

Attributes

UNSPSC

39121000

Approval

UL 1283/1449, CUL, CE

Application

Industrial PLC/OEM, Motion Control System, Microprocessor Based Product

Circuit Type

1-Phase, 2-Wire

Current Rating

20 Amp

Voltage Rating

120 Volt AC

Frequency Rating

47 to 63 Hertz

Enclosure

High Impact Plastic

Operating Temperature

-40 to 45 Deg C

Size

4.06 Inch Length x 3.06 Inch Width x 3.83 Inch Height

Protection Mode

L-N, L-G, N-G

Features

The Isolator IE is a Series Connected DIN/Flange Mount High-Frequency Noise Filter/Surge Suppressor
Transient Protection in All Modes Line to Neutral, Line to Ground, Neutral to Ground
LED Status Indication and Form C Contact for Remote Indication
Multi-Staged Design, Combining a Unique Hybrid Clamping Network with the Active Tracking Technology of the Isolator Family
RoHS Compliant

EMERNWE00163_1

EMERNWINST00013

EMERSOE00620_6
