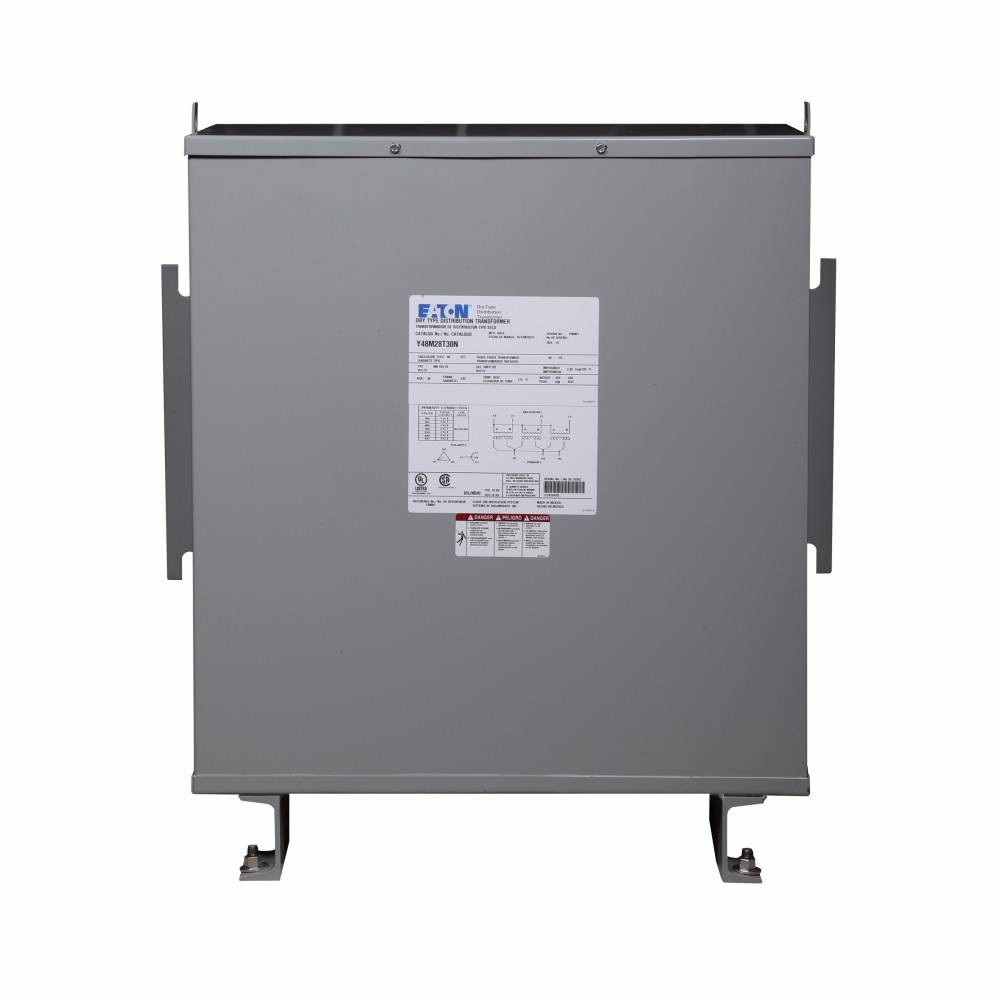

EATON Z48G28T30S64X Type EPTZ General Purpose Encapsulated Transformer, 480 V Primary, 208Y/120 V Secondary, 30 kVA Power Rating, 60 Hz, 3 Phase
Share Share Print Print
Eaton

EATON Z48G28T30S64X Type EPTZ General Purpose Encapsulated Transformer, 480 V Primary, 208Y/120 V Secondary, 30 kVA Power Rating, 60 Hz, 3 Phase

Short Description

EATON EPT (3-phase) general purpose encapsulated dry-type transformers are of the two-winding type, encapsulated (potted) in a mix of epoxy coated sand and gravel and are available in a wide variety of primary and secondary voltage combinations. General purpose encapsulated transformers are designed, manufactured and tested in accordance with all of the latest applicable ANSI, NEMA and IEEE standards and are designed for continuous operation at rated kVA.

EATON Encapsulated Transformer, Type EPTZ General Purpose, 480 V Primary, 208Y/120 V Secondary, 30 kVA Power, 60 Hz, 3 ph, 2 at -5% FCBN Taps, 66A Connection, 2434X Frame Circuit, 180 deg C Insulation, NEMA 4X Enclosure, 115 deg C, 316 Stainless Steel Housing Material, 12.69 in L x 21.18 in W x 22.72 in H
MFG #: Z48G28T30S64X

EECO #: CHZ48G28T30S64X

Brand: Eaton
UPC #: 786680232862
Attributes
Features
Documents
Product Information
Attributes
Phase
3
UNSPSC
39121027
Application
Commercial, Institutional Buildings and Structures
Circuit Type
2434X Frame
Power Rating
30
Enclosure Type
NEMA 4X
Connection Type
66A
Frequency Rating
60
Housing Material
316 Stainless Steel
Temperature Rating
115
Type
Type EPTZ General Purpose
Dimensions
12.69 in L x 21.18 in W x 22.72 in H
Primary Voltage
480
Secondary Voltage
208Y/120
Features
  • Encapsulated transformers are specifically excluded from the scope of US DOE energy efficiency requirements
  • Cores are grounded with a copper lead
  • Aluminum windings
