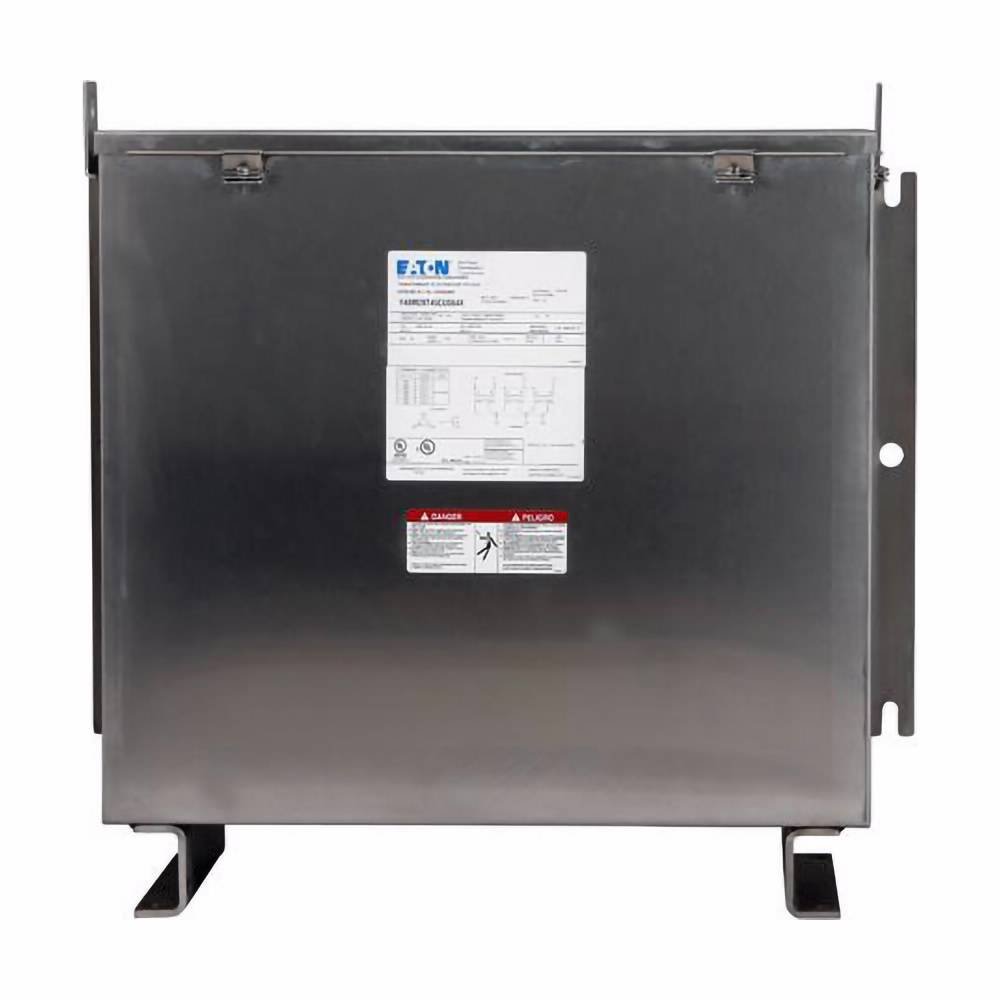

EATON Z48G28T15A Type EPTZ Encapsulated Hazardous Location Transformer, 480 VAC Primary, 208Y/120 VAC Secondary, 15 kVA Power Rating, 50/60 Hz, 3 ph Phase

Short Description

Type EPZ (1-ph) and EPTZ (1-ph) transformers are UL listed and suitable for installation in Class I, Division 2 Groups A,B, C and D locations and offer a solution for many petrochemical and other industrial facilities with atmospheres unsuitable for application of either liquid filled or general purpose dry type transformers.

EATON Hazardous Location Transformer, Type EPTZ Encapsulated, 480 VAC Primary, 208Y/120 VAC Secondary, 15 kVA Power, 50/60 Hz Frequency, 3 ph, 2 Taps, 243H/FR95H Frame Circuit, Upright Mounting, NEMA 3R Enclosure, 115 deg C, 10.52 in L x 25.18 in W x 17.78 in H Dimensions
MFG #: Z48G28T15A

EECO #: CHZ48G28T15A

Brand: Eaton
UPC #: 786680006265
Attributes
Features
Documents
Product Information
Attributes
Phase
3
UNSPSC
39121027
Application
Commercial, Institutional Buildings, Structures - Power Distribution and Controls, Indoor and Outdoor Applications
Circuit Type
243H/FR95H Frame
Power Rating
15
Mounting Type
Upright
Enclosure Type
NEMA 3R
Number of Taps
2.0000
Frequency Rating
50/60
Temperature Rating
115
Type
Type EPTZ Encapsulated
Dimensions
10.52 in L x 25.18 in W x 17.78 in H
Primary Voltage
480
Secondary Voltage
208Y/120
Features
  • Encapsulated transformers are specifically excluded from the scope of us DOE energy efficiency requirements
  • Cores are grounded with a copper lead
  • Short term overload capability as required by ANSI
  • Aluminum windings
  • 2 at -5% FCBN taps
