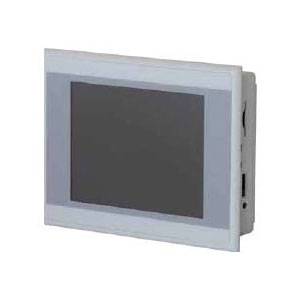

EATON XV-102-H3-35TQRL-10 Type HMI PLC 2 Generation Operator Interface, 3-1/2 in TFT QVGA Resistive Touch Display, RS-232/Ethernet/USB

Short Description

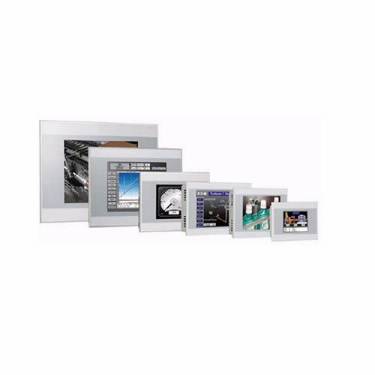

The XV Series with Galileo offers a global visualization software package for all applications in system and machine building. It is designed to optimize performance on the XV platform. Galileo can also run as the visualization package on XV CoDeSys units when a stronger visualization tool is required.

EATON Operator Interface, Type HMI PLC 2 Generation, Series: XV Series, TFT QVGA Resistive Touch, 3-1/2 in, RS-232/Ethernet/USB Port, 320 x 240 pixel, Software: Galileo, Memory: 64 MB, 0 to 50 deg C, Plastic, 7-1/2 in L x 7 in W x 3-1/2 in H

MFG #: XV-102-H3-35TQRL-10

EECO #: CHXV102H335TQRL10

Brand: Eaton
UPC #: 7640130097957
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43211902
Approval
UL (Canada and US), UL 508/60950, CUL, CSA C22.2, CE, ATEX 94/9/EC
Material
Plastic
Resolution
320 x 240
Application
OEM Applications
Display Type
TFT QVGA Resistive Touch
Power Rating
5 Watt
Backlight Type
LED, Dimmable
Mounting
Flush
Enclosure
NEMA 4X, IP65 (Front), NEMA 1, IP20 (Rear), IP5x
Operating Voltage
24 Volt DC
Temperature Rating
0 to 50
Operating Temperature
0 to 50 Deg C
Operator Interface Type
Touch Screen (Resistive)
Memory
64
Series
XV Series
Software
Galileo
Warranty
1 year
Dimensions
7-1/2 in L x 7 in W x 3-1/2 in H
Display Size
3-1/2
Operating Current
0.2 Amp
Application Memory
64 Megabyte (DRAM), 128 Megabyte (NAND-Flash)
Front Panel Height
100 Millimeter
Communication Ports
RS-232/Ethernet/USB
Communication Port Type
1 x 10/100 MBPS Ethernet, 1 x RS-232
Features
  • Resistive touch with flush bezel
  • Pre-licensed for galileo runtime (GRS)
P1259NBKINST
Qty Unit price
Ea
1 $610.66

Slqt
1 $610.66

Stpk
1 $610.66

Unit
1 $610.66
