Eaton

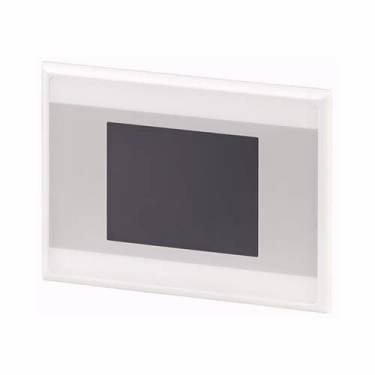

EATON XV-102-B8-35TQRC-10 XV-100 Resistive Touch Operator Interface, 24 VDC, 0.2 A, 3-1/2 in TFT LED Display, Ethernet 10/100, RS-485 or RS-232 USB Device

Short Description

Ideal for cost conscious machinery OEMs, EATON's XV100 series of human machine interfaces (HMIs) provide proven performance, standard HMI features with world-class application support. This robust HMI can be used as an HMI for visualization or as an HMI-PLC for lean automation applications. With best-in-class communications hardware, the XV100 comes standard with Ethernet and USB ports, which means that no custom programming cable is needed. Available communications options include RS-485, RS-232, PROFIBUST, CAN and SmartWire-DT.

EATON Operator Interface, Resistive Touch, Series: XV-100, 24 VDC, 0.2 A Power Source, TFT LED Display, 3-1/2 in Display, Ethernet 10/100, RS-485 or RS-232 USB Device Communication Ports, QVGA 320 x 240 pixel Display Resolution, XSoft-CoDeSys-3/Galileo Software, Memory: 64 MB DRAM, 250 cd/sq-m Brightness, 0 to 50 deg C, Plastic, 5.345 in L x 1.179 in W x 3.93 in H Dimensions
MFG #: XV-102-B8-35TQRC-10

EECO #: CHXV102B835TQRC10

Brand: Eaton
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43211902
Material
Plastic
Application
For visualization or as an HMI-PLC for lean automation applications
Display Type
TFT LED
Temperature Rating
0 to 50
Type
Resistive Touch
Memory
64 MB DRAM
Series
XV-100
Software
XSoft-CoDeSys-3/Galileo
Dimensions
5.345 in L x 1.179 in W x 3.93 in H
Display Size
3-1/2
Communication Ports
Ethernet 10/100, RS-485 or RS-232 USB Device
Features
  • High-performance 400 MHz RISC processor for PLC applications
  • On-board memory of 64 MB on demand expandable with an SD card
  • Nominal installation depth
  • USB host interface from 5.7 to 7 in widescreen display size
  • Standard blank front bezel with EATON branded product label
  • Retentive memory base unit variant
  • 2nd generation performance class
  • Microsoft windows CE operating system
