EATON XTSC010BBMA Full Voltage Non-Reversing IEC Motor Control, 110/120 VAC V Coil

Short Description

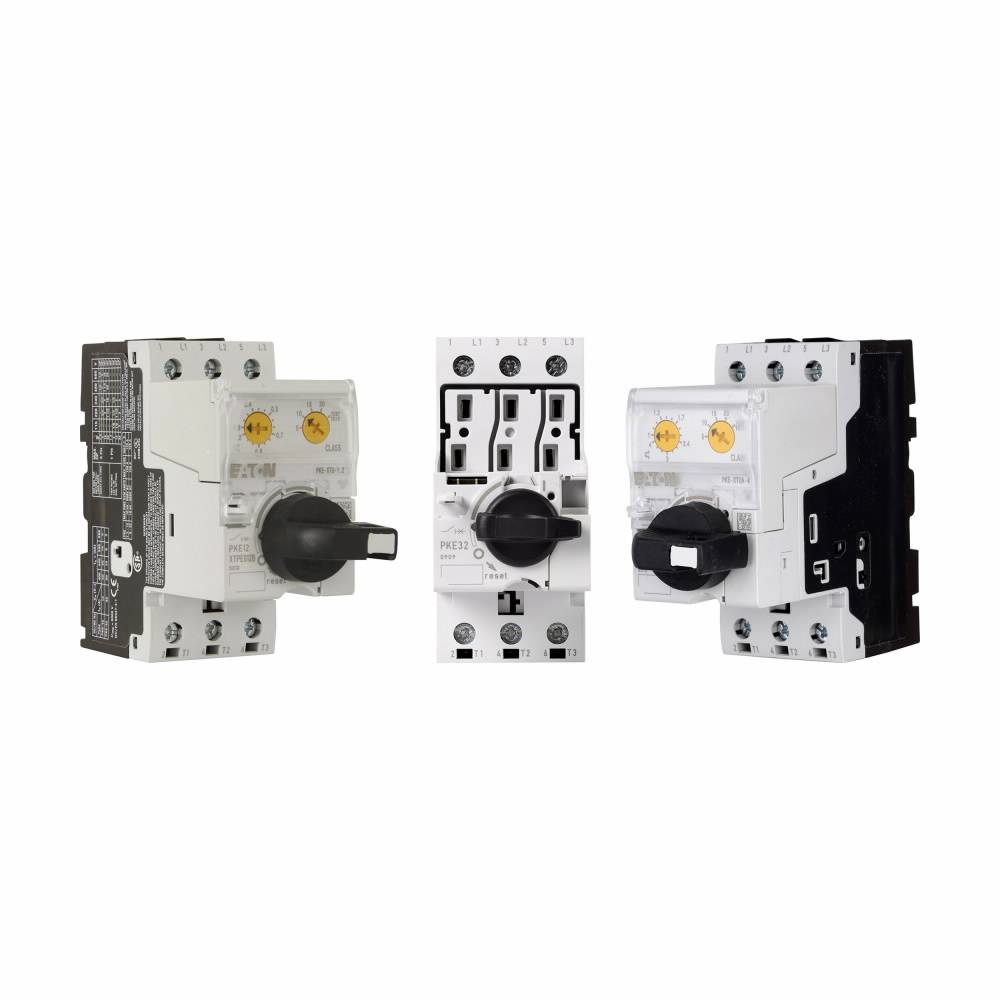

EATON XT IEC open non-reversing and reversing manual motor controllers combine a manual motor protector with an IEC contactor(s) to provide a complete motor protection solution by combining motor disconnect function, thermal overload protection, magnetic short-circuit protection and remote control operation in one compact, assembled unit. These assembled manual motor controllers cover motors with FLA ratings from 0.10 to 65 A. The UL 508 type F or type E labeled combination motor controller (CMC) includes a line side adapter (LSA). These assembled combination motor controllers cover motors with FLA ratings from 0.10 to 65 A.

EATON IEC Motor Control, Full Voltage Non-Reversing, Series: XT Series, 10 A, 50/60 Hz, 110/120 VAC Coil, Manual Reset, 3 ph, Mechanical, 6.3 to 10 A Full Load, 1NO-1NC Auxiliary, ON/OFF Rotary Handle Control, 3.77 in L x 1.77 in W x 7.03 in H

MFG #: XTSC010BBMA

EECO #: CHXTSC010BBMA

Brand: Eaton
UPC #: 786680185946
Attributes
Features
Documents
Product Information
Attributes
Phase
3
UNSPSC
39121521
Approval
UL 508, UL, CSA, CE
Reset Type
Manual
Coil Voltage
110/120
Current Rating
10 Amp
Connection Type
Mechanical
Control Voltage
110 Volt AC at 50 Hertz, 120 Volt AC at 60 Hertz
Frequency Rating
50/60
Number of Phases
3
Auxiliary Contact
1NO/1NC
Type
Full Voltage Non-Reversing
Series
XT Series
Includes
XTPAXEMCB Mechanical Connection Element
Overloads
Class 10
Dimensions
3.77 in L x 1.77 in W x 7.03 in H
Control Type
ON/OFF Rotary Handle
Operation Type
Full Voltage
Amperage Rating
10
Power Rating hp
3 HP at 200/240 Volt 3-Phase, 7-1/2 HP at 480/600 Volt 3-Phase (UL), 2.2 HP at 220/240 Volt 3-Phase, 4 HP at 380/415/500 Volt 3-Phase, 7.5 HP at 660/690 Volt 3-Phase (IEC)
Features
  • ON/OFF rotary handle with lockout provision
  • Visible trip indication
  • Test trip function
  • DIN rail mount
  • Class 10 overload protection
  • Built-in heater and magnetic trip elements to protect the motor
  • Phase loss sensitivity
  • Type 2 coordination
  • Ambient compensated up to 140 deg F
  • Control inputs located at front of starter for easy access and wiring
  • Wide range of coils
  • Short circuit trip at 14 times the maximum setting of the FLA adjustment dial
  • Factory-assembled
  • 45 mm frame at 7 to 15 A contactor/45 mm frame at 0.1 to 32 A MMP
