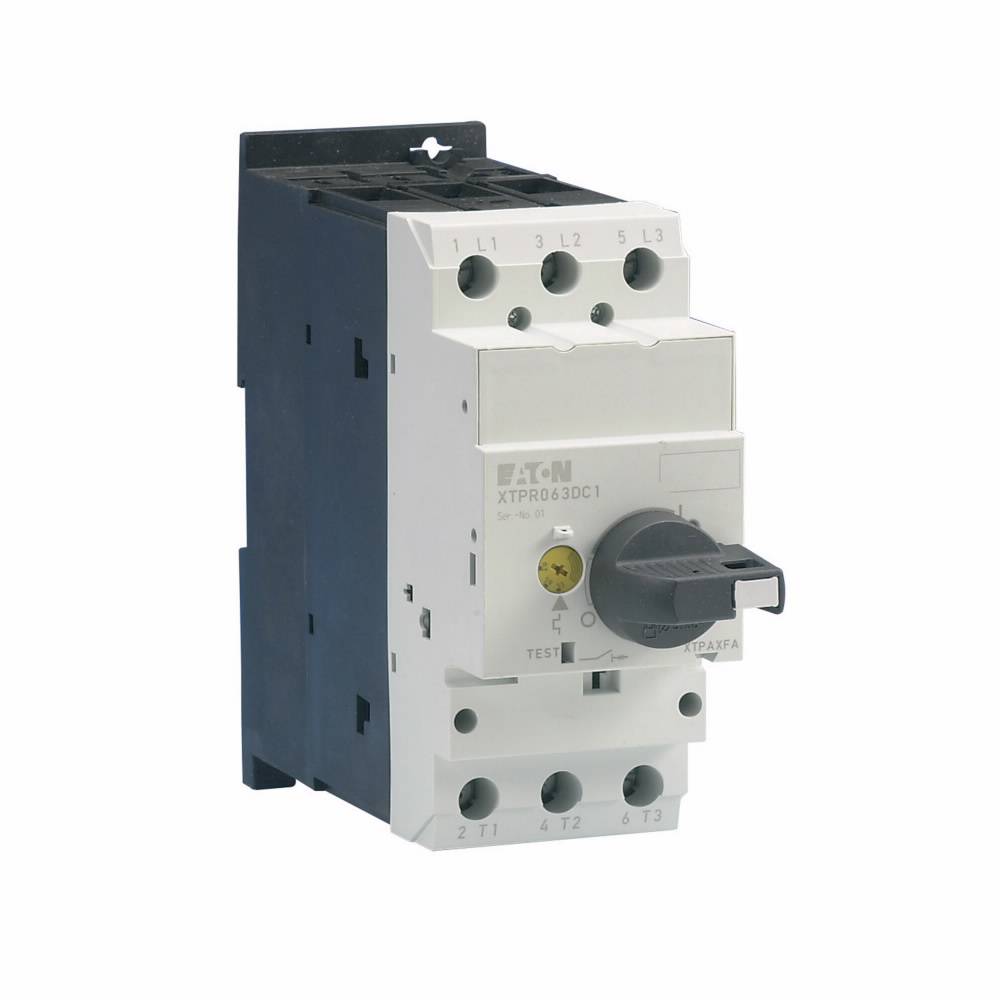

PrintEATON XTPR063DC1 XT Series D Frame Motor Protector, Rotary/On/Off Action, 1 Poles, NEMA 1/2/IP20 Enclosure
Eaton new XT family of manual motor protectors (MMPs) features a pushbutton or rotary ON/OFF manual disconnect, class 10 adjustable bimetallic overload relay and fixed magnetic short circuit trip capability in one compact unit. Two frame sizes are available - frame B (45 mm) for motors with FLA ratings up to 32 A and frame D (55 mm) covers motor FLA ratings up to 65 A.
EATON Motor Protector, D Frame, Series: XT Series, 690 VAC, 63 A, 40 to 60 Hz Frequency, 55 kW Wattage, 1 Pole, Setting: 40 A, Manual Reset, 3 ph, Screw Connection, Rotary/On/Off Action, Bi-Metal Overload Relay, 55 to 63 A Full Load, Rotary Control, NEMA 1/2/IP20 Enclosure, -25 to 55 deg C Operating, 45 mm L x 94 mm W x 93 mm H Dimensions
EECO #: CHXTPR063DC1
| Qty | Unit price |
|---|---|
| Ea | |
| 1 | $1,049.08 |
|
Slqt |
|
| 1 | $1,049.08 |
|
Stpk |
|
| 1 | $1,049.08 |
|
Unit |
|
| 1 | $1,049.08 |
