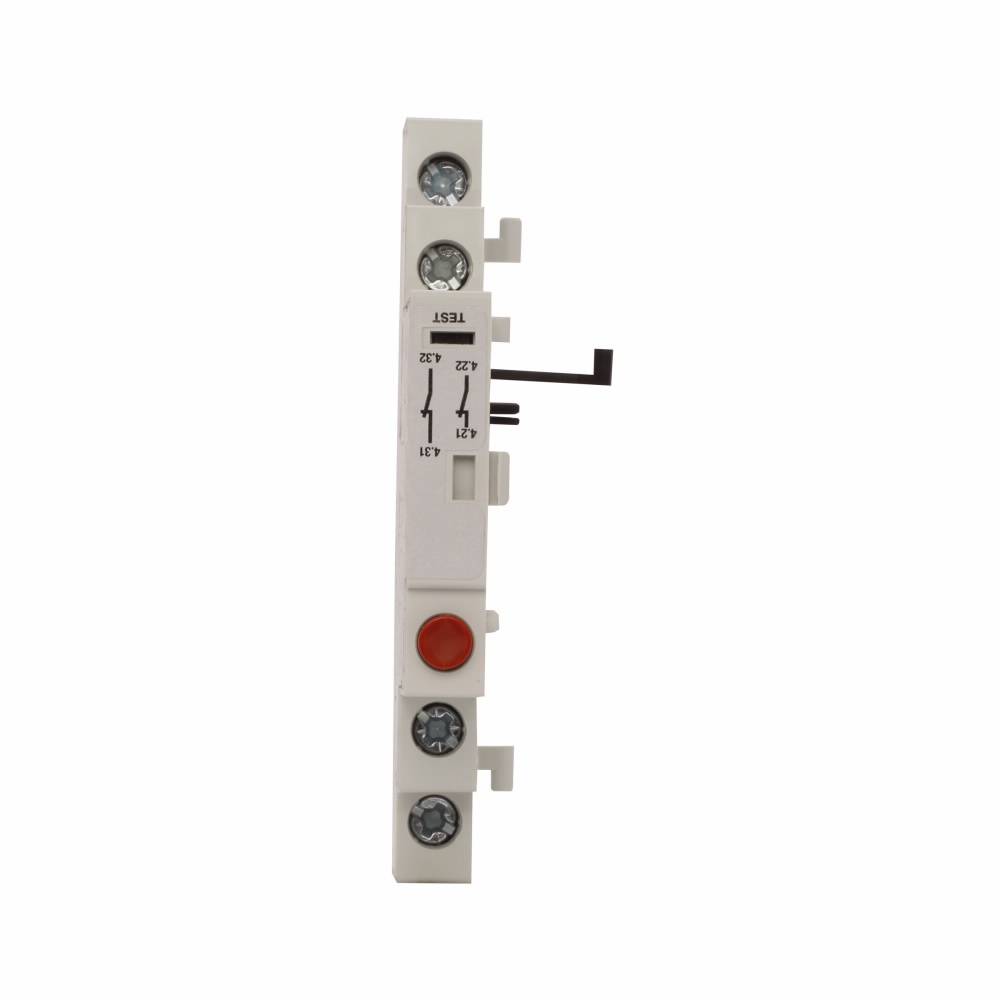

EATON XTPAXSATR02 Auxiliary Contact, 250 VDC, 0.25 to 3.5 A, 2 Contacts

Short Description

1N0-2NC, Manual Motor Protector Trip Indicating Auxiliary Contact

EATON Auxiliary Contact, 250 VDC, 0.25 to 3.5 A, 2 Contacts, Environmental Conditions: -25 to 55 deg C Ambient, For Use With: PKZM01/PKZM0/PKZM4/PKZM0-T/PKM0/PKE Motor Protective Circuit Breaker and XT Manual Motor Protector, 3.54 in H x 1.02 in W x 2.68 in D Dimensions

MFG #: XTPAXSATR02

EECO #: CHXTPAXSATR02

Brand: Eaton
UPC #: 015080728997
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121529
Used On
Manual Motor Protector (XTPB/XTPR/XTPM) and Manual Transformer Protector (XTPT)
Environmental Conditions
-25 to 55 deg C Ambient
Dimensions
3.54 in H x 1.02 in W x 2.68 in D
Amperage Rating
0.25 to 3.5
Number of Contacts
2
Suitable For Use With
PKZM01/PKZM0/PKZM4/PKZM0-T/PKM0/PKE Motor Protective Circuit Breaker and XT Manual Motor Protector
Surge Current per Phase
Manual Motor Protector (XTPB/XTPR/XTPM) and Manual Transformer Protector (XTPT)
Features
  • 3.5 A at 220/240 VAC, 2 A at 380/415 VAC, 1 A at 440/500 VAC, 2 A at 24 VDC, 1 A at 60 VDC, 0.5 A at 110 VDC, 0.25 A at 220 VDC
