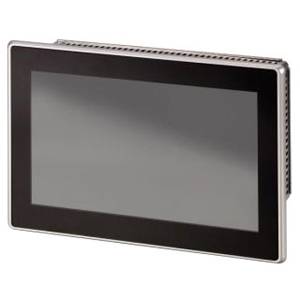

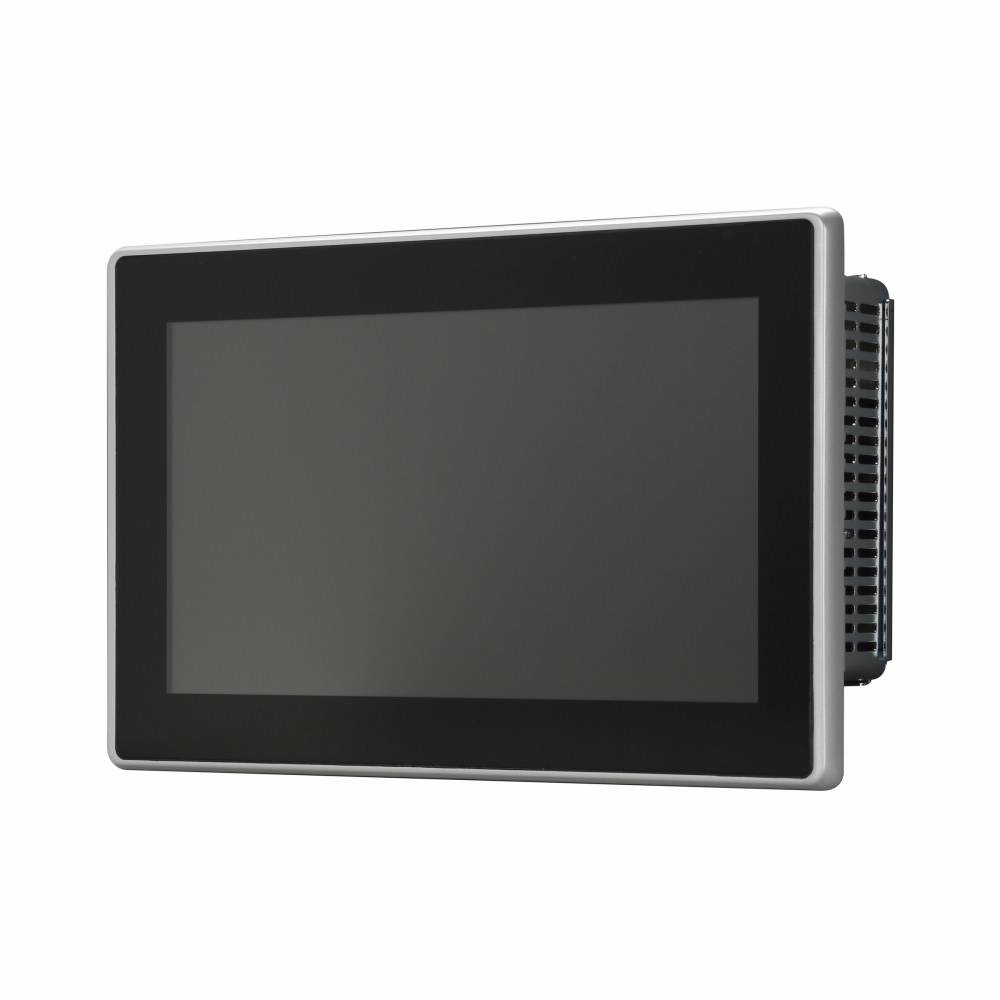

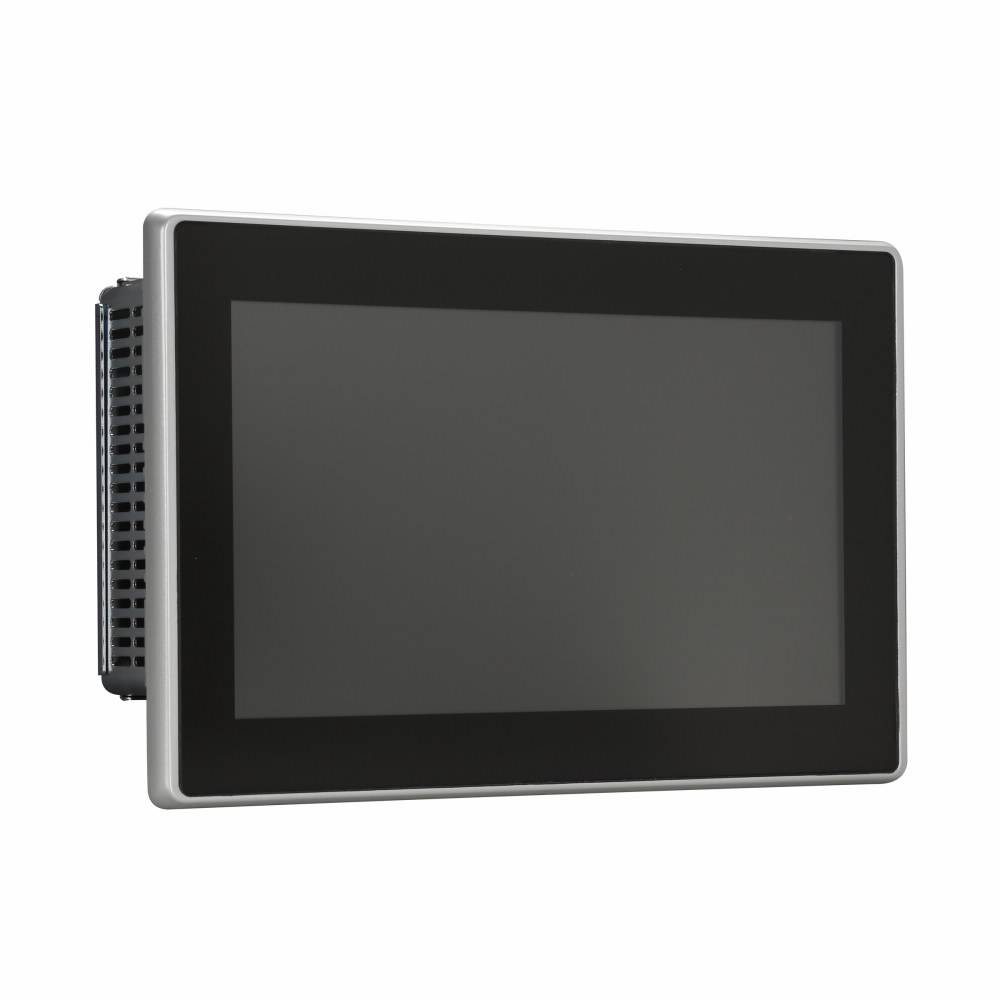

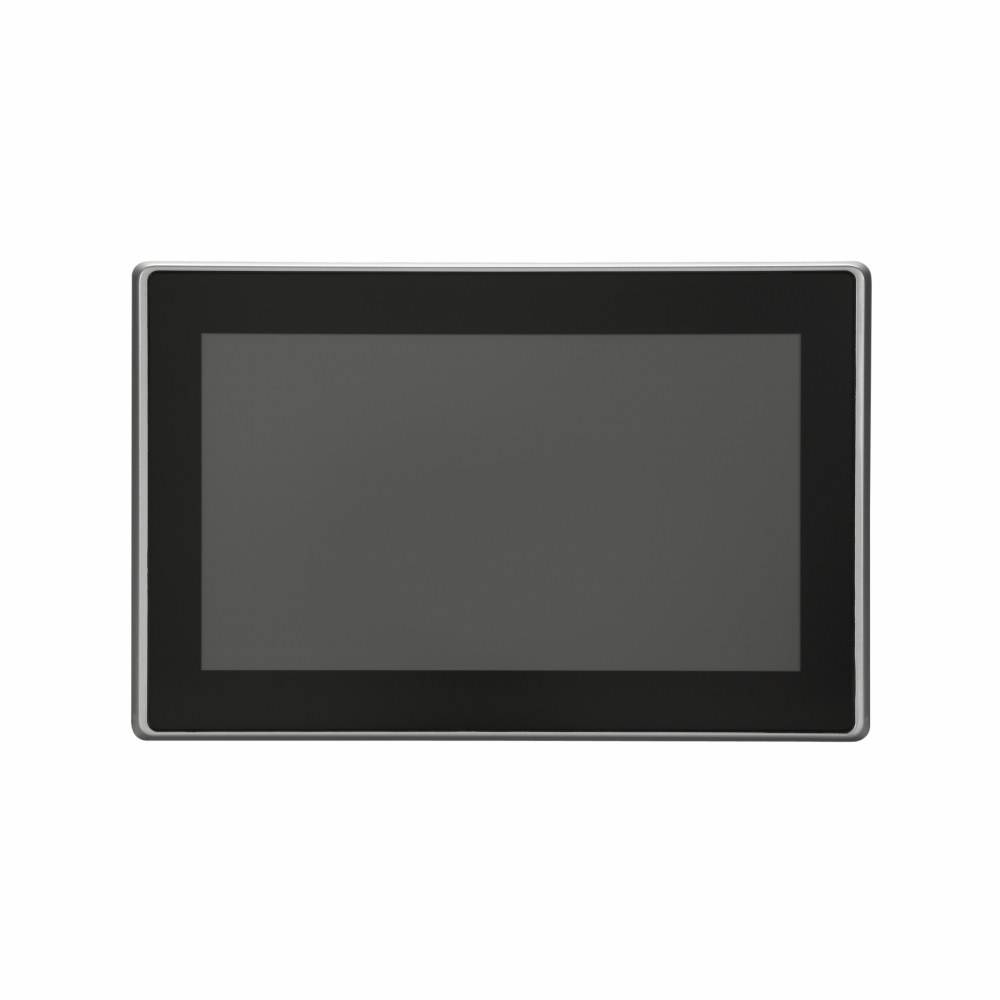

EATON XP-503-10-A10-A00-1V Multi-Touch Widescreen Panel PC, 24 VDC, 1.2 A, 10.1 in LED Display, 2 Ethernet, 2 Serial, 4 USB 2 Ethernet, 1 RS-232, 1 RS-485, 2 USB 3.0

Short Description

For harsh, demanding applications, industrial panel PCs set the standard for configurability and robustness. EATON XP500 series industrial panel PC meets these demands with a scratch-resistant toughened glass screen, cast aluminum housing and fanless design. These features make the XP500 a slim space saving panel that is able to survive the harshest environments.

EATON Widescreen Panel PC, Multi-Touch, Series: XP-500, 24 VDC, 1.2 A Power Source, LED Display, 10.1 in Display, 2 Ethernet, 2 Serial, 4 USB 2 Ethernet, 1 RS-232, 1 RS-485, 2 USB 3.0 Communication Ports, 1920 x 1080 pixel Display Resolution, Visual Designer Software, Memory: 4 GB DDR3-RAM, 500 cd/sq-m Brightness, 0 to 50 deg C, Metal, 16 in L x 12 in W x 9 in H Dimensions

MFG #: XP-503-10-A10-A00-1V

EECO #: CHXP50310A10A001V

Brand: Eaton
UPC #: 640130098173
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43211903
Material
Metal
Resolution
1024 x 600
Application
Electrical Assemblies, Panels, EOEMs and Industrial Applications
Display Type
LED
Backlight Type
LED
Mounting
Panel
Enclosure
NEMA 4X/12, IP20/65
Operating Voltage
24 Volt DC
Temperature Rating
0 to 50
Operating Temperature
0 to 50 Deg C
Operator Interface Type
Touch screen
Memory
4 GB DDR3-RAM
Series
XP-500
Software
Visual Designer
Dimensions
16 in L x 12 in W x 9 in H
Display Size
10.1
Operating Current
1.2 Amp
Communication Ports
2 Ethernet, 2 Serial, 4 USB 2 Ethernet, 1 RS-232, 1 RS-485, 2 USB 3.0
Features
  • The projected capacitive touch (PCT) technology used in these units offers intuitive multi-touch operation with multiple fingers or even with two hands
  • The devices run on the windows embedded standard 7 operating system, this choice ensures that they are open to a wide range of user software, including optimal compatibility with EATON's visualization software
  • The high front-side degree of protection and UL Class I Division 2 certification allows the devices to be deployed in harsh industrial environments and by the processing industry
  • The non-reflective, edgeless safety glass front on the display makes it easy to clean, even with powerful cleaning agents, to remove all residues
  • The AMD 1.65 GHz dual core CPUs with on-board Radeon graphics card deliver strong processing power and high performance graphics
  • Panel mounting
  • 1.65 GHz AMD processor, 32 GB SSD memory
  • Multi-touch glass screen
  • Windows embedded standard 7 panel PC
