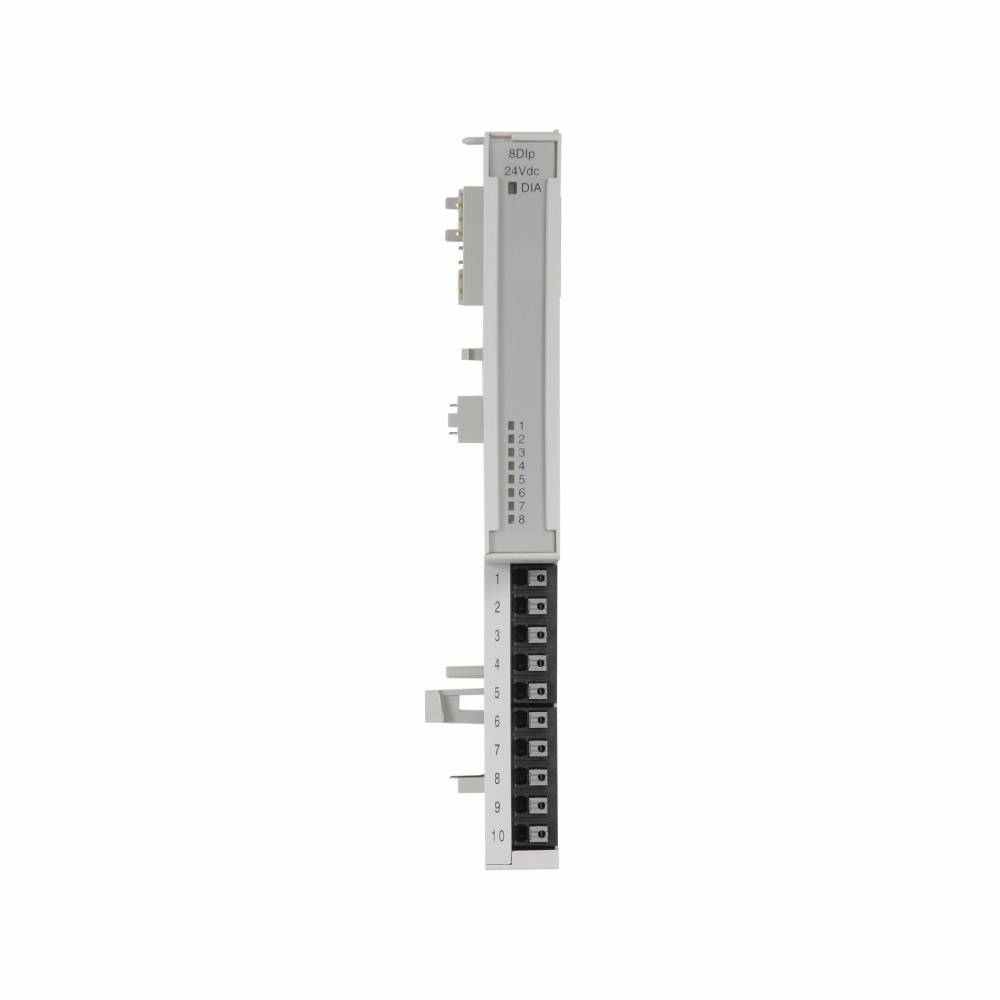

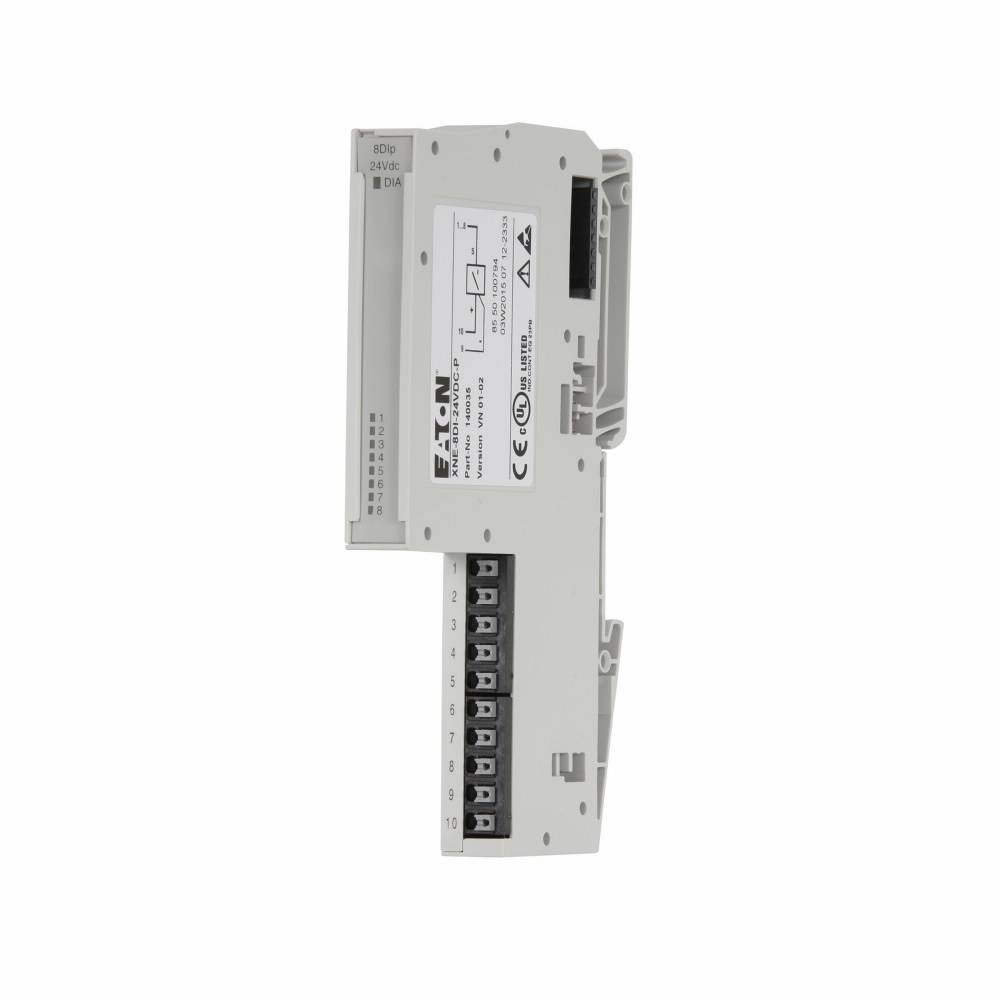

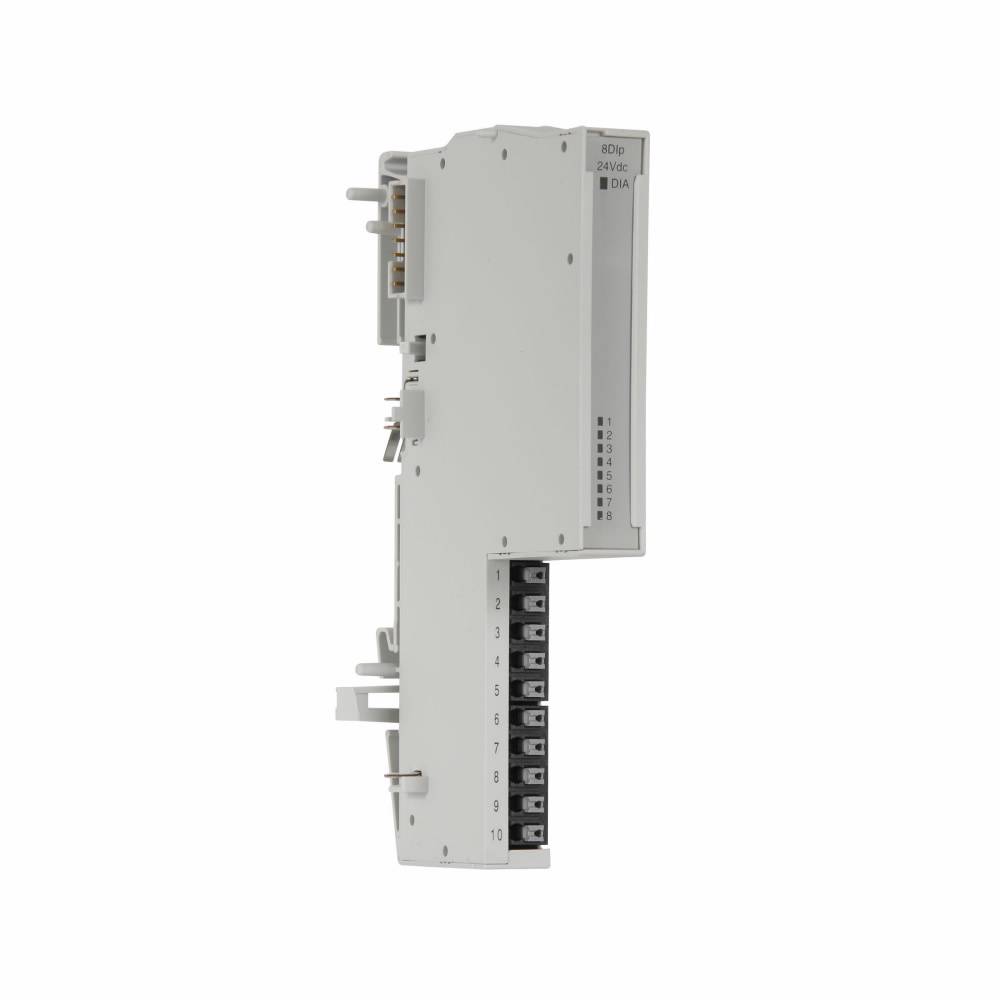

EATON XNE-8DI-24VDC-P XNE Integrated Positive Switching Digital Input Module, 8 Inputs

Name: EATON XNE-8DI-24VDC-P XNE Integrated Positive Switching Digital Input Module, 8 Inputs
Brand: Eaton
SKU: CHXNE8DI24VDCP
Availability: InStock

Short Description

The powerful XI/ON I/O system includes two series of I/O modules: the XN and the XNE. The XN series features highly granular modularity, with hot swappable plug-in modules, and the XNE series features integrated I/O modules and bases in higher-density configurations. XI/ON is designed for decentralized signal processing and provides intelligent, adaptable I/O for applications across industries.

EATON Digital Input Module, Integrated Positive Switching, Series: XNE, 8 Inputs, 24 VDC, Push-In/Spring Loaded Terminal, 0 to 55 deg C, 5-1/2 in L x 3 in W x 1-1/2 in H Dimensions

MFG #: XNE-8DI-24VDC-P

EECO #: CHXNE8DI24VDCP CHXNE8DI24VDCP

Brand: Eaton

Attributes

Features

Documents

Product Information

Attributes

UNSPSC

32151602

Application

Commercial, Institutional Buildings and Structures Applications

Terminal Type

Push-In/Spring Loaded

Voltage Rating

Number of Inputs

8.0000

Temperature Rating

0 to 55

Type

Integrated Positive Switching

Series

XNE

Warranty

1 year

Dimensions

5-1/2 in L x 3 in W x 1-1/2 in H

Features

XI/ON XNE completes the XI/ON I/O system with price and space optimized I/O modules and gateways
The XNE gateways use the Ethernet/IP, Modbus® TCP Ethernet, CANopen and PROFIBUS-DP bus systems
XNE gateways with integrated bus terminating resistors
Full compatibility with the standard XI/ON system
No base module required
High channel density (up to 16 DI/DO on 12.5 mm W)
Multi-functional slices
Diagnostics interface
