Eaton

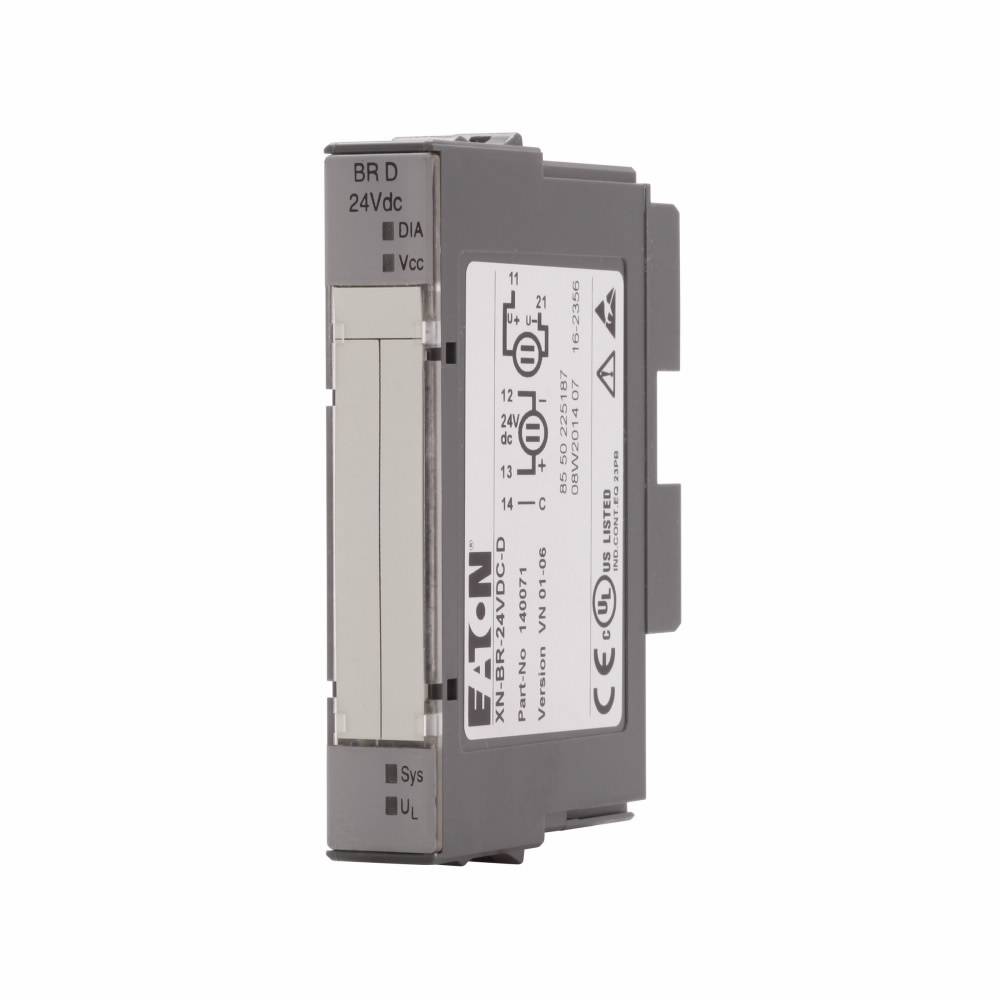

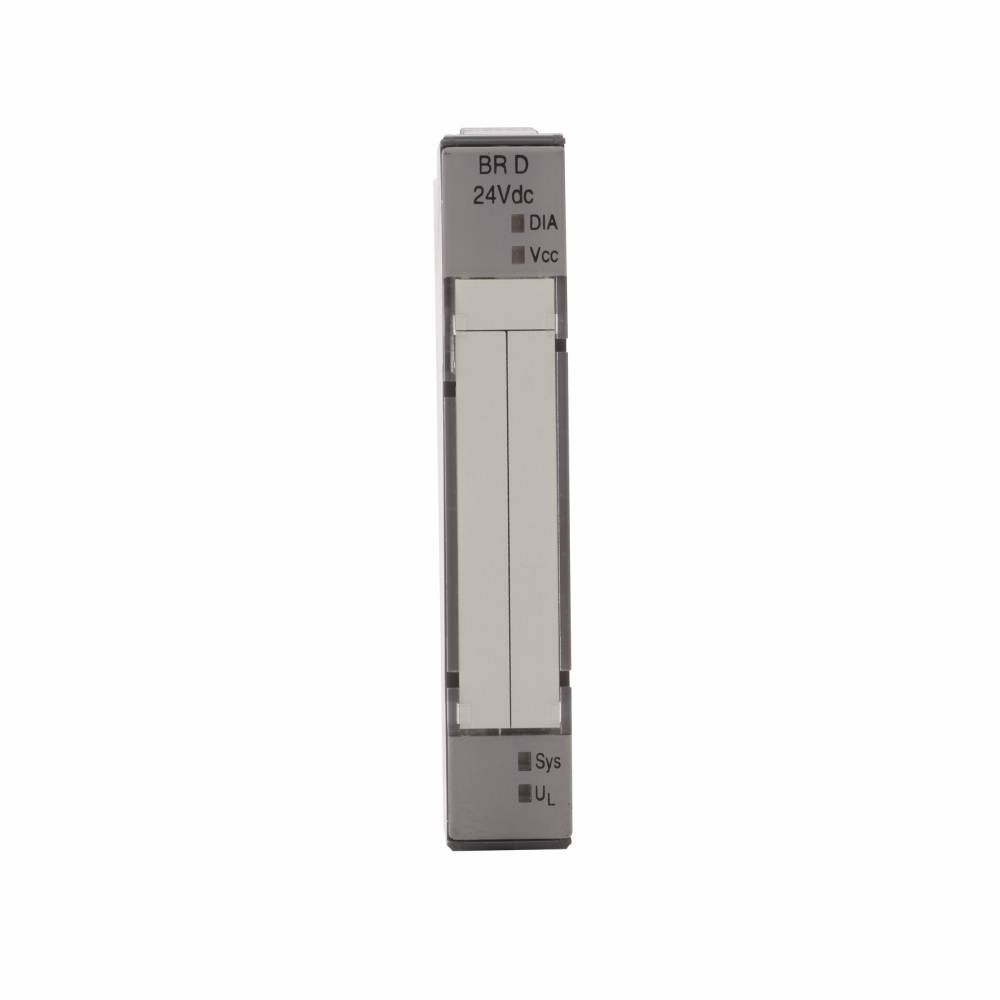

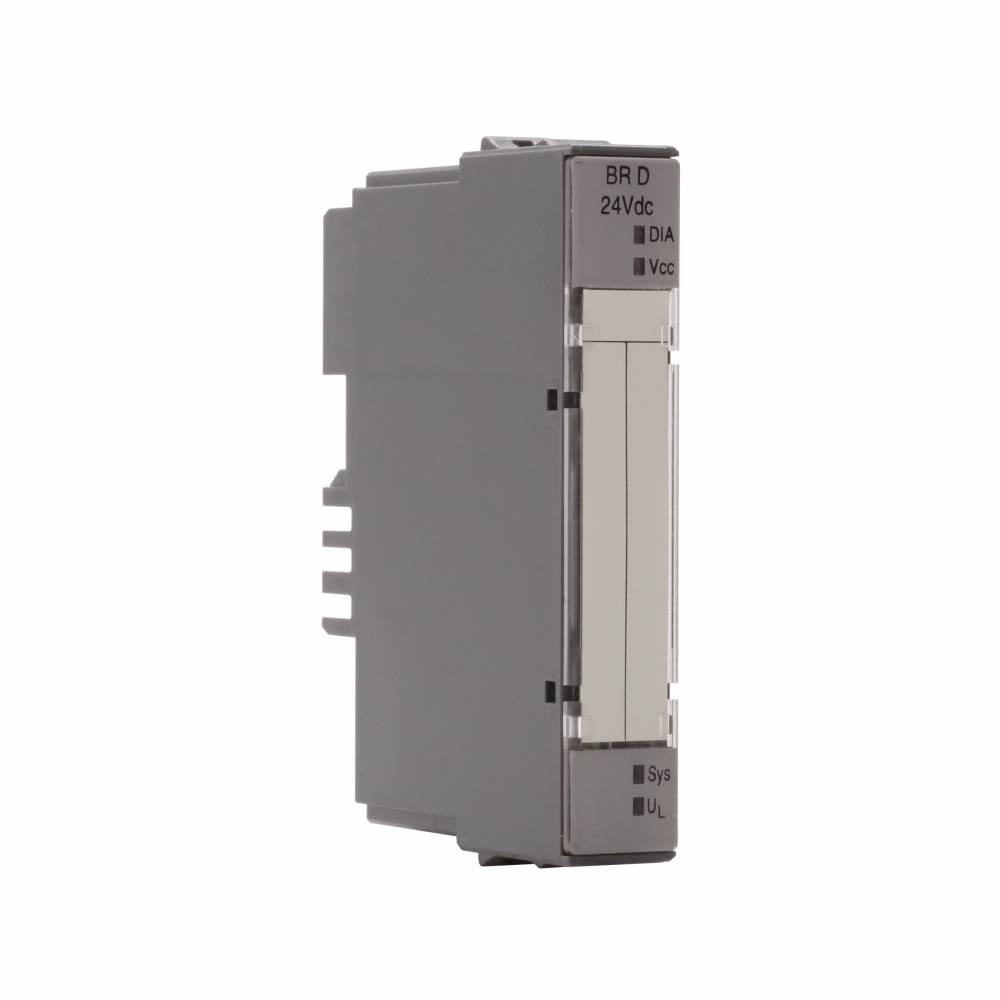

EATON XN-BR-24VDC-D Logic Controller

Short Description

The powerful XI/ON I/O system includes two series of I/O modules: the XN and the XNE. The XN series features highly granular modularity, with hot swappable plug-in modules, and the XNE series features integrated I/O modules and bases in higher-density configurations. XI/ON is designed for decentralized signal processing and provides intelligent, adaptable I/O for applications across industries.

EATON Logic Controller, Series: XN Series, 24 VDC, 1.5 A, Spring Cage Terminal, 2-1/2 in L x 3 in W x 1/2 in H Dimensions
MFG #: XN-BR-24VDC-D

EECO #: CHXNBR24VDCD

Brand: Eaton
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151602
Application
For XN-P3T-SBB, XN-P3S-SBB, XN-P4T-SBBC, XN-P4S-SBBC, XN-P3T-SBB-B, XN-P3S-SBB-B, XN-P4T-SBBC-B and XN-P4S-SBBC-B base module washer
Terminal Type
Spring Cage
Voltage Rating
24
Series
XN Series
Warranty
1 year
Dimensions
2-1/2 in L x 3 in W x 1/2 in H
Amperage Rating
1.5
Features
  • The standard gateways use the ModBus TCP, DeviceNet, Ethernet, CANopen and PROFIBUS DP bus systems
  • The use of pluggable I/O modules is independent on the fieldbus used
  • Wiring is implemented on the base module, fixed wiring
  • Fast module exchange under power (hot swapping)
  • Generation of diagnostics information to higher level controller
  • Up to 74 slice modules can be connected per gateway
  • Mechanical coding of modules
  • Diagnostics interface
