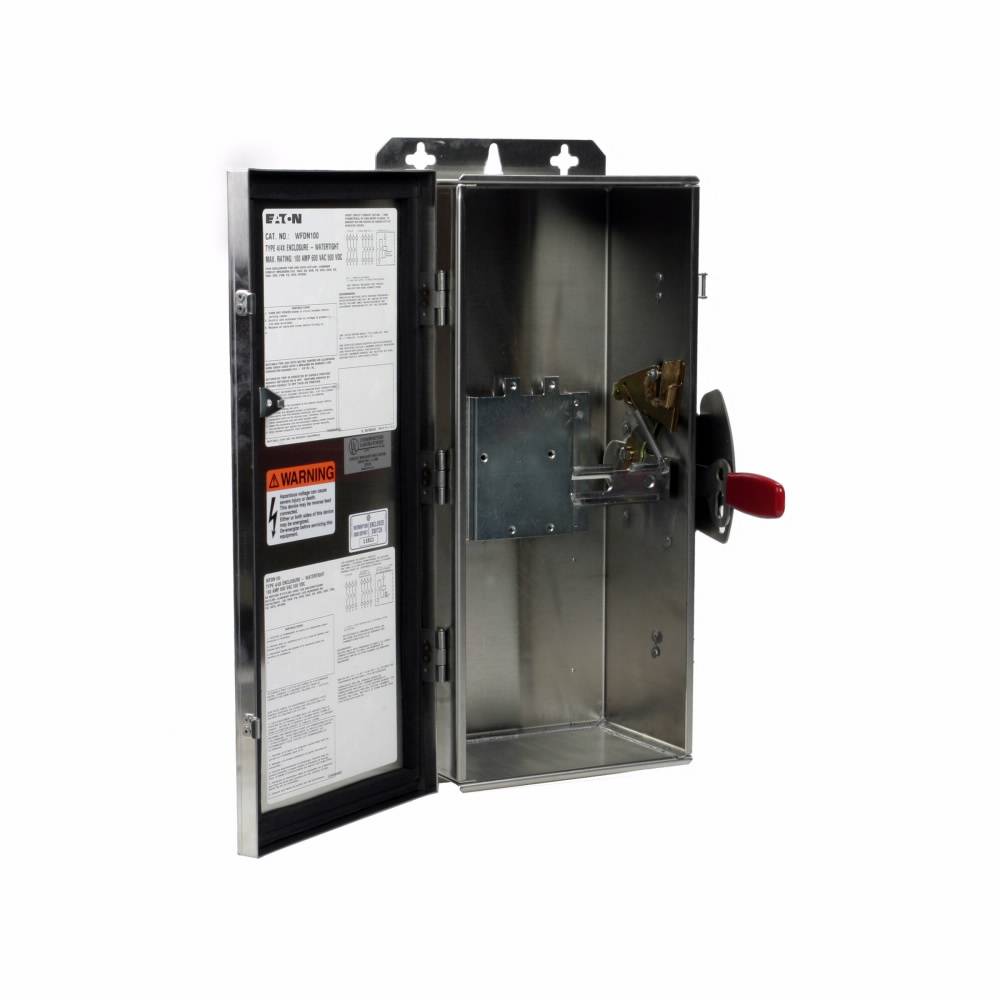

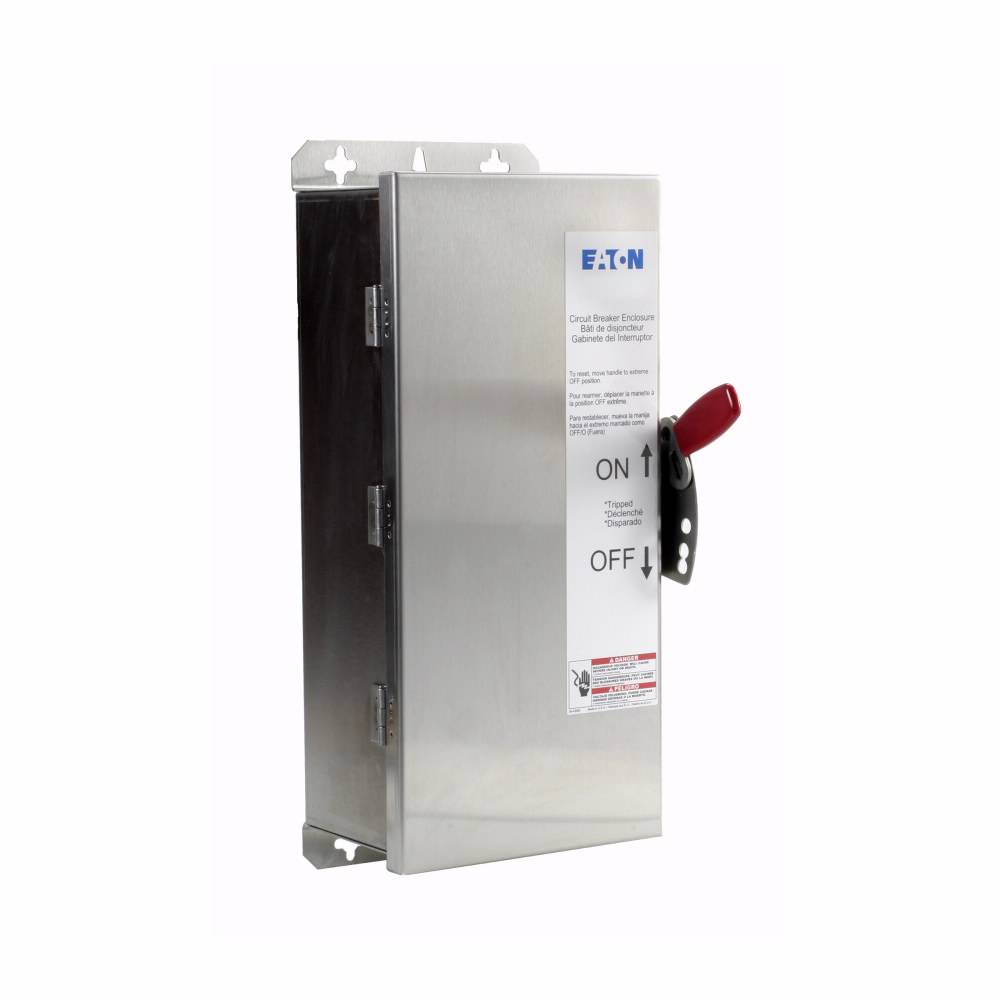

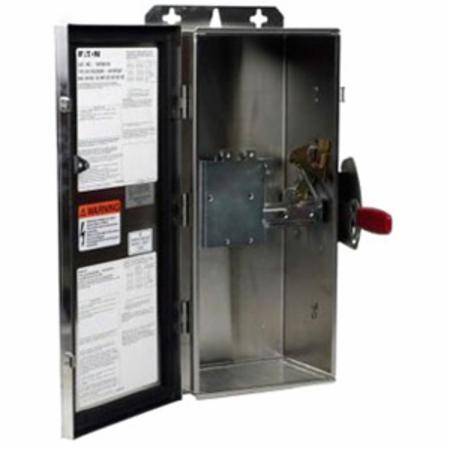

EATON WFDN225 C Series Dustproof Circuit Breaker Enclosure, 25.66 in L x 8.84 in W x 9.31 in H, NEMA 4/4X/5, Stainless Steel
EATON WFDN225 C Series Dustproof Circuit Breaker Enclosure, 25.66 in L x 8.84 in W x 9.31 in H, NEMA 4/4X/5, Stainless Steel
EATON WFDN225 C Series Dustproof Circuit Breaker Enclosure, 25.66 in L x 8.84 in W x 9.31 in H, NEMA 4/4X/5, Stainless Steel
EATON WFDN225 C Series Dustproof Circuit Breaker Enclosure, 25.66 in L x 8.84 in W x 9.31 in H, NEMA 4/4X/5, Stainless Steel
EATON WFDN225 C Series Dustproof Circuit Breaker Enclosure, 25.66 in L x 8.84 in W x 9.31 in H, NEMA 4/4X/5, Stainless Steel
EATON WFDN225 C Series Dustproof Circuit Breaker Enclosure, 25.66 in L x 8.84 in W x 9.31 in H, NEMA 4/4X/5, Stainless Steel
Share Share Print Print
Eaton

EATON WFDN225 C Series Dustproof Circuit Breaker Enclosure, 25.66 in L x 8.84 in W x 9.31 in H, NEMA 4/4X/5, Stainless Steel

Short Description

9.31" x 8.84" x 25.66", 225 A, 304 Stainless Steel, Surface Mount, ED/EDH/ECD/FD/FDB/FDC/HFD, Circuit Breaker Enclosure

EATON Circuit Breaker Enclosure, Dustproof, Series: C Series, 25.66 in Length, 8.84 in Width, 9.31 in Height, NEMA 4/4X/5, Interlocked Cover, ED/EDB/EDS/EDH/EDC/FD/FDB/FDE/HFD/HFDE/FDC/FDCE/HFDDC Frame, 3 Pole, Lock: Padlock, 125 to 225 A, 600 VAC/500 VDC, Surface Mount, Stainless Steel

MFG #: WFDN225

EECO #: CHWFDN225

Brand: Eaton
UPC #: 786679002377
Attributes
Features
Documents
Product Information
Attributes
Frame
ED/EDB/EDS/EDH/EDC/FD/FDB/FDE/HFD/HFDE/FDC/FDCE/HFDDC
Length
25.66
UNSPSC
39121318
Approval
UL 489, CSA-C22.2
Material
Stainless Steel
Application
Service Entrance and Circuit Protection Applications
Nema Rating
NEMA 4/4X
Mounting Type
Surface
Mounting
Surface
Size
9.31 Inch Width x 8.84 Inch Depth x 25.66 Inch Height
Type
Dustproof
Width
8.84
Height
9.31
Series
C Series
Cover Type
Interlocked
Breaker Type
ED/EDH/ECD/FD/FDB/FDC/HFD
Breaker/Switch Current Rating
225 Amp
Features
  • Operating handle can be padlocked in the OFF position and is interlocked to prevent the door from opening when the breaker is on
  • Without knockouts or other openings
