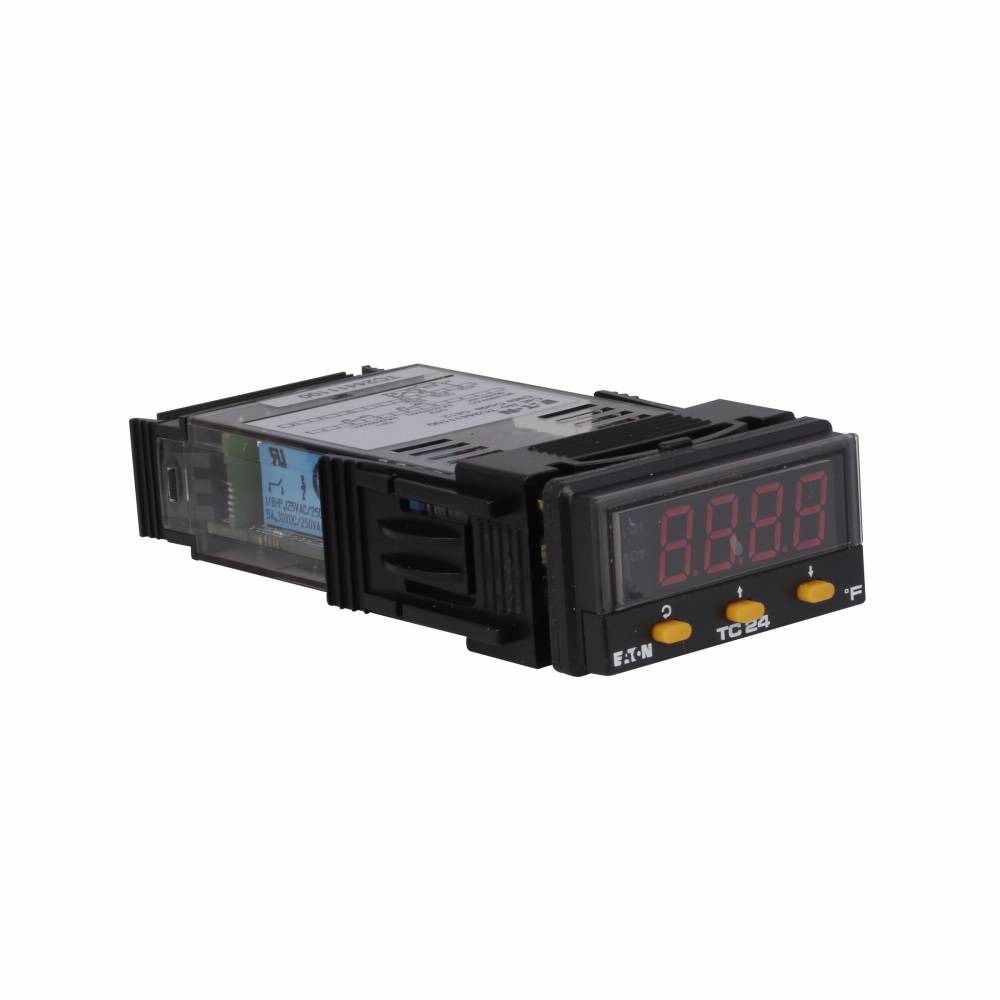

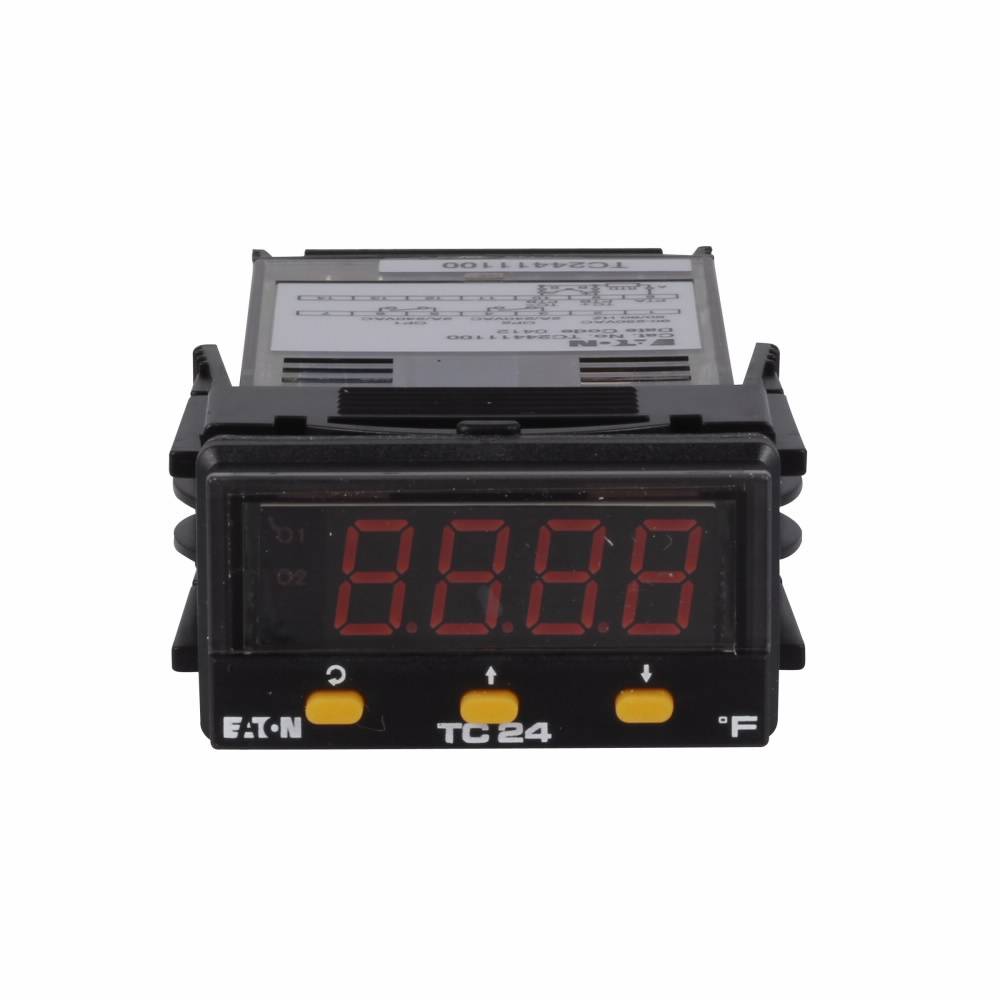

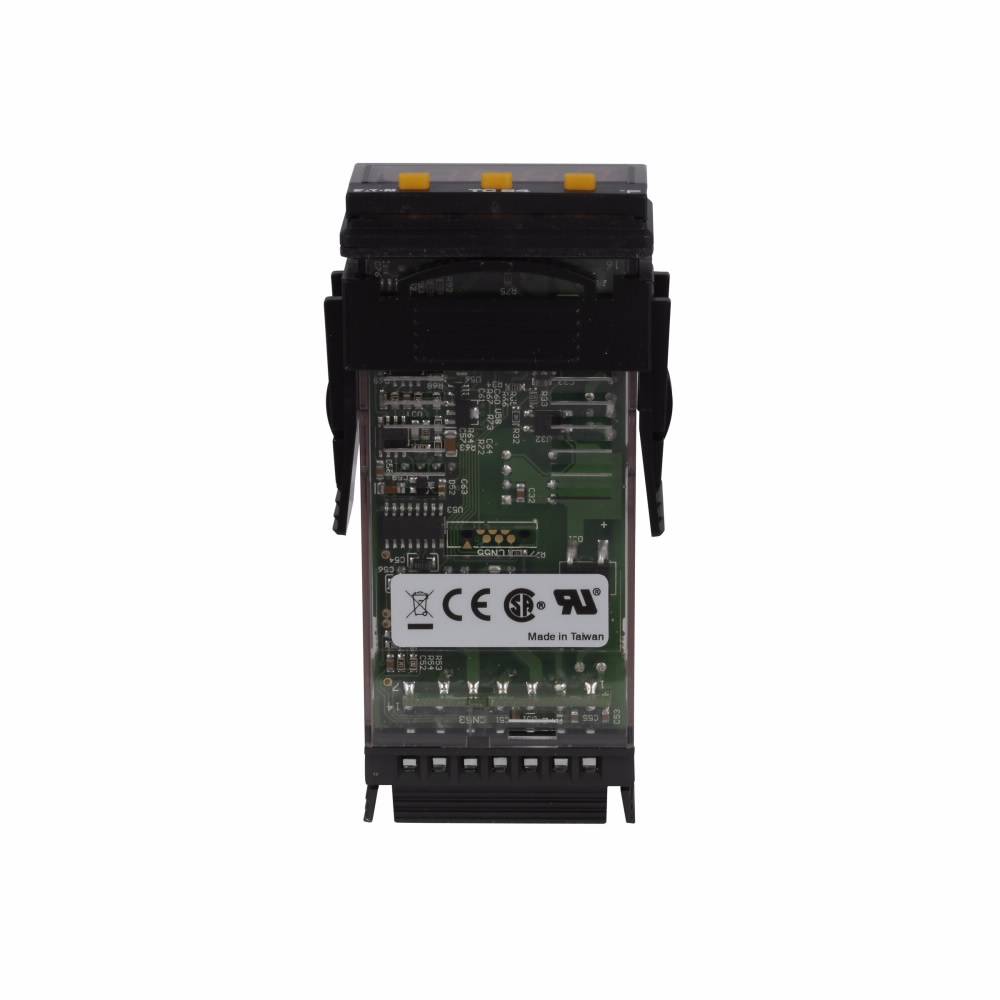

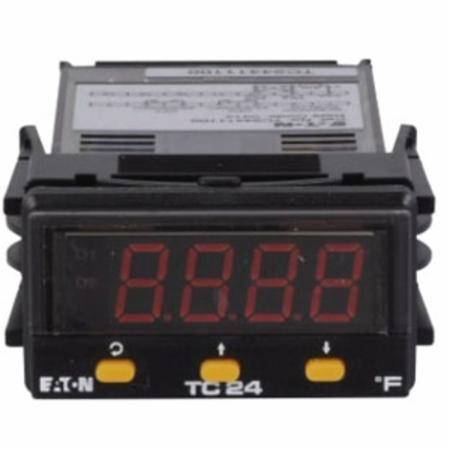

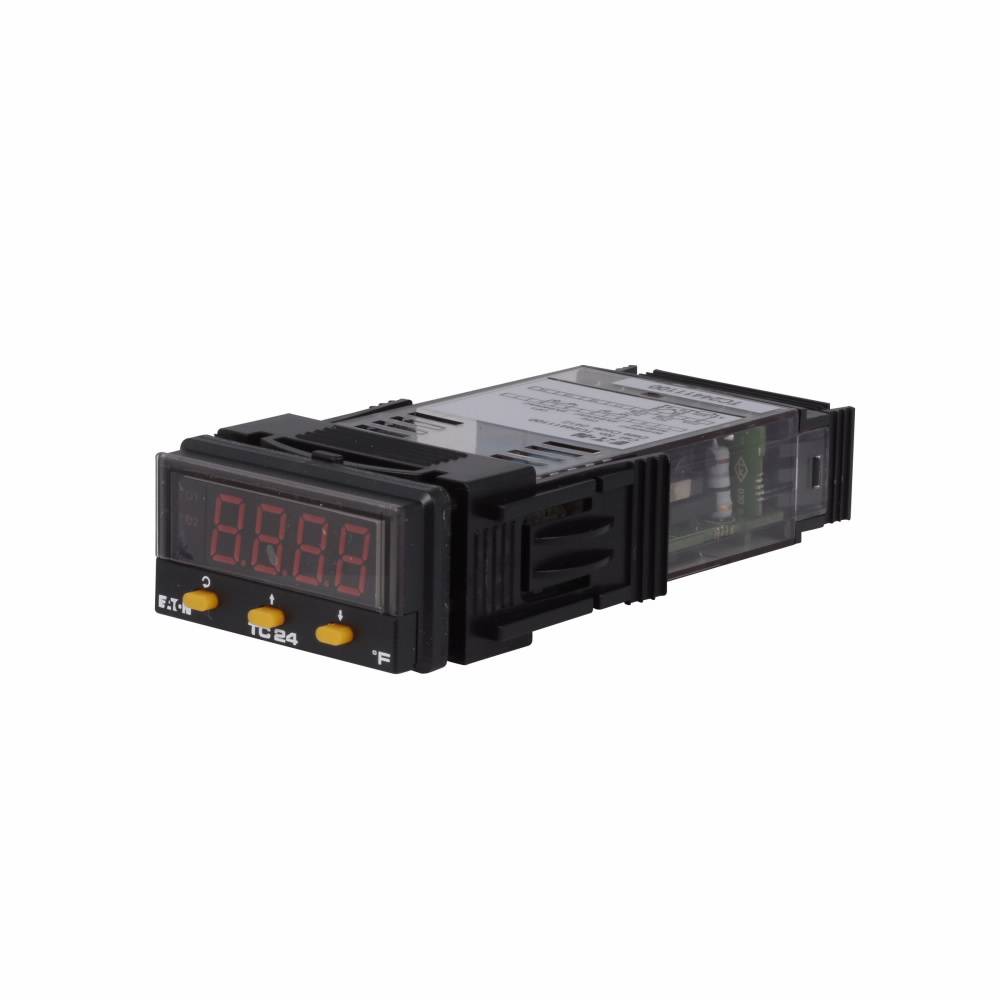

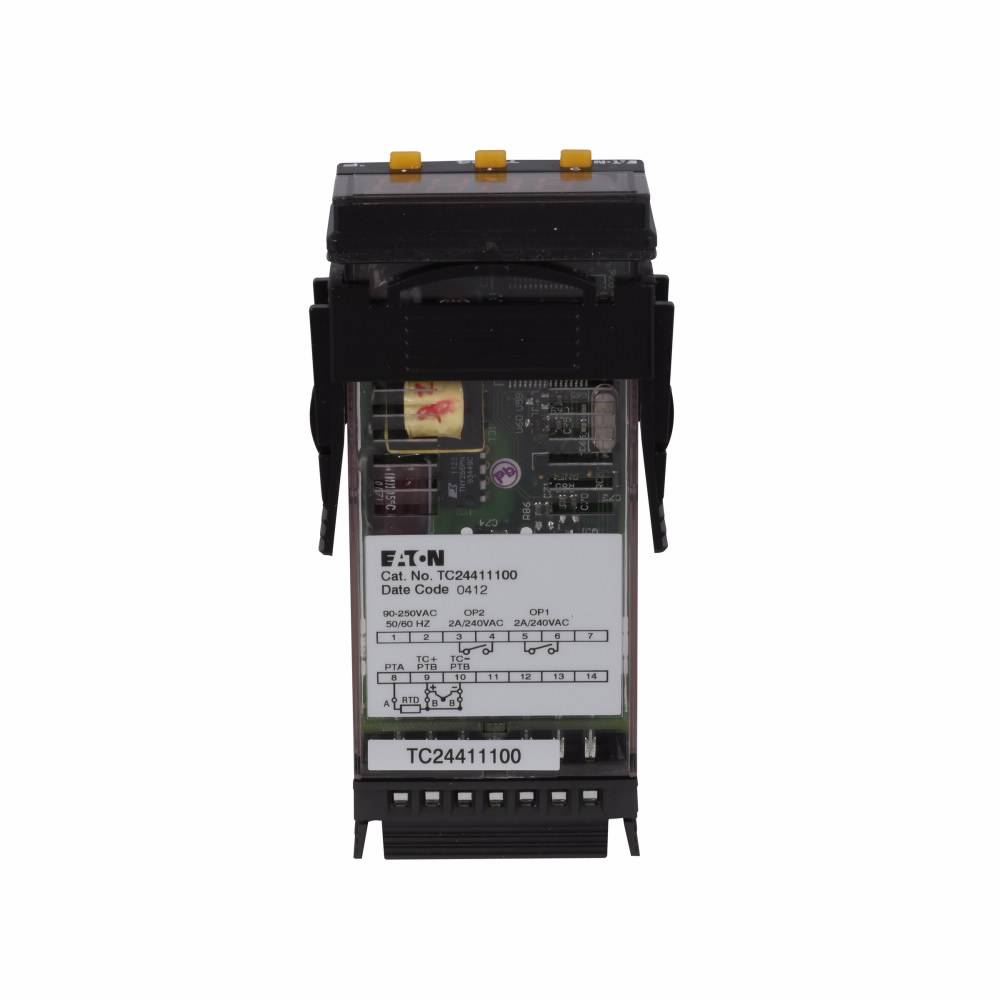

EATON TC24411100 Temperature Controller, 2-Relay Output

Short Description

1.96" x 4.35" x 1.04", 90 to 250 VAC, 14 to 122 Deg F, Normal, Latching, Hold, Latching/Hold, Relay Temperature Controller

EATON Temperature Controller, Series: TC Series, 2-Relay Output, 90 to 250 VAC, LED Display, DIN 1/32 DIN, IP65 Enclosure, 1-1/2 in L x 4-1/2 in W x 1-1/2 in H Dimensions

MFG #: TC24411100

EECO #: CHTC24411100

Brand: Eaton
UPC #: 786685180915
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
41111902
Accuracy
+/- 2 Deg C
Application
For heat treating, baking, packaging, furnace control, chillers, electrical assemblies, panels and OEMs
Display Type
LED
Enclosure Type
IP65
Output
2-Relay
Voltage Rating
90 to 250
Operating Temperature
14 to 122 Deg F
Size
1.96 Inch Width x 4.35 Inch Depth x 1.04 Inch Height
Series
TC Series
Humidity
0 to 90 Percent RH
Warranty
1 year
Alarm Mode
Normal, Latching, Hold, Latching/Hold
Dimensions
1-1/2 in L x 4-1/2 in W x 1-1/2 in H
Control Mode
Relay
Alarm Function
Dwell Timer, Deviation High/Low Alarm, Deviation Band High/Low Alarm, PV High/Low Alarm
Instrument Range
-250 to 400 Deg C
Features
  • Universal temperature inputs allow user to select from PT100 or J, K, T, E, B, R, S, N, L thermocouples without modification to the unit
  • Advanced fuzzy modified PID technology minimizes overshoot/undershoot and allows quick and accurate responses
  • Fast sampling rate of up to five times per second ensures accuracy in fast processes
  • Standard IP65 front panel (TC48) provides protection in washdown and other challenging environments
EATCORE21210_V12T24_97
MOELLEE77398_1
IDW_DOCUMENT_3d156eab1f1887545c115932b0e9ae0ee7f5a16e26cb37b93b6fd4ba7c73f706
Qty Unit price
Ea
1 $313.99

Slqt
1 $313.99

Stpk
1 $313.99

Unit
1 $313.99
