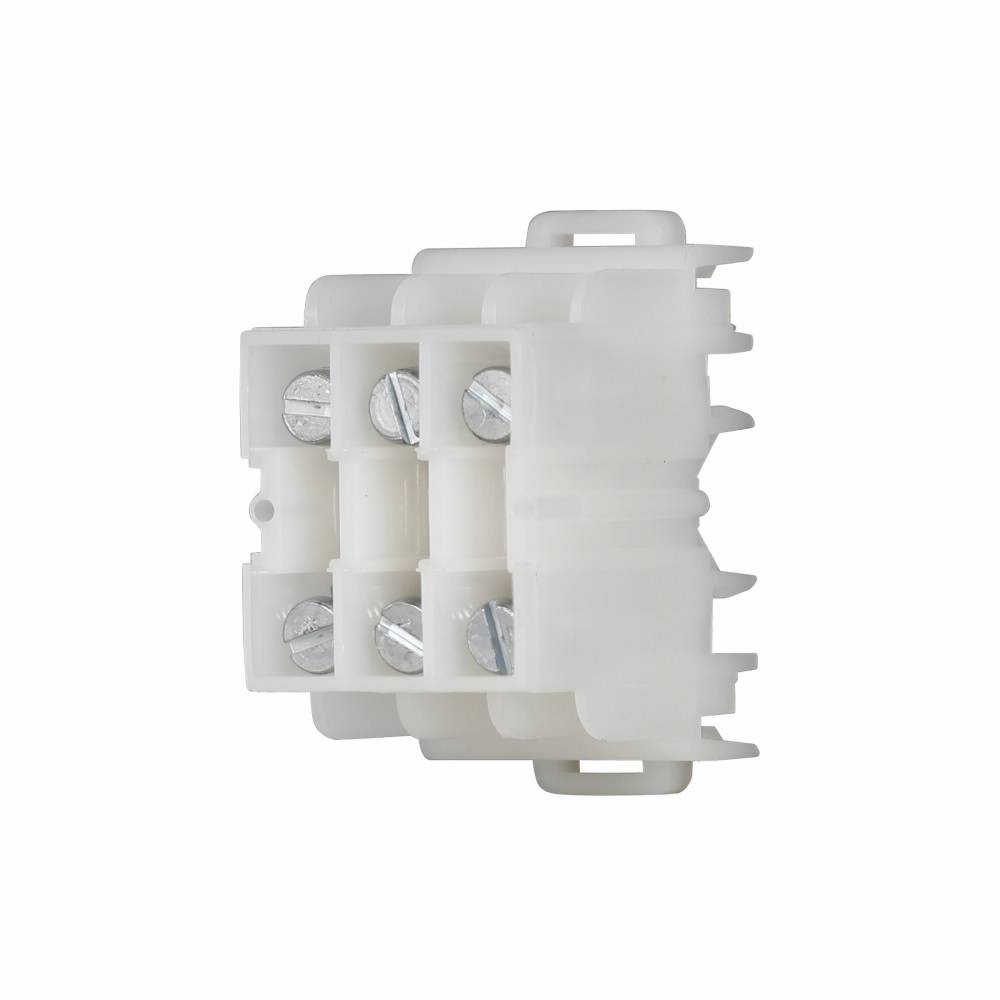

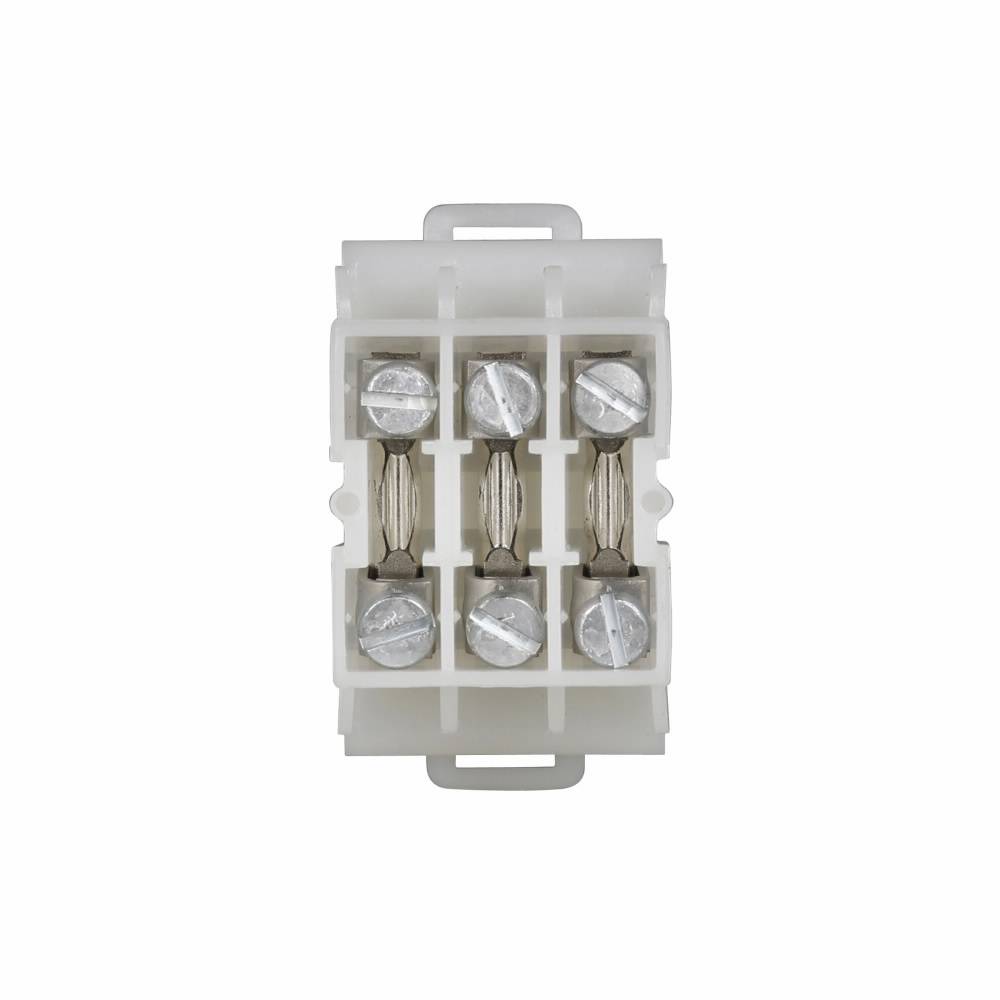

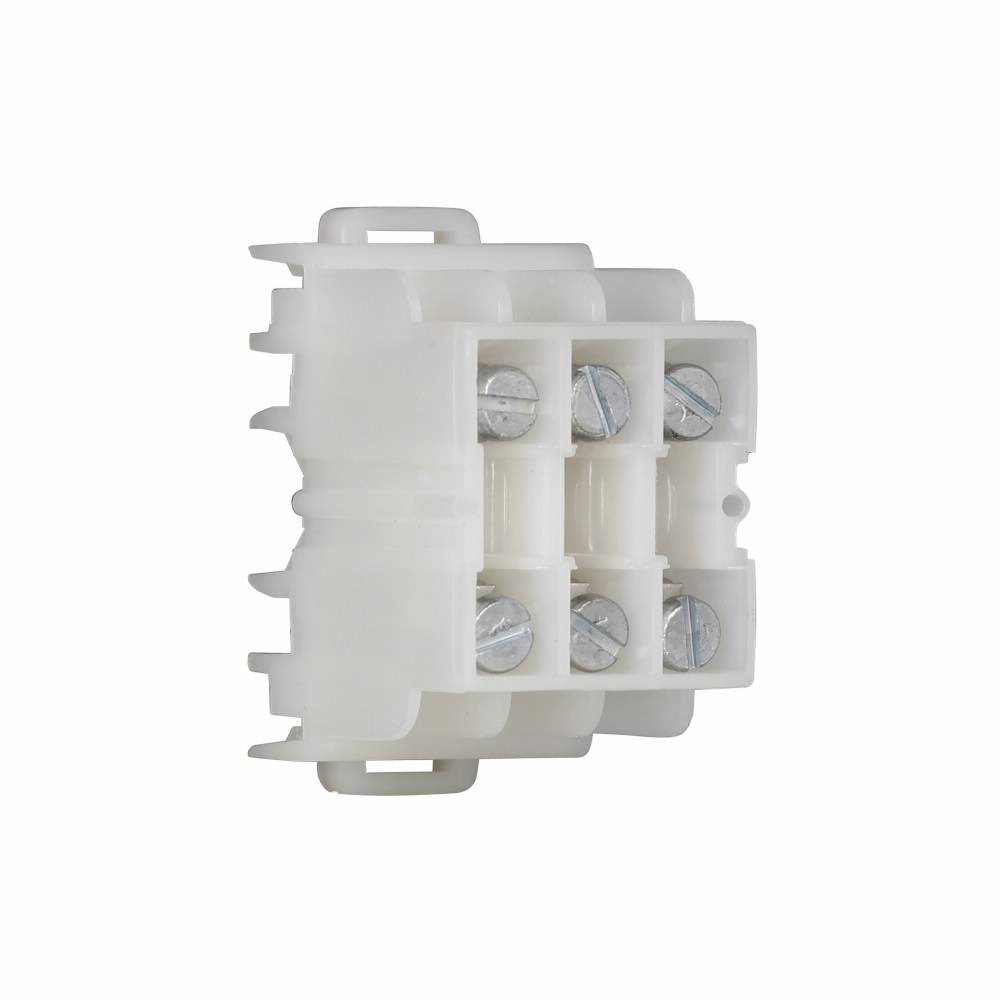

EATON TBDT3 TB Series NEMA Modular Standard Terminal Block, 600 V, 40 A, 22 to 10 AWG Wire, 3 Poles, TMR/TBA/DIN Rail Mount

Short Description

TBA and TBD modular terminal blocks are designed to conserve space, while allowing maximum flexibility and ease of installation. Available as 1, 2 and 3-poles circuits, simple and uniform installation is possible because their design is based on 5/8 in (15.9 mm) modules. Standard blocks are white nylon.

EATON Terminal Block, NEMA Modular Standard, Series: TB Series, 600 V, 40 A, 3 Pole, 22 to 10 AWG Wire, TMR/TBA/DIN Rail Mounting, 212 deg F, Nylon, 1.23 in L x 1.25 in W x 1.3 in H Dimensions
MFG #: TBDT3

EECO #: CHTBDT3

Brand: Eaton
UPC #: 786678859064
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121410
Material
Nylon
Wire Size
22 to 10
Mounting Type
TMR/TBA/DIN Rail
Voltage Rating
600
Temperature Rating
212
Type
NEMA Modular Standard
Series
TB Series
Warranty
1 year
Dimensions
1.23 in L x 1.25 in W x 1.3 in H
Amperage Rating
40
Features
  • Compact design permits mounting 48 to 600 VAC or 90 to 300 VAC terminals per foot
  • Fully shielded construction, 600 VAC spacing
  • Nylon construction provides anti-tracking and impact-resistance
  • Terminal blocks easily snap on or off mounting rails not necessary to disturb adjacent units
  • No end pieces or backing plates are needed when rail mounting
  • Insulated walls of lug guide wire into lug
  • Blocks are shipped with clamping screw backed OUT
  • Constant locking torque keeps terminal screws in position
  • Terminal screws are captive can not be lost in shipment or handling
  • Hardened stainless steel clamping collar eliminates stripped threads
  • Large opening in clamping collar accommodates oversized conductors smallest collar will accept three 14 AWG stranded conductors
