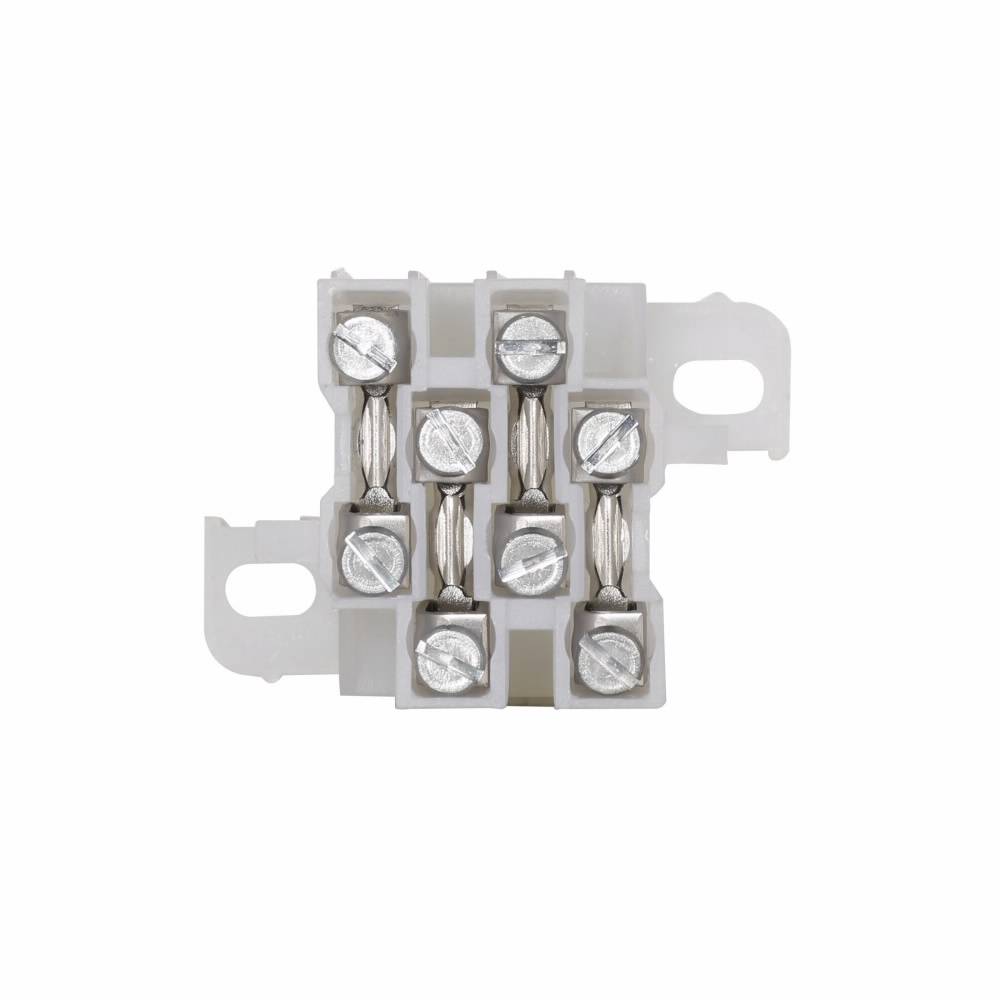

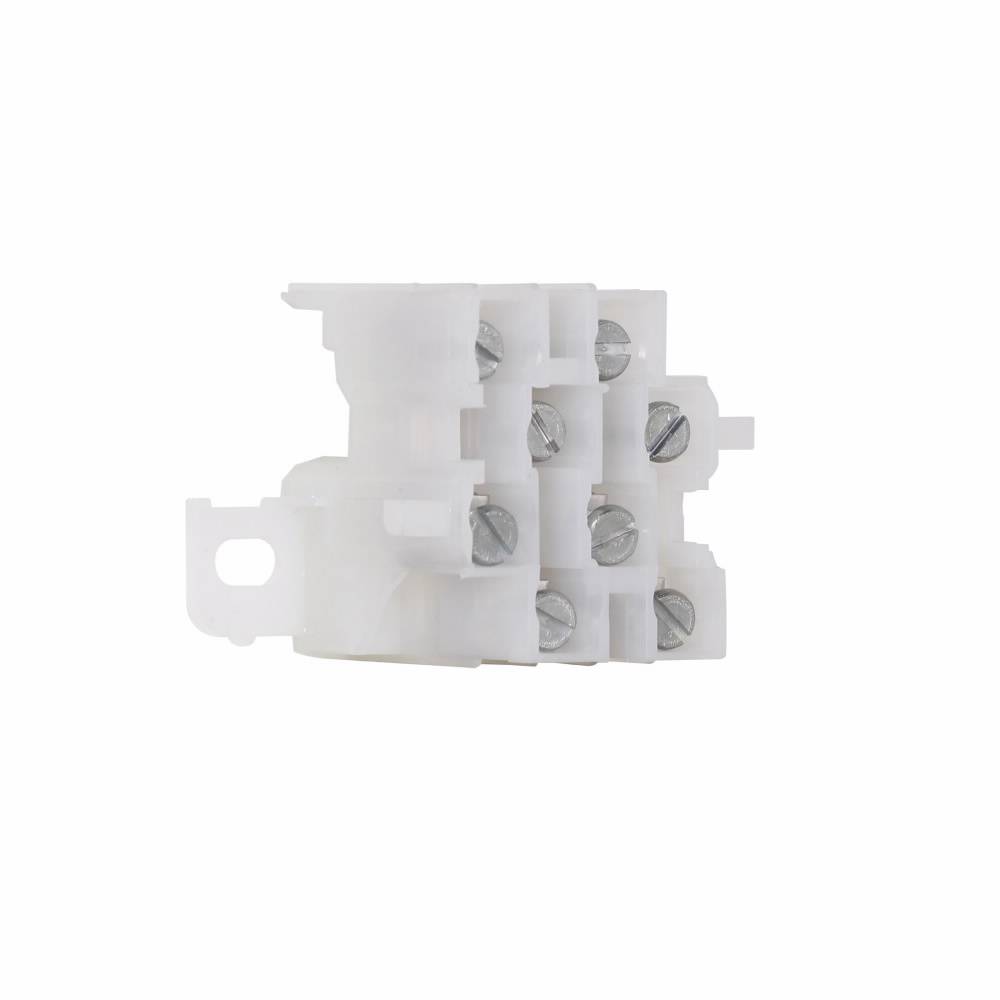

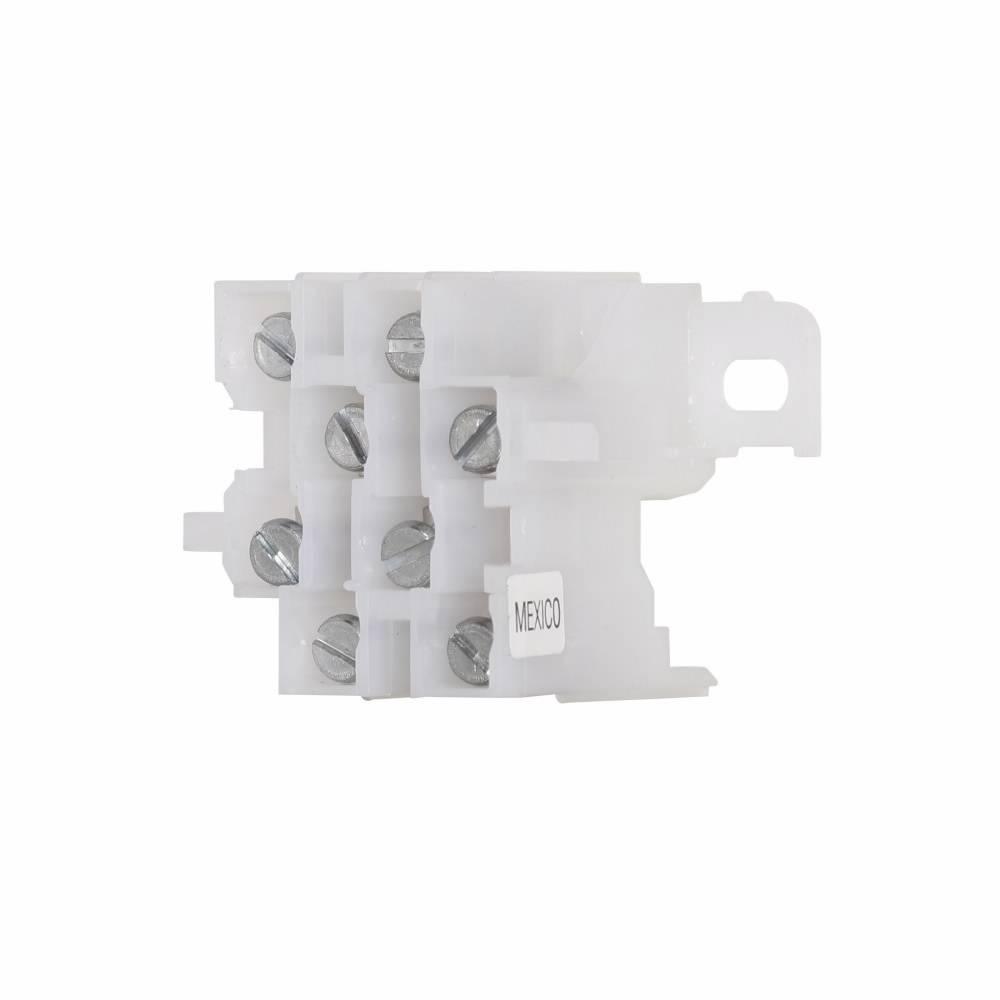

EATON TBBT4 NEMA Modular Miniature Terminal Block With Tang Clamping Collar, 600 V, 30 A, 22 to 10 AWG Wire, 4 Poles, Base Mount

Short Description

TBA and TBD modular terminal blocks are designed to conserve space, while allowing maximum flexibility and ease of installation. Available as 1, 2 and 3-pole circuits, simple and uniform installation is possible because their design is based on 5/8 in (15.9 mm) modules. Standard blocks are white nylon.

EATON Terminal Block, NEMA Modular Miniature, Series: TB Series, 600 V, 30 A, 4 Pole, 22 to 10 AWG Wire, Screw Terminal, Base Mount, 212 deg F, Nylon, 1.3 in L x 0.04 in W x 1.7 in H
MFG #: TBBT4

EECO #: CHTBBT4

Brand: Eaton
UPC #: 786678208749
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121410
Material
Nylon
Wire Size
22 to 10
Mounting Type
Base
Terminal Type
Screw
Voltage Rating
600
Temperature Rating
212
Type
NEMA Modular Miniature
Series
TB Series
Warranty
1 year
Dimensions
1.3 in L x 0.04 in W x 1.7 in H
Amperage Rating
30
Features
  • Compact design permits mounting 48 to 600 VAC or 90 to 300 VAC terminals per foot
  • Fully shielded construction, 600 VAC spacing
  • Nylon construction provides anti-tracking and impact resistance
  • Terminal blocks easily snap-on or off mounting rails not necessary to disturb adjacent units
  • No end pieces or backing plates are needed when rail mounting
  • Insulated walls of lug guide wire into lug
  • Blocks are shipped with clamping screw backed out
  • Constant locking torque keeps terminal screws in position
  • Terminal screws are captive can not be lost in shipment or handling
  • Hardened stainless steel clamping collar eliminates stripped threads
  • Large opening in clamping collar accommodates oversized conductors smallest collar will accept three 14 AWG stranded conductors
