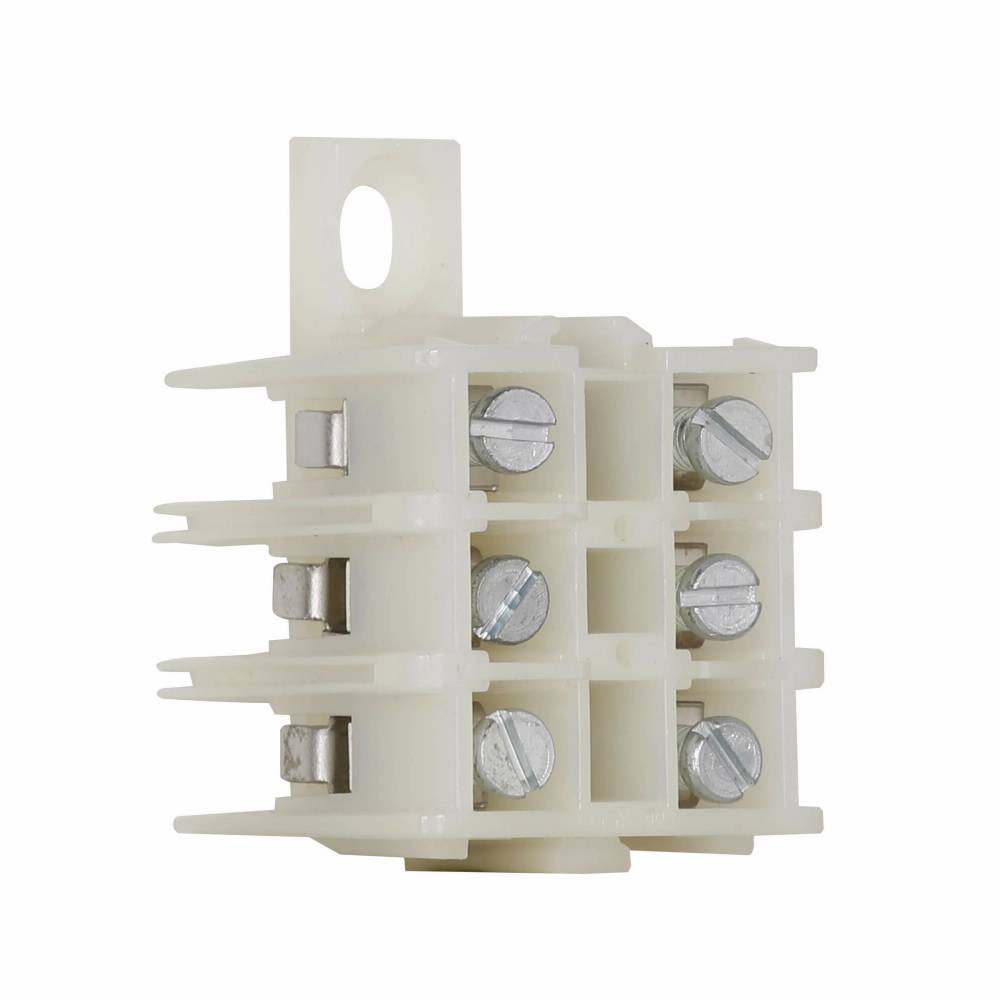

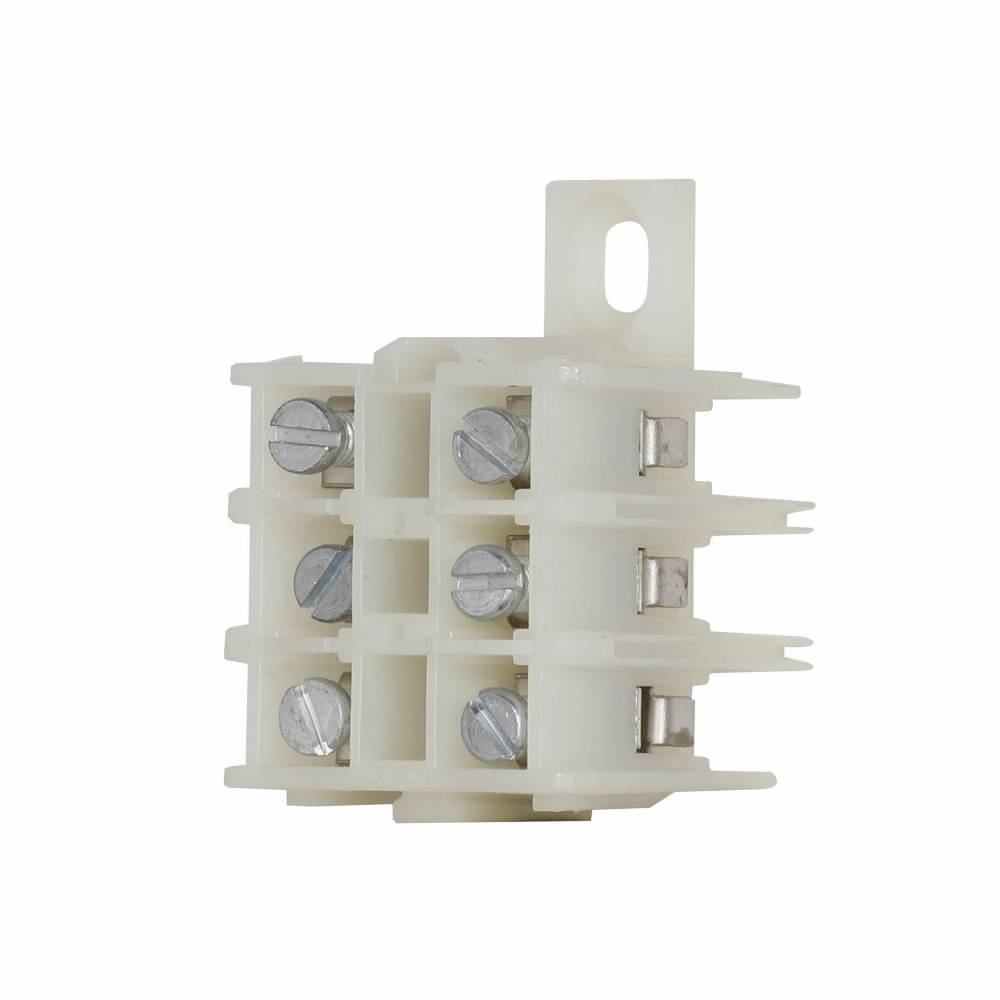

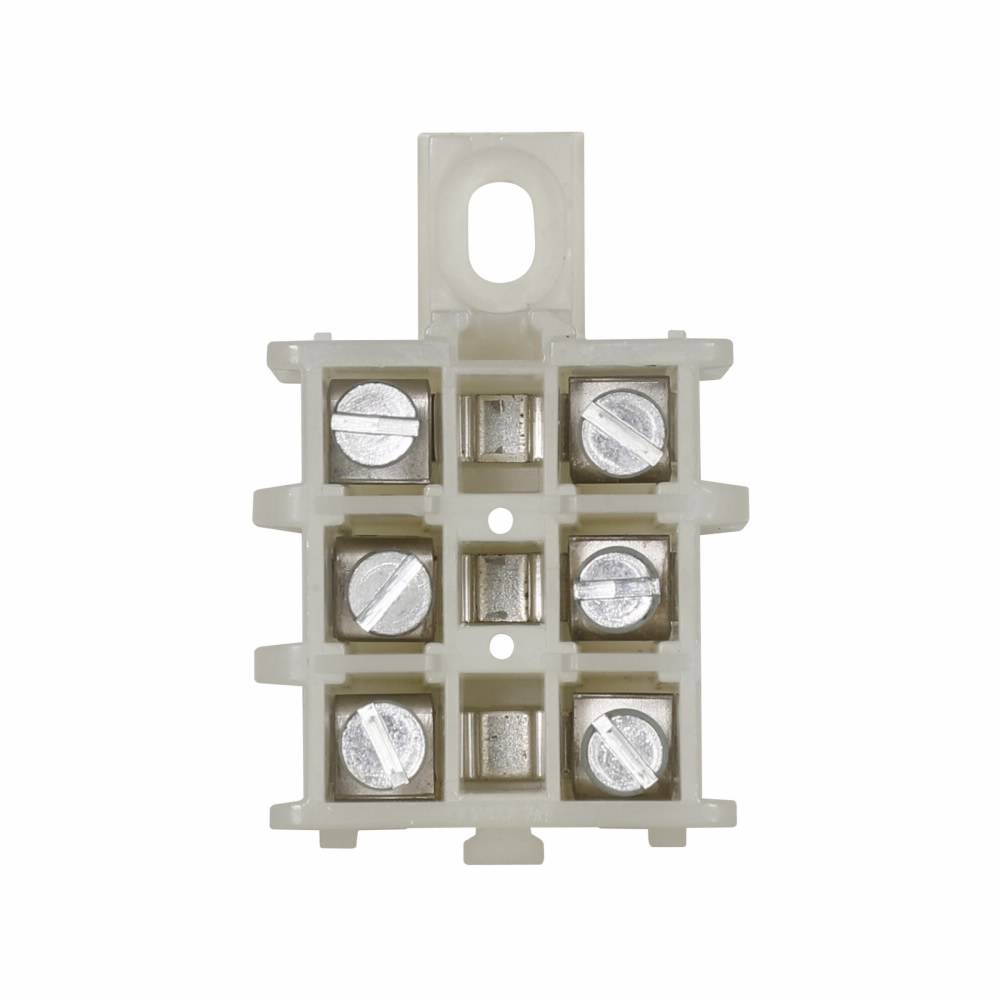

EATON TBABT3 NEMA Modular Standard Terminal Block, 600 V, 40 A, 22 to 8 AWG Wire, 3 Poles, Base Mount

Short Description

TBA and TBD modular terminal blocks are designed to conserve space, while allowing maximum flexibility and ease of installation. Available as 1, 2 and 3-pole circuits, simple and uniform installation is possible because their design is based on 5/8 in (15.9 mm) modules. Standard blocks are white nylon.

EATON Terminal Block, NEMA Modular Standard, Series: TB Series, 600 V, 40 A, 3 Pole, 22 to 8 AWG Wire, Screw Terminal, 20 lb-in, Base Mount, 212 deg F, Nylon, 2.47 in L x 1.19 in W x 1.25 in H
MFG #: TBABT3

EECO #: CHTBABT3

Brand: Eaton
UPC #: 786678890203
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121410
Material
Nylon
Wire Size
22 to 8
Mounting Type
Base
Terminal Type
Screw
Torque Rating
20
Voltage Rating
600
Temperature Rating
212
Type
NEMA Modular Standard
Series
TB Series
Warranty
1 year
Dimensions
2.47 in L x 1.19 in W x 1.25 in H
Amperage Rating
40
Features
  • Compact design permits mounting 48 to 600 VAC or 90 to 300 VAC terminals per foot
  • Fully shielded construction, 600 VAC spacing
  • Nylon construction provides anti-tracking and impact resistance
  • Terminal blocks easily snap-on or off mounting rails not necessary to disturb adjacent units
  • No end pieces or backing plates are needed when rail mounting
  • Insulated walls of lug guide wire into lug
  • Blocks are shipped with clamping screw backed out
  • Constant locking torque keeps terminal screws in position
  • Terminal screws are captive can not be lost in shipment or handling
  • Hardened stainless steel clamping collar eliminates stripped threads
  • Large opening in clamping collar accommodates oversized conductors smallest collar will accept three 14 AWG stranded conductors
