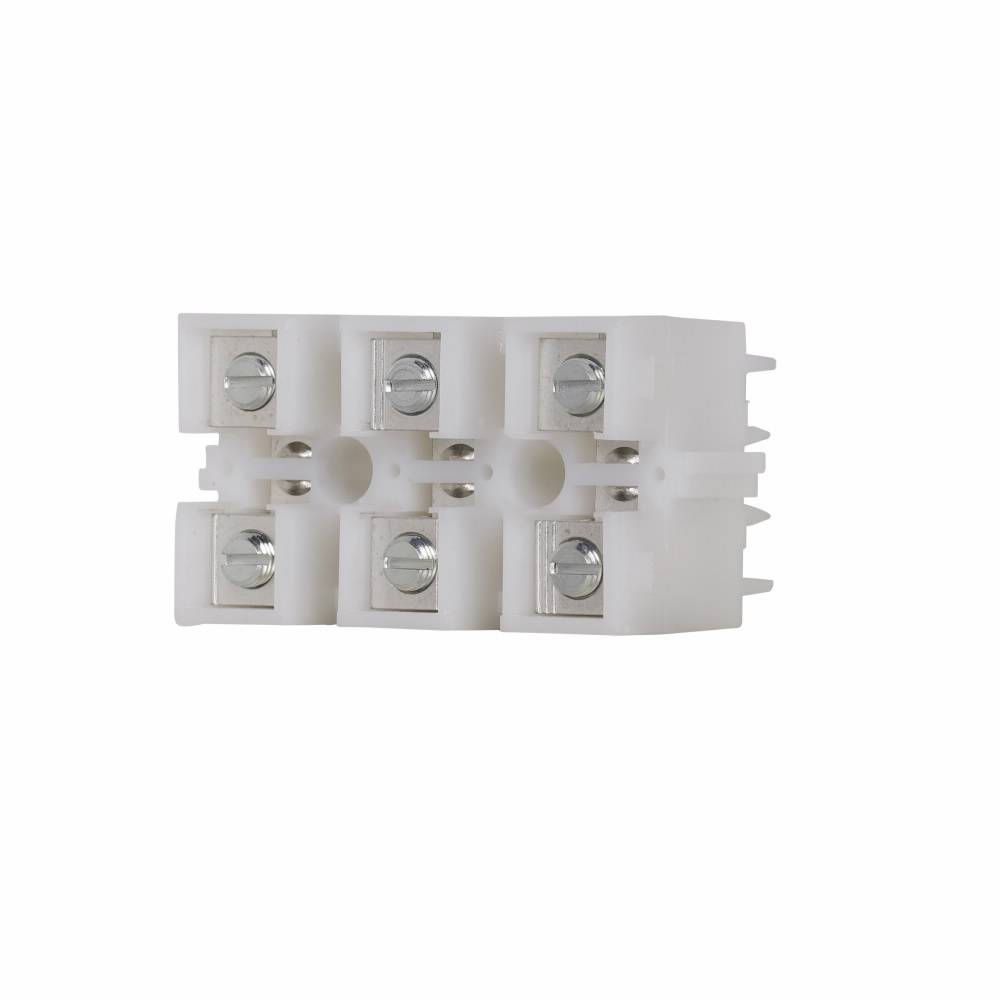

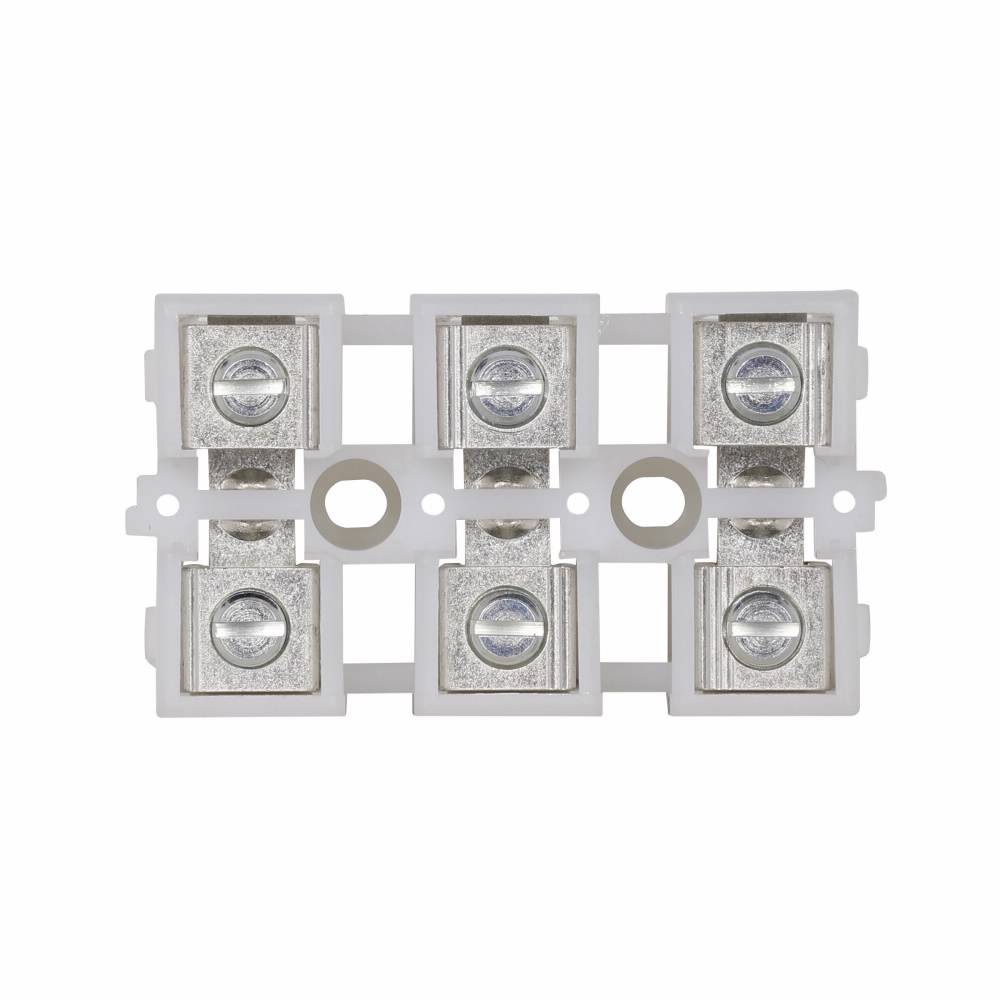

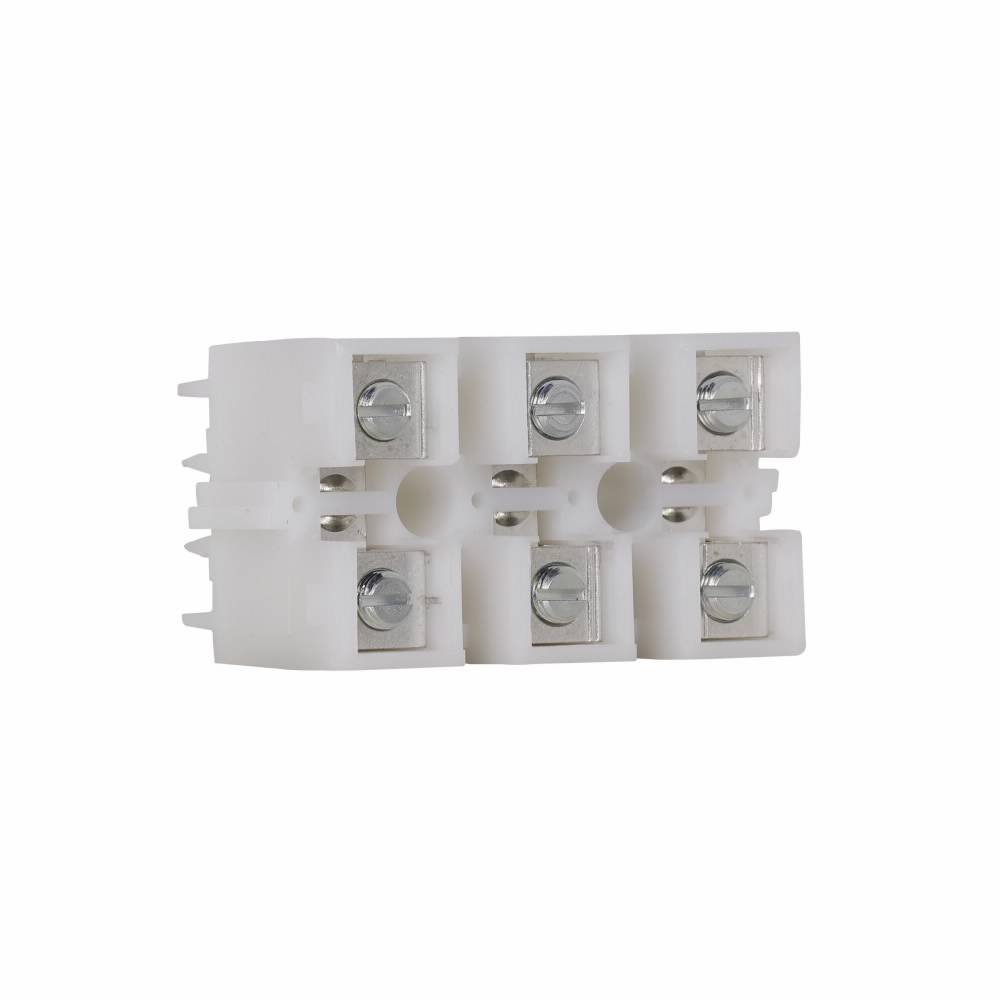

EATON TBA100 NEMA Modular High Current Terminal Block, 600 V, 175 A, 14 to 2/0 AWG Wire, 3 Poles, Base/TBA Rail Mount

Short Description

TBA and TBD modular terminal blocks are designed to conserve space, while allowing maximum flexibility and ease of installation. Available as 1, 2 and 3-pole circuits, simple and uniform installation is possible because their design is based on 5/8 in (15.9 mm) modules. Standard blocks are white nylon.

EATON Terminal Block, NEMA Modular High Current, Series: TB Series, 600 V, 175 A, 3 Pole, 14 to 2/0 AWG Wire, 50 lb-in, Base/TBA Rail Mount, 212 deg F, Nylon, 1.75 in L x 3.13 in W x 1.53 in H
MFG #: TBA100

EECO #: CHTBA100

Brand: Eaton
UPC #: 786678674087
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121410
Material
Nylon
Wire Size
14 to 2/0
Mounting Type
Base/TBA Rail
Torque Rating
50
Voltage Rating
600
Temperature Rating
212
Type
NEMA Modular High Current
Series
TB Series
Warranty
1 year
Dimensions
1.75 in L x 3.13 in W x 1.53 in H
Amperage Rating
175
Features
  • Compact design permits mounting 48 to 600 VAC or 90 to 300 VAC terminals per foot
  • Fully shielded construction, 600 VAC spacing
  • Nylon construction provides anti-tracking and impact resistance
  • Terminal blocks easily snap-on or off mounting rails not necessary to disturb adjacent units
  • No end pieces or backing plates are needed when rail mounting
  • Insulated walls of lug guide wire into lug
  • Blocks are shipped with clamping screw backed out
  • Constant locking torque keeps terminal screws in position
  • Terminal screws are captive can not be lost in shipment or handling
  • Hardened stainless steel clamping collar eliminates stripped threads
  • Large opening in clamping collar accommodates oversized conductors smallest collar will accept three 14 AWG stranded conductors
