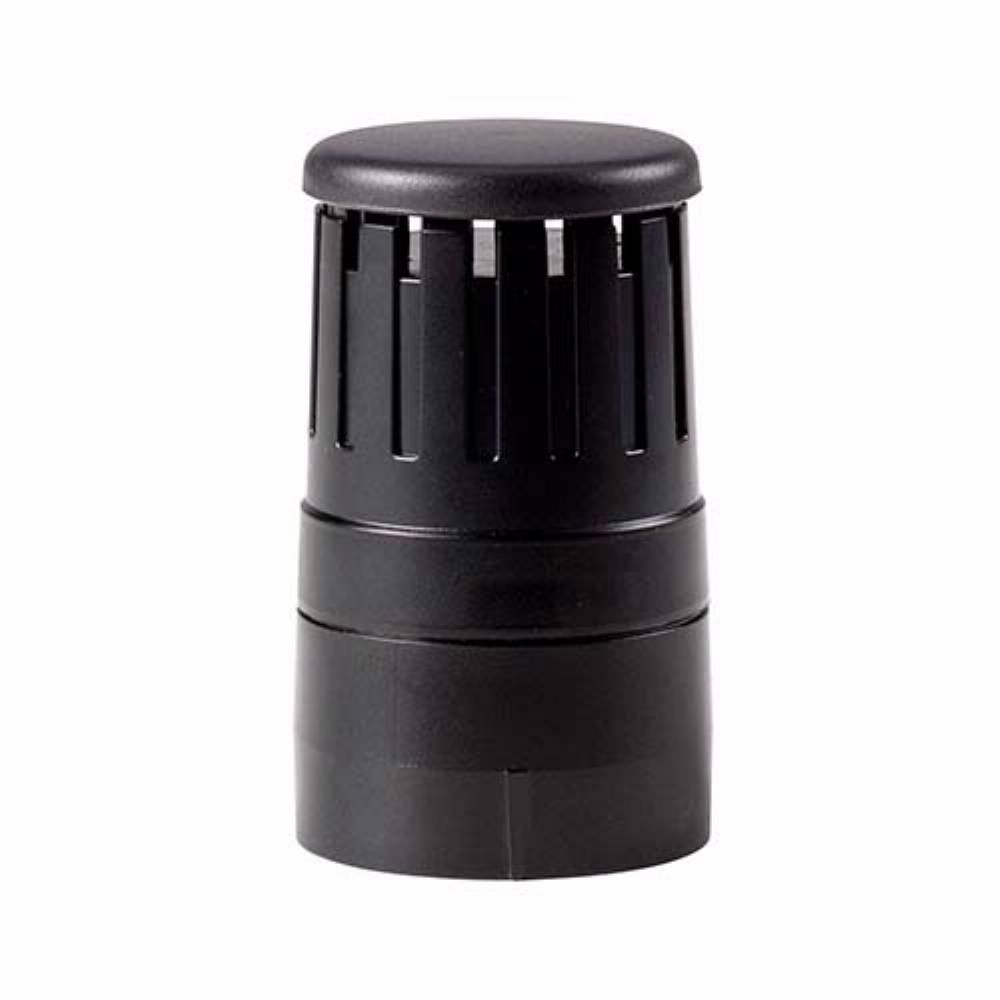

EATON SL4-AP24 Stacklight Acoustic Module With LED, 24 VAC/VDC, 40 mm Dia, Black

Short Description

The new EATON SL7 and SL4 stacklights provide reliable control over all key processes and machine availability. Now available in two sizes, 70 mm (SL7) and 40 mm (SL4), the new stacklights are engineered to keep you informed about potential material requirements, downtime and hazards. Modules are available in a wide selection of audible, illuminating and mounting options that are well suited to adapt to any industrial application.

EATON Stacklight Acoustic Module, Series: SL4, 24 VAC/VDC, 39 A, 40 mm Dia, Black, 100000 hr Average Life, 4/4X/13/IP66, -22 to 140 deg F, Polycarbonate

MFG #: SL4-AP24

EECO #: CHSL4AP24

Brand: Eaton
UPC #: 015081679083
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121534
Approval
UL 508, UL (Canada and US), CSA C22.2, CE
Material
Polycarbonate
Lens Color
Black
Application
For indoor/outdoor use
Lens Material
Polycarbonate
Voltage Rating
24
Enclosure
UL Type 4/4X/13, IP66
Temperature Rating
-22 to 140
Size
1.73 Inch Diameter x 2.8 Inch Height
Type
Continuous Light
Series
SL4
Diameter
40
Amperage Rating
39
Features
  • Six lens colors are red, amber, yellow, green, blue and white
  • Continuous, flashing, strobe and multi-strobe lighting functions
  • Mono-tone, dual-tone and multi-tone audible alarms
  • Control up to five modules on a single stack, 10 with dual-arm base
  • Simplified twist-and-lock assembly, no tools required
  • Compact components reduce inventory requirements and increase flexibility
  • Versatile hardware for quick installation and minimized downtime
  • New slim 40 mm size is ideal for applications with constrained space
  • Lean automation with SmartWire-DT connectivity
  • All elements have IP66 and UL Type 4/4X/13 ratings for protection against strong jets of water
  • High-performance LEDs for maximum illumination in direct sunlight
  • Acoustic modules with up to 100 dB sound levels
  • Easily configurable components
  • Simple bayonet mounting mechanism for quick assembly
  • Volume-adjustable alarms
  • Adjustable with internal DIP switches
  • Sound pressure 80 dB, adjustable with internal potentiometer
  • Continuous tone
