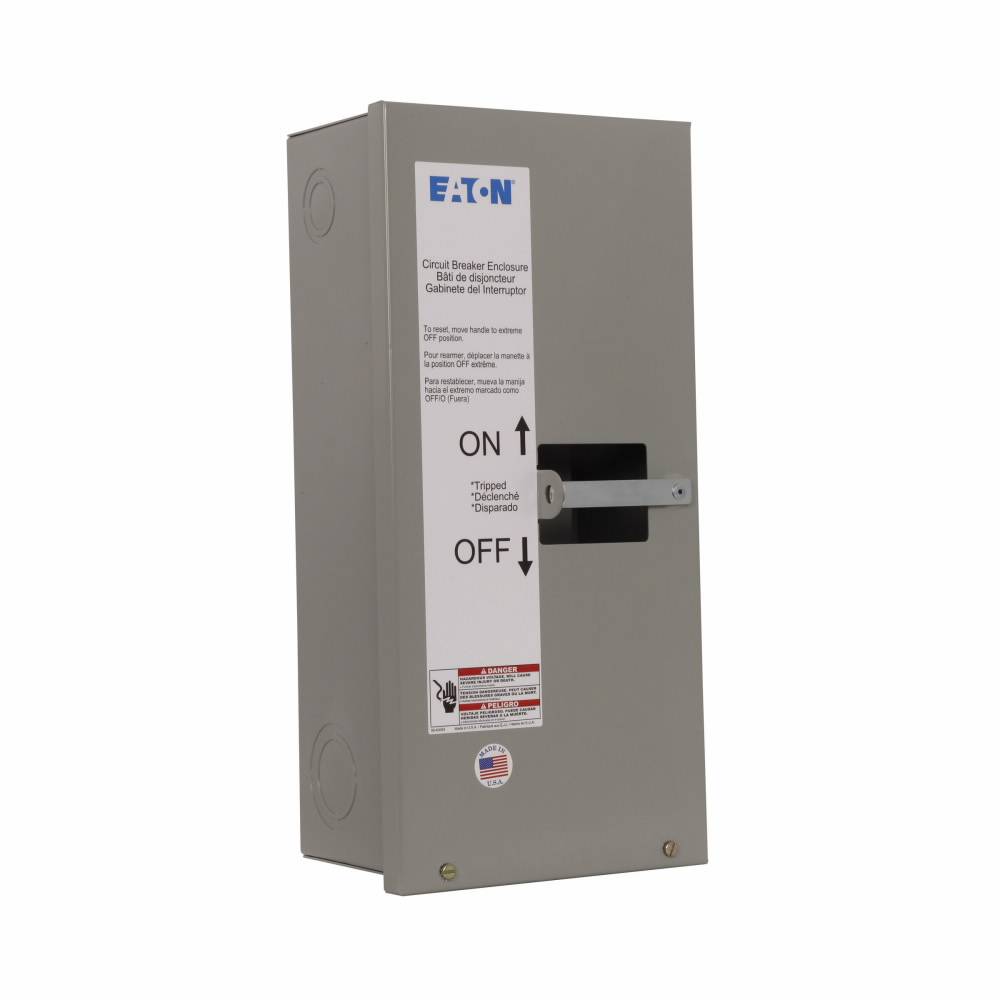

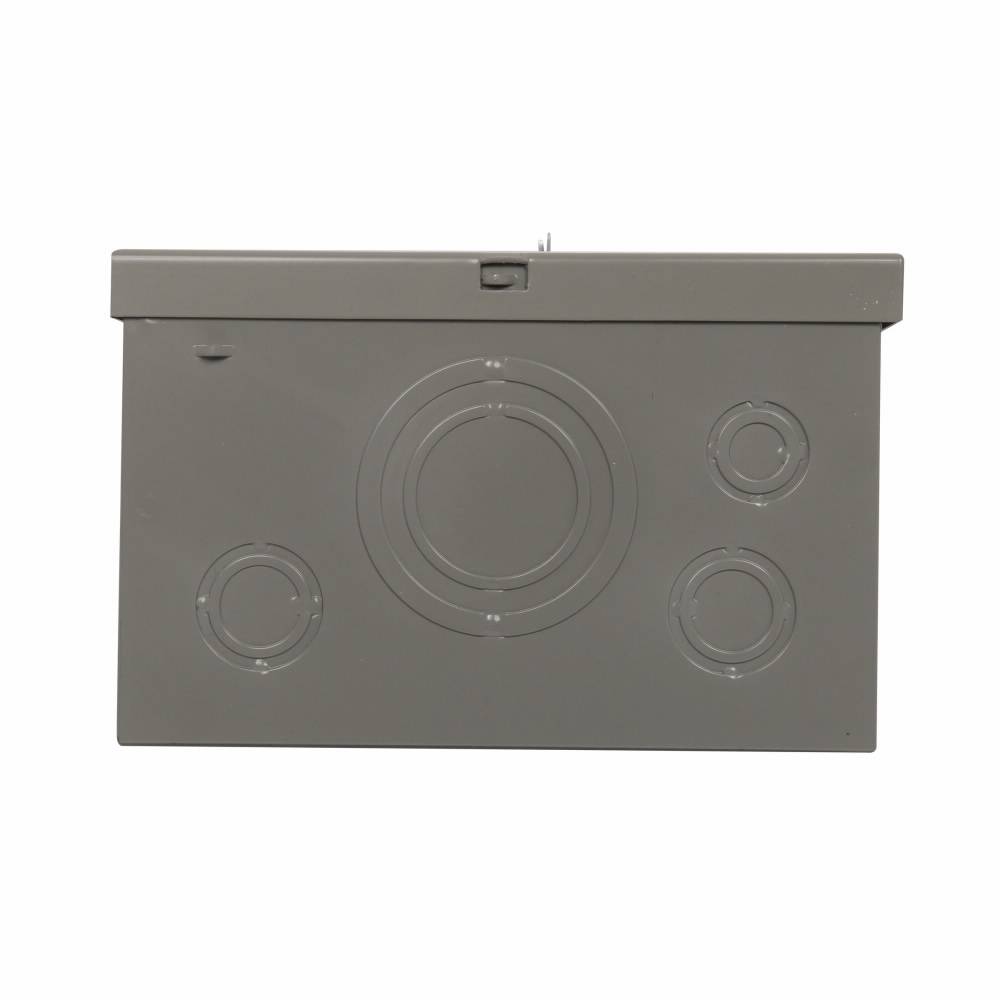

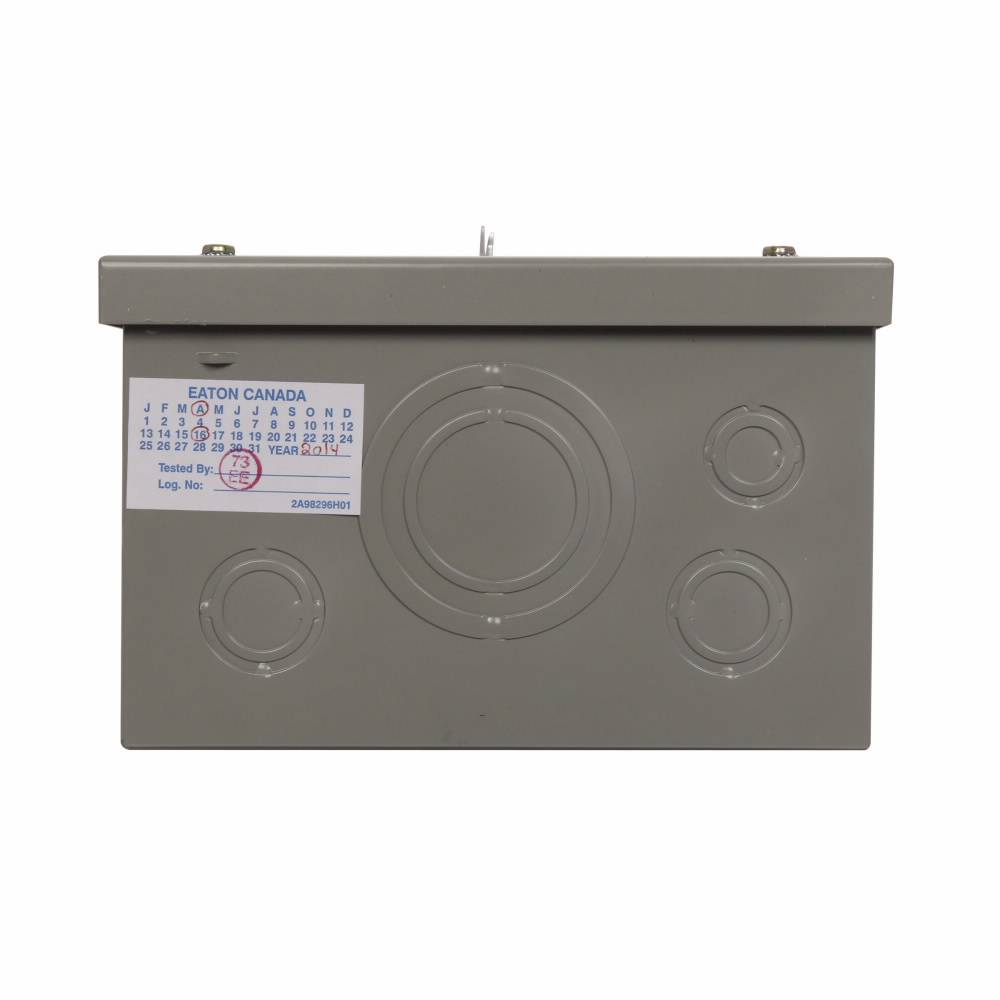

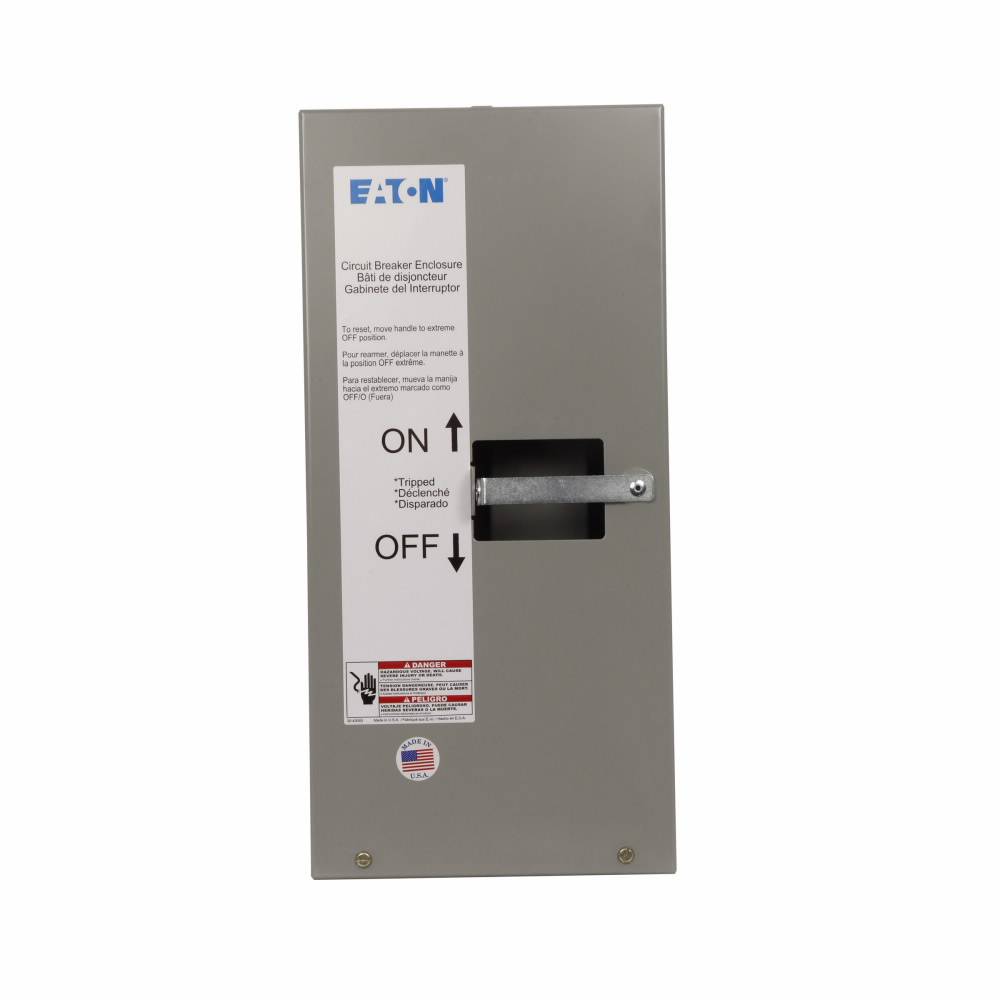

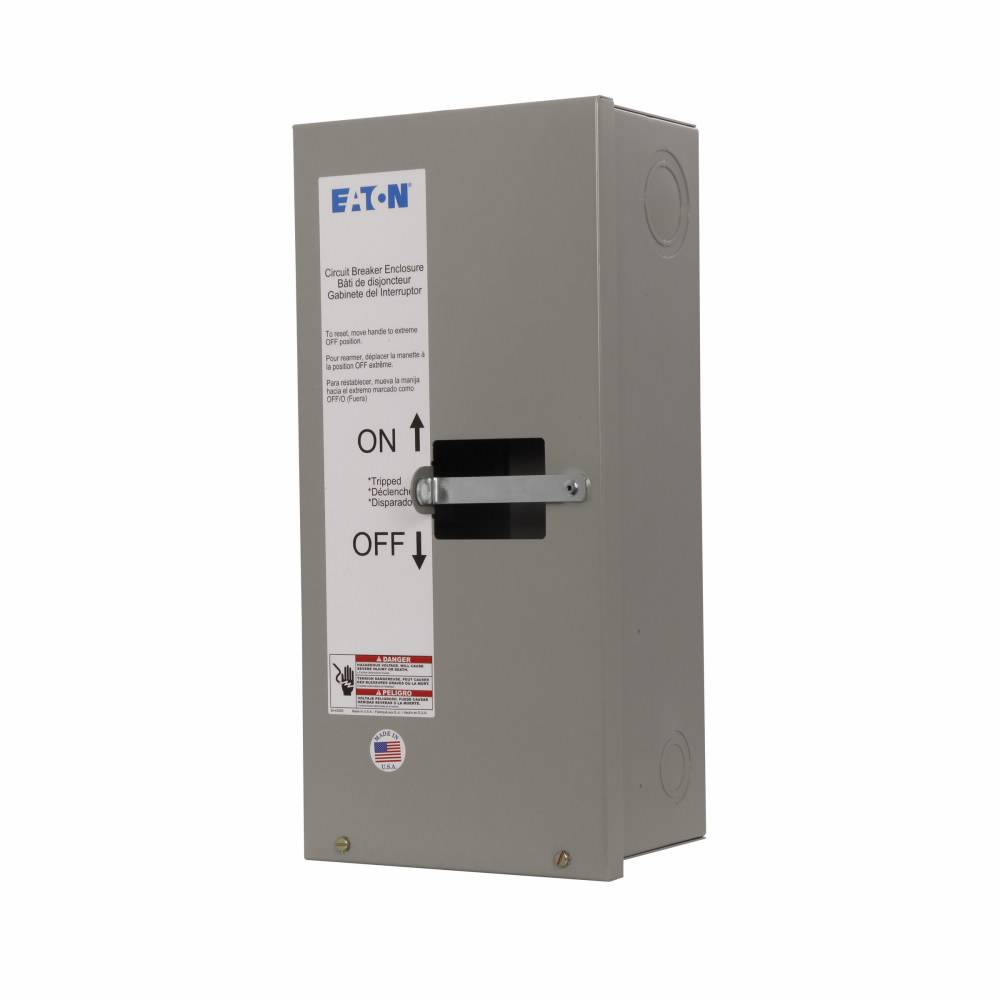

EATON SGDN100 C Series Circuit Breaker Enclosure With Knockout, 6.28 in L x 8.56 in W x 17-1/2 in H, NEMA 1 NEMA Rating, Steel

Short Description

Eaton enclosed circuit breakers offer all the advantages and accessories of a circuit breaker packaged in an enclosure for nearly any application requiring a means of disconnect.

EATON Circuit Breaker Enclosure, Series: C Series, 6.28 in Length, 8.56 in Width, 17-1/2 in Height, NEMA 1 NEMA Rating, GHC/GD Frame, 2/3 Pole, Lock: Padlock, 15 to 100 A, 600 VAC/500 VDC Electrical Rating, Surface Mounting, Steel
MFG #: SGDN100

EECO #: CHSGDN100

Brand: Eaton
UPC #: 782114345443
Attributes
Features
Documents
Product Information
Attributes
Frame
GHC/GD
Length
6.28
UNSPSC
39121318
Material
Steel
Application
Electrical Assemblies, Panels and Eoem, Electrical Assemblies, Panels and Eoems Applications
Mounting Type
Surface
Width
8.56
Height
17-1/2
Series
C Series
Features
  • The breaker is front operable and is capable of being padlocked in the OFF position
  • Suitable for use with 1-pole breaker base mounting plate kit
  • Total width, including door clip is 9.95 in
  • Single centered mounting hole provided
