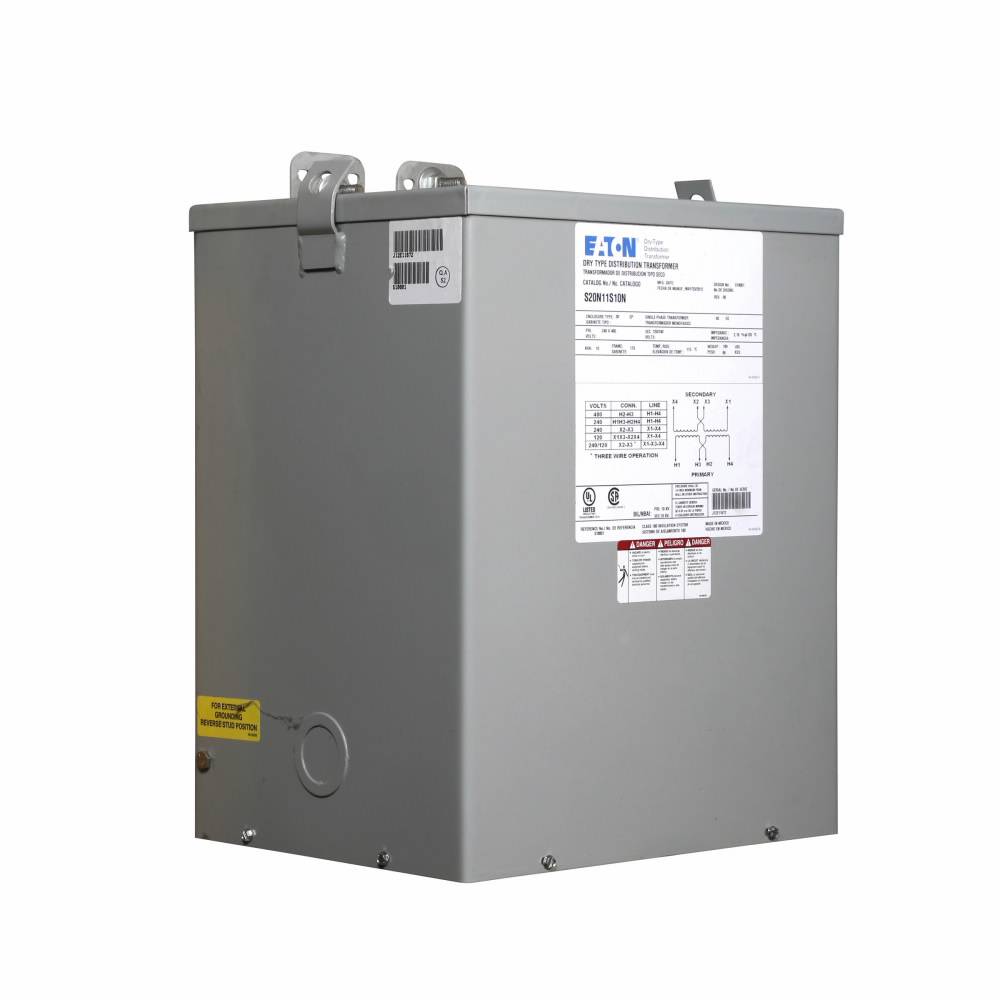

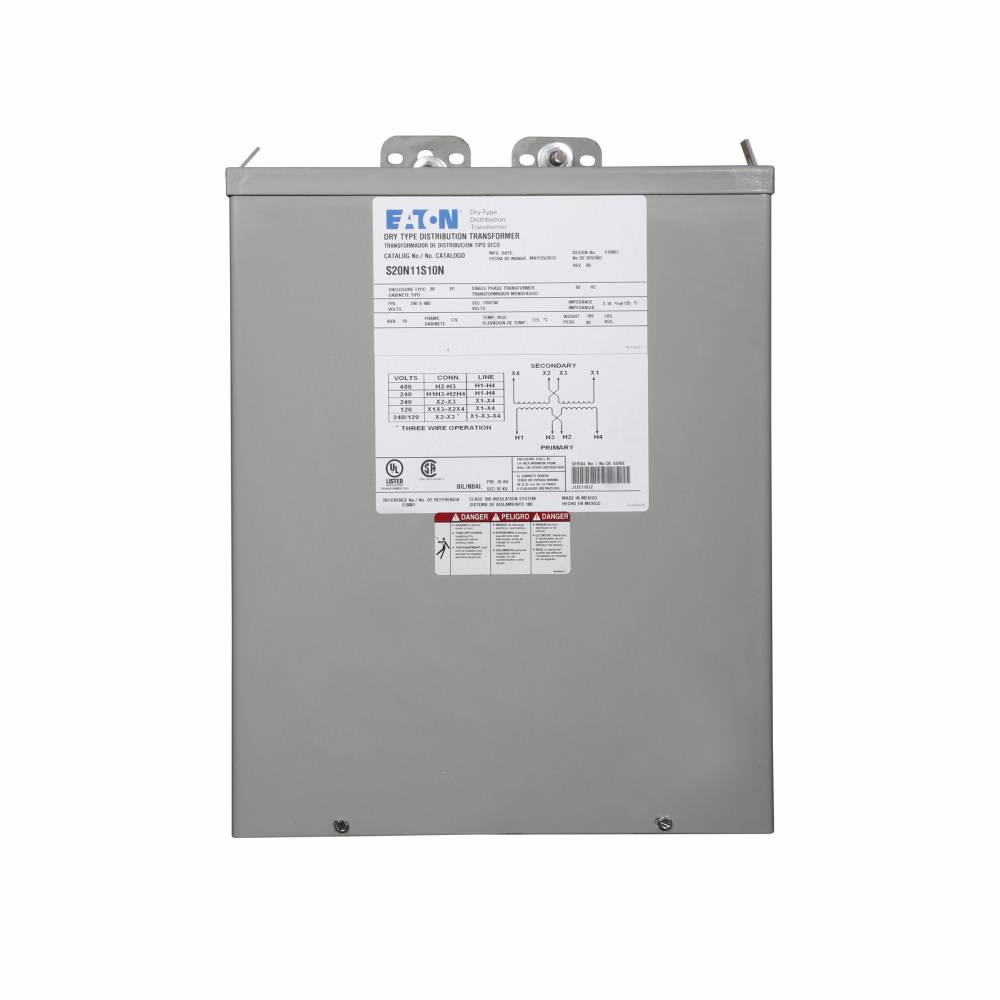

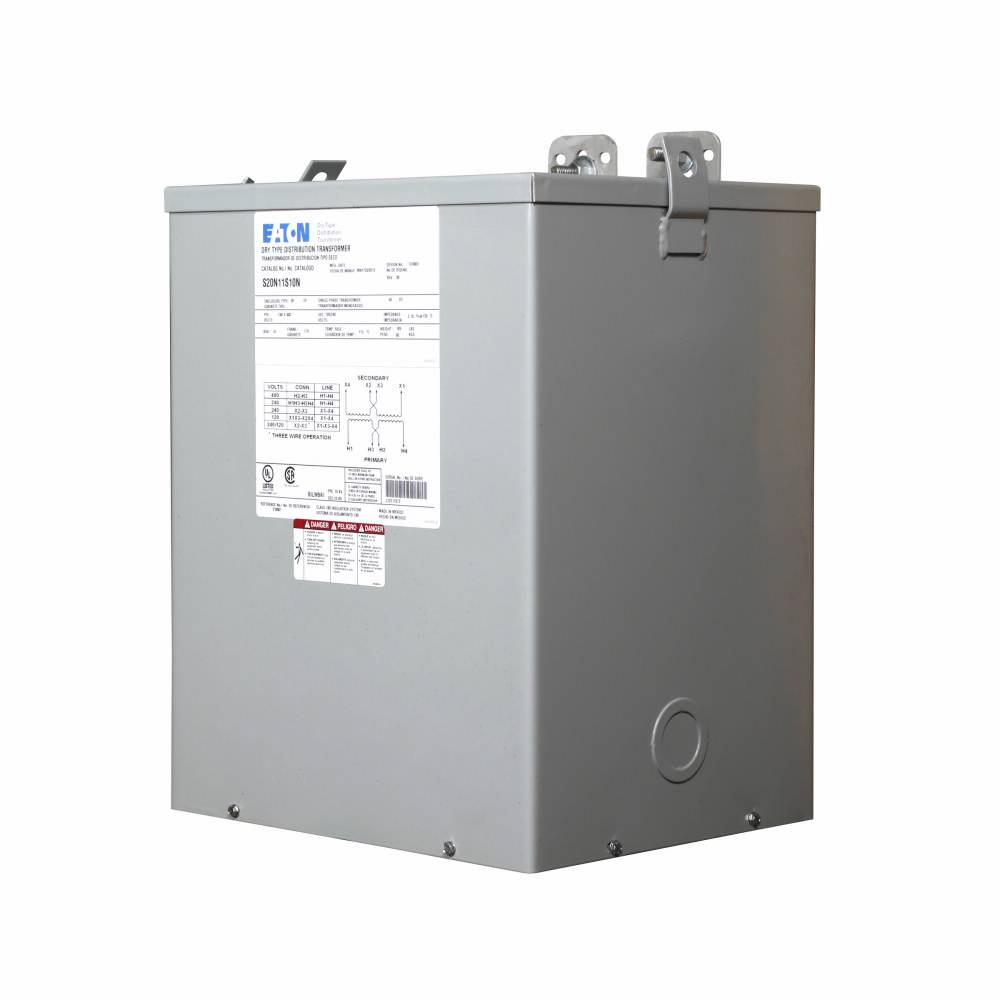

EATON S20N11S15N Type EP Encapsulated Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 15 kVA Power Rating, 60 Hz, 1 ph Phase

Short Description

EATON EP (1-ph) and EPT (1-ph) general purpose encapsulated dry type transformers are of the two winding type, encapsulated (potted) in a mix of epoxy coated sand and gravel and are available in a wide variety of primary and secondary voltage combinations. General purpose encapsulated transformers are designed, manufactured and tested in accordance with all of the latest applicable ANSI, NEMA and IEEE standards and are designed for continuous operation at rated kVA.

EATON Distribution Transformer, Type EP Encapsulated, 240/480 VAC Primary, 120/240 VAC Secondary, 15 kVA Power, 60 Hz Frequency, 1 ph, Lug Connection, 180 Frame Circuit, Upright Mounting, 220 deg C Insulation, NEMA 3R Enclosure, 115 deg C, Steel Housing Material, 10.52 in L x 13.38 in W x 19 in H Dimensions

MFG #: S20N11S15N

EECO #: CHS20N11S15N

Brand: Eaton
UPC #: 786680103551
Attributes
Features
Documents
Product Information
Attributes
Phase
1
UNSPSC
39121027
Approval
UL, CSA
Application
General Purpose, Power Distribution, Indoor and Outdoor Applications
Circuit Type
180 Frame
Construction
Encapsulated
Power Rating
15
Winding Type
Aluminum
Mounting Type
Upright
Enclosure Type
NEMA 3R
Connection Type
Lug
Frequency Rating
60
Housing Material
Steel
Number of Phases
1
Temperature Rise
115 Deg C
Enclosure
NEMA 3R
Temperature Rating
115
Size
13.38 Inch Width x 10.52 Inch Depth x 19 Inch Height
Type
Type EP Encapsulated
Weight
216 Pound
Warranty
1 year
Dimensions
10.52 in L x 13.38 in W x 19 in H
Primary Voltage
240/480
Type Designation
EP
Secondary Voltage
120/240
Features
  • Encapsulated transformers are specifically excluded from the scope of us DOE energy efficiency requirements
  • Cores are grounded with a copper lead
  • Short term overload capability as required by ANSI
  • Aluminum windings
  • No taps
