EATON PXDBL00000-2B1-AA Enclosed Meter, 480 V

Short Description

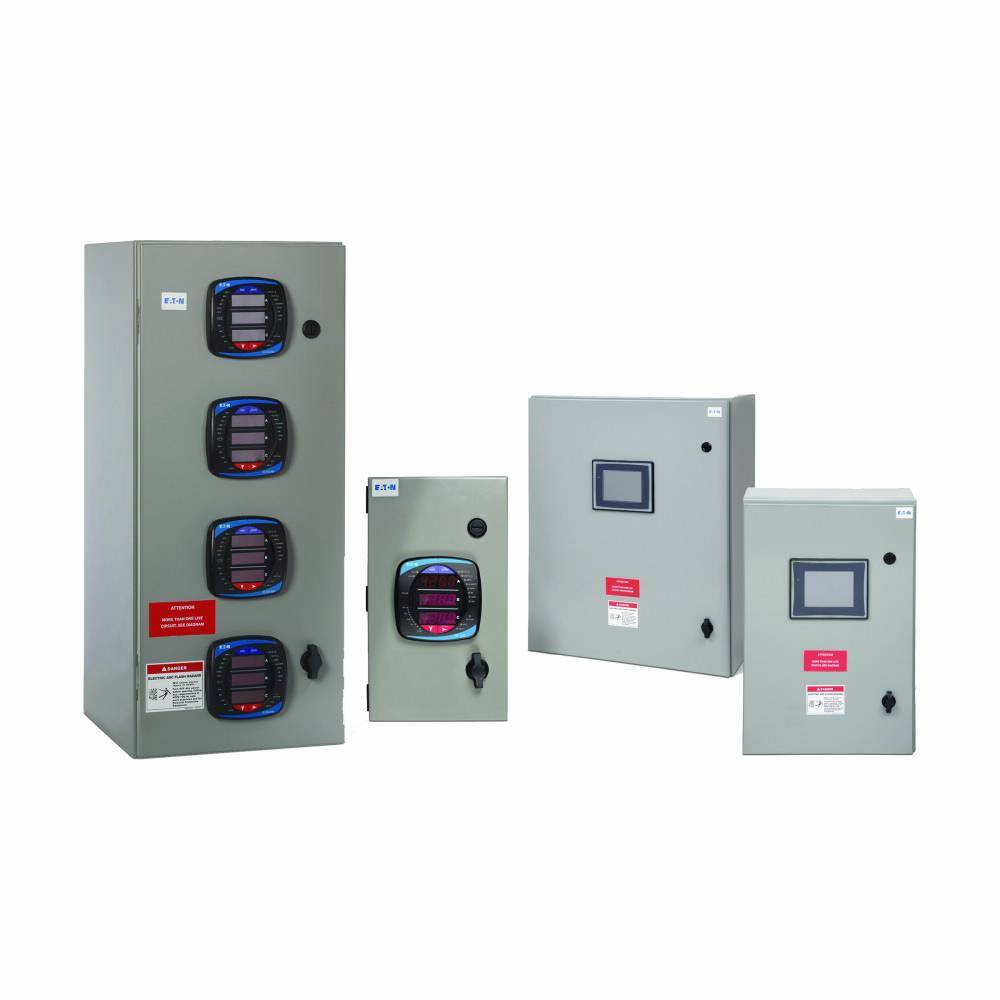

Eaton’s enclosed energy meters provide a complete electric metering and data acquisition solution in a single enclosure. The single or multi-meter solution offers mounting and installation flexibility in retrofit applications where no metering compartment or mounting space is available or where installation time is a premium. Eaton’s enclosed meter line offers savings in labor and installation costs because input current and voltage wiring, as well as I/O wiring, is prewired to terminal blocks inside the enclosure.

EATON, PXDBL00000-2B1-AA, Enclosed Meter, 480 V, 12 in H x 8.18 in W x 10 in L Dimensions
MFG #: PXDBL00000-2B1-AA

EECO #: CHPXDBL000002B1AA

Brand: Eaton
UPC #: 786689646646
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121106
Application
For Electrical Assemblies, Panels and EOEMs
Voltage Rating
480
Dimensions
12 in H x 8.18 in W x 10 in L
Features
  • Only one part number to order creates no need to worry that any part has been left out
  • Current transformer inputs for the meter are wired directly to shorting terminal blocks for easy field installation
  • Primary fusible disconnect for line voltage that can be turned off during meter maintenance to ensure safety
  • Factory wired products save on installation time and costs
  • Internal gaskets prevent air irritants from harming the vital equipment inside
  • Available with the IQ 130/140/150, IQ 250/260, and Power Xpert Meter 2000 Series
  • Preconfigured Power Xpert Gateway 200E with four Eaton meters
  • Semi-flush (NEMA 12) mounted meters on the enclosure door
  • Hinged front opening door
  • Pre-wired neutral and ground terminal blocks
  • Fused disconnect for line voltage
  • Internal meter fusing
  • Pre-wired current transformer shorting terminal block
  • Padlocking latch provision
