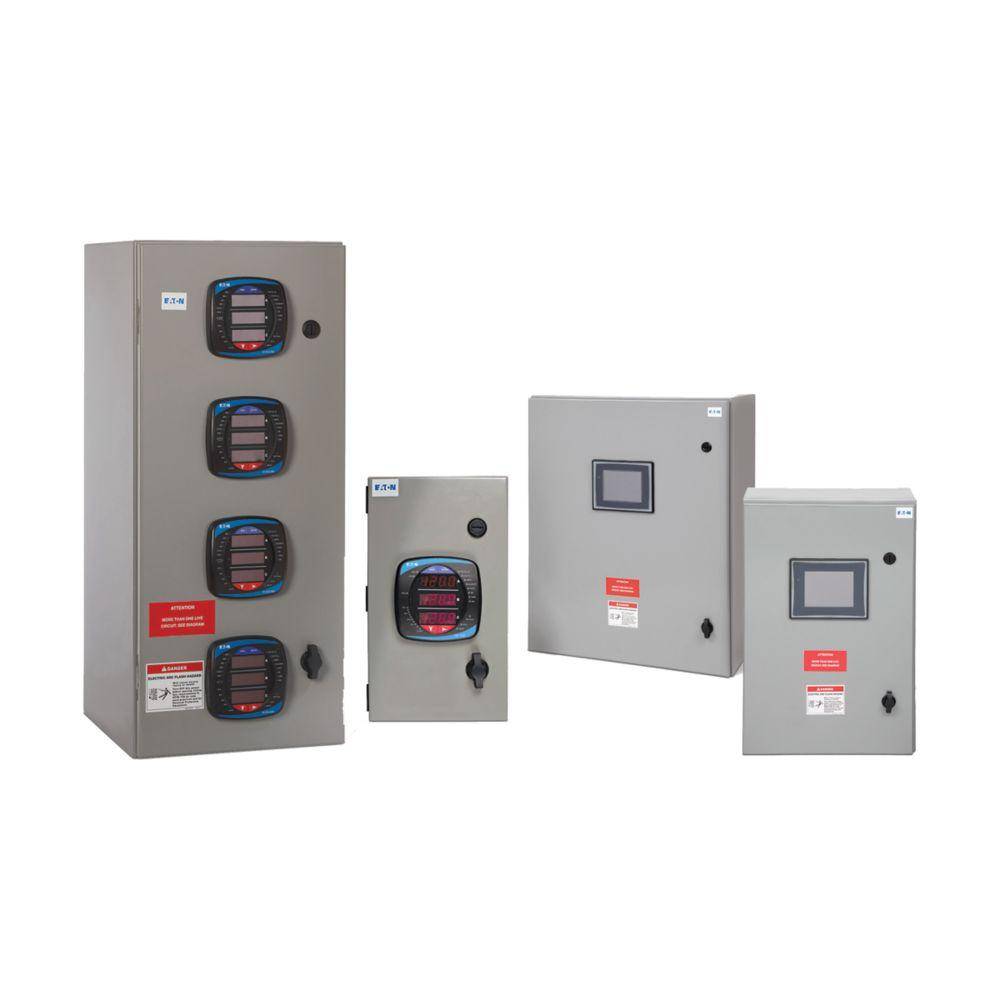

EATON PXBCM-MBB-2D3V-DA PXBCM Enclosed Meter, 277 V, 333 mA
Share Share Print Print
Eaton

EATON PXBCM-MBB-2D3V-DA PXBCM Enclosed Meter, 277 V, 333 mA

Short Description

Eaton’s enclosed energy meters provide a complete electric metering and data acquisition solution in a single enclosure. The single or multi-meter solution offers mounting and installation flexibility in retrofit applications where no metering compartment or mounting space is available or where installation time is a premium. Eaton’s enclosed meter line offers savings in labor and installation costs because input current and voltage wiring, as well as I/O wiring, is prewired to terminal blocks inside the enclosure.

EATON, PXBCM-MBB-2D3V-DA, Enclosed Meter, Series: PXBCM, 277 V, 333 mA, -20 to 70 deg C Operating, 24 in H x 24 in W x 12 in D Dimensions
MFG #: PXBCM-MBB-2D3V-DA

EECO #: CHPXBCMMBB2D3VDA

Brand: Eaton
UPC #: 786689397401
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121106
Application
For Electrical Assemblies, Panels and EOEMs Applications
Voltage Rating
277
Operating Temperature
-20 to 70
Series
PXBCM
Dimensions
24 in H x 24 in W x 12 in D
Amperage Rating
333
Features
  • Only one part number to order creates no need to worry that any part has been left out
  • Current transformer inputs for the meter are wired directly to shorting terminal blocks for easy field installation
  • Primary fusible disconnect for line voltage that can be turned off during meter maintenance to ensure safety
  • Factory wired products save on installation time and costs
  • Internal gaskets prevent air irritants from harming the vital equipment inside
  • Available with many Power Xpert Meter series offerings, including single point (PXM350, PXM1000, PXM2000), multi-point (PXMP, PXBCM), and other products
  • Preconfigured Power Xpert Gateway 200E with four Eaton meters
  • Semi-flush (NEMA 12) mounted meters on the enclosure door
  • Hinged front opening door
  • Pre-wired neutral and ground terminal blocks
  • Internal meter fusing
  • 480V rated power voltage terminal block and wiring
  • Padlocking latch provision
Eaton_PXBCM_MBB_2D3V_DA_Specification_Sheet
Eaton_PXBCM_MBB_2D3V_DA_User_Manual
